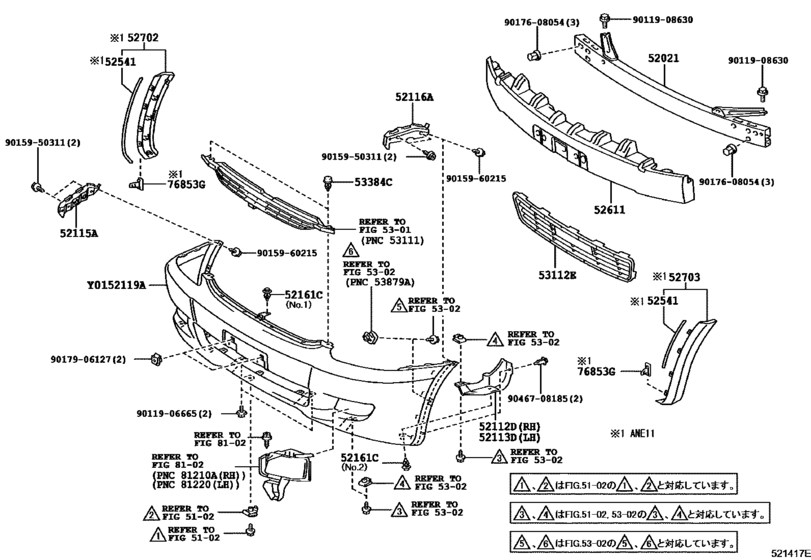

Front Bumper & Bumper Stay ([08.2005 - ] ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) (0508- )ANE11,ZNE1#) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-68010 Reinforcement Sub-Assy, Front Bumper[01.2003 - 08.2005] ANE1#,ZNE1# |
52021-68010 |
US $201.28 |
||
|
52112D
|
52112D
52112-68010 Extension, Front Bumper, Rh[01.2003 - 08.2005] ZNE1# Ｓパッケージ ＊（Ｓ）; ZNE1# Ｓパッケージ ＊（Ｓ）＆ヘッドランプ−ディスチャージ |
52112-68010 |
US $16.72 |
||
|
52112D
|
52112D
52112-68020 Extension, Front Bumper, Rh[08.2005 - 03.2009] ANE11; ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ |
52112-68020 |
US $11.94 |
||
|
52113D
|
52113D
52113-68010 Extension, Front Bumper, Lh[01.2003 - 08.2005] ZNE1# Ｓパッケージ ＊（Ｓ）; ZNE1# Ｓパッケージ ＊（Ｓ）＆ヘッドランプ−ディスチャージ |
52113-68010 |
US $16.72 |
||
|
52113D
|
52113D
52113-68020 Extension, Front Bumper, Lh[08.2005 - 03.2009] ANE11; ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ |
52113-68020 |
US $11.94 |
||
|
52115A
|
52115A
52115-68010 Support, Front Bumper Side, Rh[01.2003 - 08.2005] ANE1#,ZNE1# |
52115-68010 |
from US $27.72 |
||
|
52115A
|
52115A
52115-68020 Support, Front Bumper Side, Rh[08.2005 - 03.2009] ANE1#,ZNE1# |
52115-68020 |
US $34.61 |
||
|
52116A
|
52116A
52116-68010 Support, Front Bumper Side, Lh[01.2003 - 08.2005] ANE1#,ZNE1# |
52116-68010 |
from US $27.72 |
||
|
52116A
|
52116A
52116-68020 Support, Front Bumper Side, Lh[08.2005 - 03.2009] ANE1#,ZNE1# |
52116-68020 |
US $34.61 |
||
|
52119A
|
52119A
52119-68010-A0 Cover, Front Bumper[01.2003 - 08.2005] ANE10,ZNE1# SUPER WHITE 2,040 |
52119-68010-A0 |
from US $407.02 |
||
|
52119A
|
52119A
52119-68010-A1 Cover, Front Bumper[01.2003 - 08.2005] ANE10,ZNE1# WHITE PEARL CS.,070 |
52119-68010-A1 |
US $867.78 |
||
|
52119A
|
52119A
52119-68010-B0 Cover, Front Bumper[01.2003 - 08.2005] ANE10,ZNE1# SILVER M.M.,1E7 |
52119-68010-B0 |
from US $414.65 |
||
|
52119A
|
52119A
52119-68010-B1 Cover, Front Bumper[01.2003 - 08.2005] ANE10,ZNE1# DK.GRAY M.M.,1E9 |
52119-68010-B1 |
from US $819.72 |
||
|
52119A
|
52119A
52119-68010-C0 Cover, Front Bumper[01.2003 - 08.2005] ANE10,ZNE1# BLACK MC.,209 |
52119-68010-C0 |
US $867.78 |
||
|
52119A
|
52119A
52119-68010-F0 Cover, Front Bumper[01.2003 - 02.2004] ANE10,ZNE1# GOLD ME.,585 |
52119-68010-F0 |
US $867.78 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68906 Cover, Front Bumper[01.2003 - 02.2004] ANE10,ZNE1# GOLD ME.,585 |
52119-68906 |
US $592.80 |
||
|
52119A
|
52119A
52119-68010-J0 Cover, Front Bumper[02.2004 - 08.2005] ANE10,ZNE1# DK.BLUE M.M.,8P4 |
52119-68010-J0 |
US $870.69 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68906 Cover, Front Bumper[02.2004 - 08.2005] ANE10,ZNE1# DK.BLUE M.M.,8P4 |
52119-68906 |
US $592.80 |
||
|
52119A
|
52119A
52119-68010-J1 Cover, Front Bumper[01.2003 - 08.2005] ANE10,ZNE1# LT.BLUE ME.,8Q6 |
52119-68010-J1 |
US $867.78 |
||
|
52119A
|
52119A
52119-68020-A1 Cover, Front Bumper[01.2003 - 08.2005] ZNE1# Ｓパッケージ ＊（Ｓ）,WHITE PEARL CS.,070; ZNE1# Ｓパッケージ ＊（Ｓ）＆ヘッドランプ−ディスチャージ,WHITE PEARL CS.,070 |
52119-68020-A1 |
US $912.91 |
||
|
52119A
|
52119A
52119-68020-B0 Cover, Front Bumper[01.2003 - 08.2005] ZNE1# Ｓパッケージ ＊（Ｓ）,SILVER M.M.,1E7; ZNE1# Ｓパッケージ ＊（Ｓ）＆ヘッドランプ−ディスチャージ,SILVER M.M.,1E7 |
52119-68020-B0 |
US $912.91 |
||
|
52119A
|
52119A
52119-68020-B1 Cover, Front Bumper[01.2003 - 08.2005] ZNE1# Ｓパッケージ ＊（Ｓ）,DK.GRAY M.M.,1E9; ZNE1# Ｓパッケージ ＊（Ｓ）＆ヘッドランプ−ディスチャージ,DK.GRAY M.M.,1E9 |
52119-68020-B1 |
US $912.91 |
||
|
52119A
|
52119A
52119-68020-C0 Cover, Front Bumper[01.2003 - 08.2005] ZNE1# Ｓパッケージ ＊（Ｓ）,BLACK MC.,209; ZNE1# Ｓパッケージ ＊（Ｓ）＆ヘッドランプ−ディスチャージ,BLACK MC.,209 |
52119-68020-C0 |
US $912.91 |
||
|
52119A
|
52119A
52119-68020-D0 Cover, Front Bumper[01.2003 - 08.2005] ZNE1# Ｓパッケージ ＊（Ｓ）,SUPER RED 5,3P0; ZNE1# Ｓパッケージ ＊（Ｓ）＆ヘッドランプ−ディスチャージ,SUPER RED 5,3P0 |
52119-68020-D0 |
US $912.91 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68910 Cover, Front Bumper[01.2003 - 08.2005] ZNE1# Ｓパッケージ ＊（Ｓ）,SUPER RED 5,3P0; ZNE1# Ｓパッケージ ＊（Ｓ）＆ヘッドランプ−ディスチャージ,SUPER RED 5,3P0 |
52119-68910 |
US $625.56 |
||
|
52119A
|
52119A
52119-68020-J0 Cover, Front Bumper[01.2003 - 08.2005] ZNE1# Ｓパッケージ ＊（Ｓ）,DK.BLUE M.M.,8P4; ZNE1# Ｓパッケージ ＊（Ｓ）＆ヘッドランプ−ディスチャージ,DK.BLUE M.M.,8P4 |
52119-68020-J0 |
US $912.91 |
||
|
52119A
|
52119A
52119-68020-J2 Cover, Front Bumper[02.2004 - 08.2005] ZNE1# Ｓパッケージ ＊（Ｓ）,BLUE M.M.,8Q1; ZNE1# Ｓパッケージ ＊（Ｓ）＆ヘッドランプ−ディスチャージ,BLUE M.M.,8Q1 |
52119-68020-J2 |
US $912.91 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68910 Cover, Front Bumper[02.2004 - 08.2005] ZNE1# Ｓパッケージ ＊（Ｓ）,BLUE M.M.,8Q1; ZNE1# Ｓパッケージ ＊（Ｓ）＆ヘッドランプ−ディスチャージ,BLUE M.M.,8Q1 |
52119-68910 |
US $625.56 |
||
|
52119A
|
52119A
52119-68060-A0 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# WHITE PEARL CS.,070; ANE10 WHITE PEARL CS.,070 |
52119-68060-A0 |
US $869.23 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68061-A0 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# WHITE PEARL CS.,070; ANE10 WHITE PEARL CS.,070 |
52119-68061-A0 |
US $821.47 |
||
|
52119A
|
52119A
52119-68060-B0 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# GRAY ME.,1D2; ANE10 GRAY ME.,1D2 |
52119-68060-B0 |
US $869.23 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68061-B0 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# GRAY ME.,1D2; ANE10 GRAY ME.,1D2 |
52119-68061-B0 |
US $821.47 |
||
|
52119A
|
52119A
52119-68060-B1 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# DK.GRAY M.M.,1E9; ANE10 DK.GRAY M.M.,1E9 |
52119-68060-B1 |
US $869.23 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68908 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# DK.GRAY M.M.,1E9; ANE10 DK.GRAY M.M.,1E9 |
52119-68908 |
US $594.36 |
||
|
52119A
|
52119A
52119-68060-B2 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# SILVER ME.,1F7; ANE10 SILVER ME.,1F7 |
52119-68060-B2 |
US $869.23 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68061-B2 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# SILVER ME.,1F7; ANE10 SILVER ME.,1F7 |
52119-68061-B2 |
US $821.47 |
||
|
52119A
|
52119A
52119-68060-C0 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# BLACK MC.,209; ANE10 BLACK MC.,209 |
52119-68060-C0 |
US $869.23 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68061-C0 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# BLACK MC.,209; ANE10 BLACK MC.,209 |
52119-68061-C0 |
US $821.47 |
||
|
52119A
|
52119A
52119-68060-D0 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# BORDEAUX MC.,3P2; ANE10 BORDEAUX MC.,3P2 |
52119-68060-D0 |
US $869.23 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68908 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# BORDEAUX MC.,3P2; ANE10 BORDEAUX MC.,3P2 |
52119-68908 |
US $594.36 |
||
|
52119A
|
52119A
52119-68060-J0 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# DK.BLUE MC.,8S6; ANE10 DK.BLUE MC.,8S6 |
52119-68060-J0 |
US $869.23 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68061-J0 Cover, Front Bumper[08.2005 - 04.2008] ZNE1# DK.BLUE MC.,8S6; ANE10 DK.BLUE MC.,8S6 |
52119-68061-J0 |
US $821.47 |
||
|
52119A
|
52119A
52119-68061-A0 Cover, Front Bumper[05.2008 - 03.2009] ZNE1# WHITE PEARL CS.,070; ANE10 WHITE PEARL CS.,070 |
52119-68061-A0 |
US $821.47 |
||
|
52119A
|
52119A
52119-68061-B0 Cover, Front Bumper[05.2008 - 03.2009] ZNE1# GRAY ME.,1D2; ANE10 GRAY ME.,1D2 |
52119-68061-B0 |
US $821.47 |
||
|
52119A
|
52119A
52119-68061-B1 Cover, Front Bumper[05.2008 - 03.2009] ZNE1# DK.GRAY M.M.,1E9; ANE10 DK.GRAY M.M.,1E9 |
52119-68061-B1 |
US $821.47 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68908 Cover, Front Bumper[05.2008 - 03.2009] ZNE1# DK.GRAY M.M.,1E9; ANE10 DK.GRAY M.M.,1E9 |
52119-68908 |
US $594.36 |
||
|
52119A
|
52119A
52119-68061-B2 Cover, Front Bumper[05.2008 - 03.2009] ZNE1# SILVER ME.,1F7; ANE10 SILVER ME.,1F7 |
52119-68061-B2 |
US $821.47 |
||
|
52119A
|
52119A
52119-68061-C0 Cover, Front Bumper[05.2008 - 03.2009] ZNE1# BLACK MC.,209; ANE10 BLACK MC.,209 |
52119-68061-C0 |
US $821.47 |
||
|
52119A
|
52119A
52119-68061-D0 Cover, Front Bumper[05.2008 - 03.2009] ZNE1# BORDEAUX MC.,3P2; ANE10 BORDEAUX MC.,3P2 |
52119-68061-D0 |
US $821.47 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68908 Cover, Front Bumper[05.2008 - 03.2009] ZNE1# BORDEAUX MC.,3P2; ANE10 BORDEAUX MC.,3P2 |
52119-68908 |
US $594.36 |
||
|
52119A
|
52119A
52119-68061-J0 Cover, Front Bumper[05.2008 - 03.2009] ZNE1# DK.BLUE MC.,8S6; ANE10 DK.BLUE MC.,8S6 |
52119-68061-J0 |
US $821.47 |
||
|
52119A
|
52119A
52119-68070-A0 Cover, Front Bumper[08.2005 - 03.2009] ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ,WHITE PEARL CS.,070 |
52119-68070-A0 |
US $861.38 |
||
|
52119A
|
52119A
52119-68070-B0 Cover, Front Bumper[08.2005 - 03.2009] ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ,GRAY ME.,1D2 |
52119-68070-B0 |
US $861.38 |
||
|
52119A
|
52119A
52119-68070-B1 Cover, Front Bumper[08.2005 - 03.2009] ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ,DK.GRAY M.M.,1E9 |
52119-68070-B1 |
US $861.38 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68911 Cover, Front Bumper[08.2005 - 03.2009] ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ,DK.GRAY M.M.,1E9 |
52119-68911 |
US $624 |
||
|
52119A
|
52119A
52119-68070-B2 Cover, Front Bumper[08.2005 - 03.2009] ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ,SILVER ME.,1F7 |
52119-68070-B2 |
US $861.38 |
||
|
52119A
|
52119A
52119-68070-C0 Cover, Front Bumper[08.2005 - 03.2009] ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ,BLACK MC.,209 |
52119-68070-C0 |
US $861.38 |
||
|
52119A
|
52119A
52119-68070-D0 Cover, Front Bumper[08.2005 - 03.2009] ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ,SUPER RED 5,3P0 |
52119-68070-D0 |
US $861.38 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68911 Cover, Front Bumper[08.2005 - 03.2009] ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ,SUPER RED 5,3P0 |
52119-68911 |
US $624 |
||
|
52119A
|
52119A
52119-68070-J0 Cover, Front Bumper[08.2005 - 03.2009] ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ,BLUE M.M.,8Q1 |
52119-68070-J0 |
US $861.38 |
||
| replacement | |||||
|
52119A
|
52119A
52119-68911 Cover, Front Bumper[08.2005 - 03.2009] ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ,BLUE M.M.,8Q1 |
52119-68911 |
US $624 |
||
|
52161C
|
52161C
52161-16010 Clip[01.2003 - 08.2005] ANE1#,ZNE1# |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161C
|
52161C
52161-0K040 Clip[01.2003 - 08.2005] ANE1#,ZNE1# |
52161-0K040 |
from US $1.50 |
||
|
52161C
|
52161C
52161-02020 Clip[01.2003 - 08.2005] ANE1#,ZNE1# |
52161-02020 |
US $5.27 |
||
|
52611
|
52611
52611-68010 Absorber, Front Bumper Energy[01.2003 - 08.2005] ANE1#,ZNE1# |
52611-68010 |
US $123 |
||
|
52611
|
52611
52611-68020 Absorber, Front Bumper Energy[08.2005 - 03.2009] ANE1#,ZNE1# |
52611-68020 |
US $139.40 |
||
|
53112E
|
53112E
53112-68010 Grille, Radiator, Lower No.1[08.2005 - 03.2009] ANE10,ZNE1# |
53112-68010 |
US $93.72 |
||
|
53112E
|
53112E
53112-68020 Grille, Radiator, Lower No.1[08.2005 - 04.2008] ANE11; ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ |
53112-68020 |
US $103.38 |
||
| replacement | |||||
|
53112E
|
53112E
53112-68021 Grille, Radiator, Lower No.1[08.2005 - 04.2008] ANE11; ZNE1# エアロスポーツパッケージ＆ヘッドランプ−ディスチャージ |
53112-68021 |
US $75.24 |
||
|
53112E
|
53112E
53112-68021 Grille, Radiator, Lower No.1[05.2008 - 06.2008] ZNE1# ＡＥＲＯ ＳＰＯＲＴＳ パッケージ Ｌ ＥＤＩＴＩＯＮ＆ヘッドランプ−ディスチャー ジ |
53112-68021 |
US $75.24 |
||
|
53384C
|
53384C
53384-68010 Cushion, Radiator Grille[01.2003 - 08.2005] ANE1#,ZNE1# |
53384-68010 |
from US $6.81 |
||
|
9011906665
|
9011906665
90119-06665 BOLT WWASHER |
90119-06665 |
from US $0.84 |
||
|
9011908630
|
9011908630
90119-08630 Bolt, W/washer(For Transmission Case Cover) |
90119-08630 |
US $2.15 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.13 |
||
|
9017608054
|
9017608054
90176-08054 NUT CAP |
90176-08054 |
US $2.51 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
|
9046708185
|
9046708185
90467-08185 Reinforcement, Front Spring Support, No.3 |
90467-08185 |
from US $0.88 |
||
