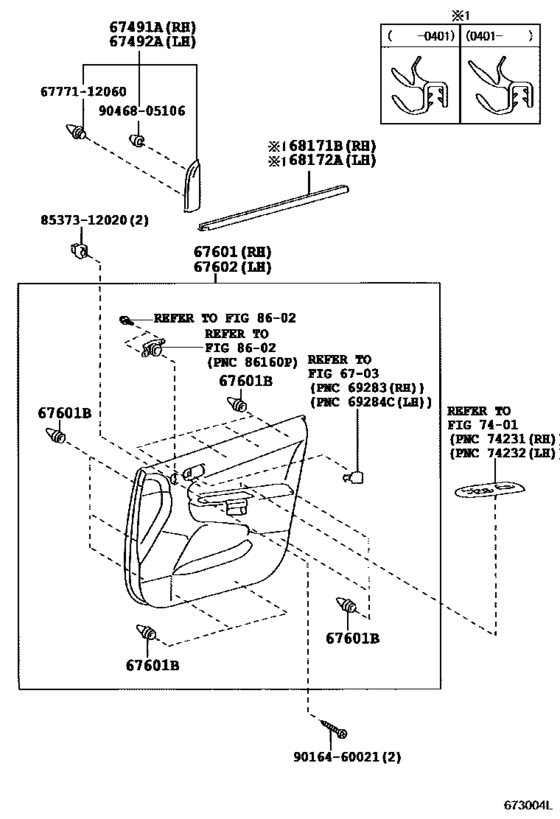

Front Door Panel & Glass ([01.2003 - ] (0301- )) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-68010 Garnish, Front Door Lower Frame Bracket, Rh[01.2003 - 08.2005] ANE1#,ZNE1# |
67491-68010 |
US $18.20 |
||
|
67492A
|
67492A
67492-68010 Garnish, Front Door Lower Frame Bracket, Lh[01.2003 - 08.2005] ANE1#,ZNE1# |
67492-68010 |
US $18.20 |
||
|
67601
|
67601
67610-68010-B1 Board Sub-Assy, Front Door Trim, Rh[01.2003 - 08.2005] ANE1#,ZNE1# MEDIUM GRAY,TRIM1# |
67610-68010-B1 |
US $474.66 |
||
| replacement | |||||
|
67601
|
67601
67610-68010-B3 Board Sub-Assy, Front Door Trim, Rh[01.2003 - 08.2005] ANE1#,ZNE1# MEDIUM GRAY,TRIM1# |
67610-68010-B3 |
US $471.74 |
||
|
67601
|
67601
67610-68010-B3 Board Sub-Assy, Front Door Trim, Rh[08.2005 - 06.2008] ZNE1# MEDIUM GRAY,TRIM1# |
67610-68010-B3 |
US $471.74 |
||
|
67601
|
67601
67610-68010-B4 Board Sub-Assy, Front Door Trim, Rh[06.2007 - 06.2008] ZNE1# Ｌ ＥＤＩＴＩＯＮ,GRAY,TRIM16 |
67610-68010-B4 |
US $471.74 |
||
|
67601
|
67601
67610-68010-B6 Board Sub-Assy, Front Door Trim, Rh[06.2008 -] ZNE1# Ｘ ”Ａｅｒｏ Ｓｐｏｒｔｓ パッケージ・Ｌｉｍｉｔｅｄ” ＊（Ｇ）,GRAY,TRIM16 |
67610-68010-B6 |
US $471.74 |
||
|
67601
|
67601
67610-68020-B1 Board Sub-Assy, Front Door Trim, Rh[01.2003 - 04.2004] ANE1#,ZNE1# オーディオ−マルチＡＶステーション,MEDIUM GRAY,TRIM1# |
67610-68020-B1 |
US $627.54 |
||
| replacement | |||||
|
67601
|
67601
67610-68020-B2 Board Sub-Assy, Front Door Trim, Rh[01.2003 - 04.2004] ANE1#,ZNE1# オーディオ−マルチＡＶステーション,MEDIUM GRAY,TRIM1# |
67610-68020-B2 |
US $627.54 |
||
|
67601
|
67601
67610-68020-B2 Board Sub-Assy, Front Door Trim, Rh[08.2005 - 03.2009] ZNE1# オーディオ−ＨＤＤナビ＋ブラインドコーナーモニター＋６スピーカ,MEDIUM GRAY,TRIM1# |
67610-68020-B2 |
US $627.54 |
||
|
67601
|
67601
67610-68030-B1 Board Sub-Assy, Front Door Trim, Rh[01.2003 - 08.2005] ANE11,ZNE1# オーディオ−ＪＢＬプレミアムサウンドシステム ９スピーカ,MEDIUM GRAY,TRIM1# |
67610-68030-B1 |
US $729.46 |
||
|
67601
|
67601
67610-68120-B0 Board Sub-Assy, Front Door Trim, Rh[08.2005 - 03.2009] ANE11 DK.GRAY,TRIM1#; ZNE1# エアロスポーツパッケージ,DK.GRAY,TRIM1# |
67610-68120-B0 |
US $471.74 |
||
|
67601
|
67601
67610-68130-B0 Board Sub-Assy, Front Door Trim, Rh[06.2007 - 06.2008] ZNE1# ＡＥＲＯ ＳＰＯＲＴＳ パッケージ Ｌ ＥＤＩＴＩＯＮ,GRAY,TRIM16,17,＊１０４ Ｔ ＹＰＥ Ｂ：イラスト参照 |
67610-68130-B0 |
US $471.74 |
||
| replacement | |||||
|
67601
|
67601
67610-68131-B0 Board Sub-Assy, Front Door Trim, Rh[06.2007 - 06.2008] ZNE1# ＡＥＲＯ ＳＰＯＲＴＳ パッケージ Ｌ ＥＤＩＴＩＯＮ,GRAY,TRIM16,17,＊１０４ Ｔ ＹＰＥ Ｂ：イラスト参照 |
67610-68131-B0 |
US $471.74 |
||
|
67601
|
67601
67610-68130-C0 Board Sub-Assy, Front Door Trim, Rh[03.2006 - 06.2007] ZNE1# Ｘリミテッド,DARK GRAY,TRIM1# |
67610-68130-C0 |
US $471.74 |
||
| replacement | |||||
|
67601
|
67601
67610-68131-C0 Board Sub-Assy, Front Door Trim, Rh[03.2006 - 06.2007] ZNE1# Ｘリミテッド,DARK GRAY,TRIM1# |
67610-68131-C0 |
US $471.74 |
||
|
67601
|
67601
67610-68140-B0 Board Sub-Assy, Front Door Trim, Rh[08.2005 - 03.2009] ZNE1# エアロスポーツパッケージ＆オーディオ−ＨＤＤナビ＋ブラインドコーナーモニター＋６ス ピーカ,DK.GRAY,TRIM1#; ANE11 オーディオ−ＨＤＤナビ＋ブラインドコーナーモニター＋６スピーカ,DK.GRAY,TRIM1#; ANE11 オーディオ−ＨＤＤナビ＋リヤディスプレイ＋ブラインドコーナーモニター＋９スピーカ,D K.GRAY,TRIM1# |
67610-68140-B0 |
US $729.46 |
||
|
67601B
|
67601B
90467-09206 Clip, Front Air Shutter Seal[01.2003 - 08.2005] ANE1#,ZNE1# |
90467-09206 |
from US $0.47 |
||
|
67602
|
67602
67620-68010-B1 Board Sub-Assy, Front Door Trim, Lh[01.2003 - 08.2005] ANE1#,ZNE1# MEDIUM GRAY,TRIM1# |
67620-68010-B1 |
US $474.66 |
||
| replacement | |||||
|
67602
|
67602
67620-68010-B3 Board Sub-Assy, Front Door Trim, Lh[01.2003 - 08.2005] ANE1#,ZNE1# MEDIUM GRAY,TRIM1# |
67620-68010-B3 |
US $471.74 |
||
|
67602
|
67602
67620-68010-B3 Board Sub-Assy, Front Door Trim, Lh[08.2005 - 06.2008] ZNE1# MEDIUM GRAY,TRIM1# |
67620-68010-B3 |
US $471.74 |
||
|
67602
|
67602
67620-68010-B4 Board Sub-Assy, Front Door Trim, Lh[06.2007 - 06.2008] ZNE1# Ｌ ＥＤＩＴＩＯＮ,GRAY,TRIM16 |
67620-68010-B4 |
US $471.74 |
||
|
67602
|
67602
67620-68010-B6 Board Sub-Assy, Front Door Trim, Lh[06.2008 -] ZNE1# Ｘ ”Ａｅｒｏ Ｓｐｏｒｔｓ パッケージ・Ｌｉｍｉｔｅｄ” ＊（Ｇ）,GRAY,TRIM16 |
67620-68010-B6 |
US $471.74 |
||
|
67602
|
67602
67620-68020-B1 Board Sub-Assy, Front Door Trim, Lh[01.2003 - 04.2004] ANE1#,ZNE1# オーディオ−マルチＡＶステーション,MEDIUM GRAY,TRIM1# |
67620-68020-B1 |
US $627.54 |
||
| replacement | |||||
|
67602
|
67602
67620-68020-B2 Board Sub-Assy, Front Door Trim, Lh[01.2003 - 04.2004] ANE1#,ZNE1# オーディオ−マルチＡＶステーション,MEDIUM GRAY,TRIM1# |
67620-68020-B2 |
US $627.54 |
||
|
67602
|
67602
67620-68020-B2 Board Sub-Assy, Front Door Trim, Lh[08.2005 - 03.2009] ZNE1# オーディオ−ＨＤＤナビ＋ブラインドコーナーモニター＋６スピーカ,MEDIUM GRAY,TRIM1# |
67620-68020-B2 |
US $627.54 |
||
|
67602
|
67602
67620-68030-B1 Board Sub-Assy, Front Door Trim, Lh[01.2003 - 08.2005] ANE11,ZNE1# オーディオ−ＪＢＬプレミアムサウンドシステム ９スピーカ,MEDIUM GRAY,TRIM1# |
67620-68030-B1 |
US $729.46 |
||
|
67602
|
67602
67620-68120-B0 Board Sub-Assy, Front Door Trim, Lh[08.2005 - 03.2009] ANE11 DK.GRAY,TRIM1#; ZNE1# エアロスポーツパッケージ,DK.GRAY,TRIM1# |
67620-68120-B0 |
US $471.74 |
||
|
67602
|
67602
67620-68130-B0 Board Sub-Assy, Front Door Trim, Lh[06.2007 - 06.2008] ZNE1# ＡＥＲＯ ＳＰＯＲＴＳ パッケージ Ｌ ＥＤＩＴＩＯＮ,GRAY,TRIM16,17,＊１０４ Ｔ ＹＰＥ Ｂ：イラスト参照 |
67620-68130-B0 |
US $471.74 |
||
| replacement | |||||
|
67602
|
67602
67620-68131-B0 Board Sub-Assy, Front Door Trim, Lh[06.2007 - 06.2008] ZNE1# ＡＥＲＯ ＳＰＯＲＴＳ パッケージ Ｌ ＥＤＩＴＩＯＮ,GRAY,TRIM16,17,＊１０４ Ｔ ＹＰＥ Ｂ：イラスト参照 |
67620-68131-B0 |
US $471.74 |
||
|
67602
|
67602
67620-68130-C0 Board Sub-Assy, Front Door Trim, Lh[03.2006 - 06.2007] ZNE1# Ｘリミテッド,DARK GRAY,TRIM1# |
67620-68130-C0 |
US $471.74 |
||
| replacement | |||||
|
67602
|
67602
67620-68131-C0 Board Sub-Assy, Front Door Trim, Lh[03.2006 - 06.2007] ZNE1# Ｘリミテッド,DARK GRAY,TRIM1# |
67620-68131-C0 |
US $471.74 |
||
|
67602
|
67602
67620-68140-B0 Board Sub-Assy, Front Door Trim, Lh[08.2005 - 03.2009] ZNE1# エアロスポーツパッケージ＆オーディオ−ＨＤＤナビ＋ブラインドコーナーモニター＋６ス ピーカ,DK.GRAY,TRIM1#; ANE11 オーディオ−ＨＤＤナビ＋ブラインドコーナーモニター＋６スピーカ,DK.GRAY,TRIM1#; ANE11 オーディオ−ＨＤＤナビ＋リヤディスプレイ＋ブラインドコーナーモニター＋９スピーカ,D K.GRAY,TRIM1# |
67620-68140-B0 |
US $729.46 |
||
|
68171B
|
68171B
68171-68010
Weatherstrip, Front Door Glass, Inner Rh
[01.2003 - 01.2004] ANE1#,ZNE1# |
68171-68010 |
— | ||
|
68171B
|
68171B
68171-68020 Weatherstrip, Front Door Glass, Inner Rh[01.2004 - 08.2005] ANE1#,ZNE1# |
68171-68020 |
US $58.97 |
||
|
68172A
|
68172A
68172-68010
Weatherstrip, Front Door Glass, Inner Lh
[01.2003 - 01.2004] ANE1#,ZNE1# |
68172-68010 |
— | ||
|
68172A
|
68172A
68172-68020 Weatherstrip, Front Door Glass, Inner Lh[01.2004 - 08.2005] ANE1#,ZNE1# |
68172-68020 |
US $58.97 |
||
|
6777112060
|
6777112060
67771-12060 Retainer, Door Trim |
67771-12060 |
US $1.79 |
||
|
8537312020
|
8537312020
85373-12020 Hose, Windshield Washer (from Joint To Nozzle) |
85373-12020 |
US $3.58 |
||
|
9016460021
|
9016460021
90164-60021 SCREW BINDING |
90164-60021 |
from US $0.66 |
||
|
9046805106
|
9046805106
90468-05106 Clip, Cool Air Ornament |
90468-05106 |
from US $2.76 |
||
