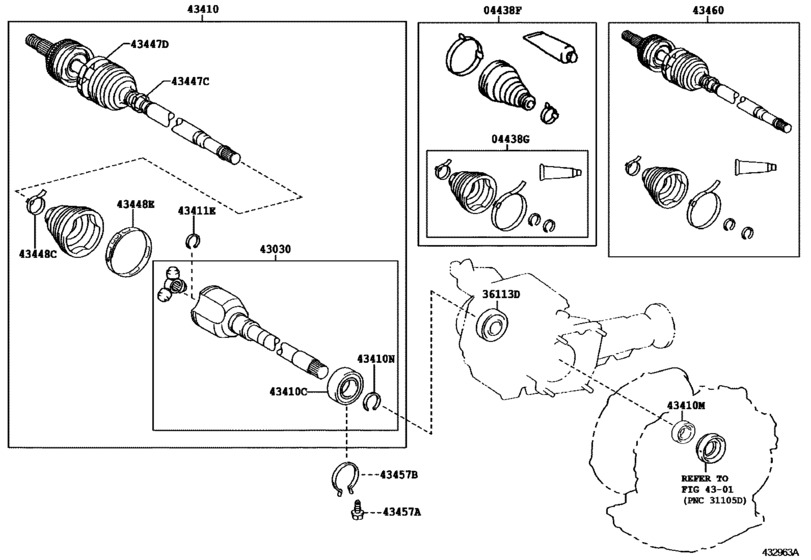

Front Drive Shaft ([01.2003 - ] ﾗｲﾄ (0301- )ZNE14) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04428-12250 Boot Kit, Front Drive Shaft, In & Outboard, Rh[01.2003 - 08.2005] ZNE14 |
04428-12250 |
from US $141.52 |
||
|
04438G
|
04438G
04438-42200
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[01.2003 - 08.2005] ZNE1# |
04438-42200 |
— | ||
| replacement | |||||
|
04438G
|
04438G
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[01.2003 - 08.2005] ZNE1# |
04438-42201 |
from US $66.73 |
||
|
36113D
|
36113D
90311-36006 Seal, Oil (For Transfer Case Rh)[01.2003 - 08.2005] ZNE14 |
90311-36006 |
from US $8.96 |
||
|
43030
|
43030
43030-12070 Joint Assy, Front Drive Inboard, Rh[01.2003 - 08.2005] ZNE14 |
43030-12070 |
US $486.30 |
||
|
43410
|
43410
43410-12531 Shaft Assy, Front Drive, Rh[01.2003 - 08.2005] ZNE14 |
43410-12531 |
US $1,073.07 |
||
|
43410C
|
43410C
90363-36006 Bearing (For Front Drive Shaft)[01.2003 - 08.2005] ZNE14 |
90363-36006 |
from US $22.54 |
||
|
43410M
|
43410M
90316-28003 Oil Seal, Front Drive Shaft, Rh[01.2003 - 08.2005] ZNE14 |
90316-28003 |
from US $8.06 |
||
|
43410N
|
43410N
90520-33008 Ring, Hole Snap (For Differential Side Gear Shaft)[01.2003 - 08.2005] ANE1#,ZNE14 |
90520-33008 |
from US $1.91 |
||
|
43411E
|
43411E
90520-22005 Ring, Snap (For Rear Drive Shaft)[01.2003 - 08.2005] ZNE1# |
90520-22005 |
from US $1.17 |
||
|
43447C
|
43447C
42345-12150 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[01.2003 - 08.2005] ZNE1# |
42345-12150 |
US $4.95 |
||
| replacement | |||||
|
43447C
|
43447C
42345-12190 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[01.2003 - 08.2005] ZNE1# |
42345-12190 |
US $2.91 |
||
|
43447D
|
43447D
42345-12140 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)[01.2003 - 08.2005] ZNE1# |
42345-12140 |
US $7.72 |
||
| replacement | |||||
|
43447D
|
43447D
42345-12180 Clamp (For Front Axle Outboard Joint Boot Lh)[01.2003 - 08.2005] ZNE1# |
42345-12180 |
US $5.91 |
||
|
43448C
|
43448C
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[01.2003 - 08.2005] ZNE1# |
90949-01078 |
US $0.96 |
||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [01.2003 - 08.2005] ANE1#,ZNE1# |
42345-12160 |
from US $4.45 |
||
|
43457A
|
43457A
90119-10952 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[07.2005 - 08.2005] ZNE14 ＊１０−１．２５ＰＸ２９―１４．８ |
90119-10952 |
US $1.38 |
||
|
43457A
|
43457A
90901-19060 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[01.2003 - 07.2005] ZNE14 ＊１０−１．２５ＰＸ２８．５−１４．８ |
90901-19060 |
from US $2.28 |
||
|
43457B
|
43457B
90521-75002 Ring, Hole Snap (For Drive Shaft Bearing Bracket)[01.2003 - 08.2005] ZNE14 |
90521-75002 |
from US $2.01 |
||
|
43460
|
43460
43460-39126 Shaft Assy, Front Drive Outboard Joint, Rh[01.2003 - 08.2005] ZNE14 |
43460-39126 |
US $655.20 |
||
| replacement | |||||
|
43460
|
43460
43460-80130 Shaft Assy, Front Drive Outboard Joint, Rh[01.2003 - 08.2005] ZNE14 |
43460-80130 |
US $642.10 |
||
