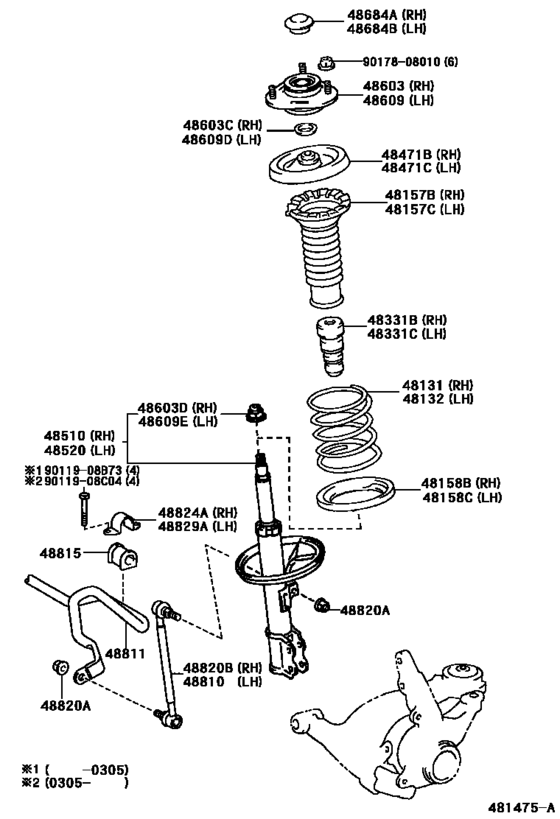

Front Spring & Shock Absorber ([01.2003 - ] (0301- )) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-68030 Spring, Front Coil, Rh[01.2003 - 08.2005] ZNE14 |
48131-68030 |
US $110.66 |
||
|
48132
|
48132
48131-68030 Spring, Front Coil, Rh[01.2003 - 08.2005] ZNE14 |
48131-68030 |
US $110.66 |
||
|
48157B
|
48157B
48157-12080 Insulator, Front Coil Spring, Upper[01.2003 - 08.2005] ANE1#,ZNE1# |
48157-12080 |
from US $15.15 |
||
|
48157C
|
48157C
48157-12080 Insulator, Front Coil Spring, Upper[01.2003 - 08.2005] ANE1#,ZNE1# |
48157-12080 |
from US $15.15 |
||
|
48158B
|
48158B
48158-47010 Insulator, Front Coil Spring, Lower Rh[01.2003 - 08.2005] ANE1#,ZNE1# |
48158-47010 |
from US $9.95 |
||
|
48158C
|
48158C
48158-47010 Insulator, Front Coil Spring, Lower Rh[01.2003 - 08.2005] ANE1#,ZNE1# |
48158-47010 |
from US $9.95 |
||
|
48331B
|
48331B
48331-68010 Bumper, Front Spring, Rh[01.2003 - 08.2005] ANE1#,ZNE1# |
48331-68010 |
from US $12.40 |
||
|
48331C
|
48331C
48331-68010 Bumper, Front Spring, Rh[01.2003 - 08.2005] ANE1#,ZNE1# |
48331-68010 |
from US $12.40 |
||
|
48471B
|
48471B
48044-12100 Seat, Front Coil Spring, Upper[01.2003 - 08.2005] ANE1#,ZNE1# |
48044-12100 |
from US $10.35 |
||
|
48471C
|
48471C
48044-12100 Seat, Front Coil Spring, Upper[01.2003 - 08.2005] ANE1#,ZNE1# |
48044-12100 |
from US $10.35 |
||
|
48510
|
48510
48510-69225 Absorber Assy, Shock, Front Rh[01.2003 - 12.2003] ZNE14 マーク ４８５１０−６８０３０ |
48510-69225 |
US $330.51 |
||
| replacement | |||||
|
48510
|
48510
48510-69255 Absorber Assy, Shock, Front Rh[01.2003 - 12.2003] ZNE14 マーク ４８５１０−６８０３０ |
48510-69255 |
US $330.51 |
||
|
48510
|
48510
48510-69255 Absorber Assy, Shock, Front Rh[12.2003 - 08.2005] ZNE14 マーク ４８５１０−６８０３０ |
48510-69255 |
US $330.51 |
||
|
48520
|
48520
48520-69065 Absorber Assy, Shock, Front Lh[01.2003 - 12.2003] ZNE14 マーク ４８５２０−６８０３０ |
48520-69065 |
US $330.51 |
||
| replacement | |||||
|
48520
|
48520
48520-69095 Absorber Assy, Shock, Front Lh[01.2003 - 12.2003] ZNE14 マーク ４８５２０−６８０３０ |
48520-69095 |
US $330.51 |
||
|
48520
|
48520
48520-69095 Absorber Assy, Shock, Front Lh[12.2003 - 08.2005] ZNE14 マーク ４８５２０−６８０３０ |
48520-69095 |
US $330.51 |
||
|
48603
|
48603
48609-13010 Support Sub-Assy, Front Suspension[01.2003 - 08.2005] ANE1#,ZNE1# |
48609-13010 |
from US $75.04 |
||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[01.2003 - 08.2005] ANE1#,ZNE1# |
90303-22002 |
from US $3.58 |
||
|
48603D
|
48603D
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[01.2003 - 08.2005] ANE1#,ZNE1# |
90179-14015 |
from US $0.90 |
||
|
48609
|
48609
48609-13010 Support Sub-Assy, Front Suspension[01.2003 - 08.2005] ANE1#,ZNE1# |
48609-13010 |
from US $75.04 |
||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[01.2003 - 08.2005] ANE1#,ZNE1# |
90303-22002 |
from US $3.58 |
||
|
48609E
|
48609E
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[01.2003 - 08.2005] ANE1#,ZNE1# |
90179-14015 |
from US $0.90 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[01.2003 - 08.2005] ANE1#,ZNE1# |
48684-52010 |
from US $9.44 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[01.2003 - 08.2005] ANE1#,ZNE1# |
48684-52010 |
from US $9.44 |
||
|
48810
|
48810
48820-47010 Link Assy, Front Stabilizer[01.2003 - 08.2005] ANE1#,ZNE1# |
48820-47010 |
from US $71.39 |
||
|
48811
|
48811
48811-2B110 Bar, Stabilizer, Front[01.2003 - 08.2005] ZNE14 |
48811-2B110 |
US $101.92 |
||
|
48815
|
48815
48815-20290 Bush, Front Stabilizer Bar, No.1[01.2003 - 08.2005] ANE1#,ZNE1# |
48815-20290 |
US $13.44 |
||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[01.2003 - 08.2005] ANE1#,ZNE1# |
90179-12151 |
from US $0.92 |
||
|
48820B
|
48820B
48820-47010 Link Assy, Front Stabilizer[01.2003 - 08.2005] ANE1#,ZNE1# |
48820-47010 |
from US $71.39 |
||
|
48824A
|
48824A
48824-20120 Bracket, Front Stabilizer, No.1 Rh[01.2003 - 08.2005] ANE1#,ZNE1# |
48824-20120 |
US $17.47 |
||
|
48829A
|
48829A
48824-20120 Bracket, Front Stabilizer, No.1 Rh[01.2003 - 08.2005] ANE1#,ZNE1# |
48824-20120 |
US $17.47 |
||
|
9011908B73
|
9011908B73
90119-08B73 New Genuine Part |
90119-08B73 |
US $1.79 |
||
|
9011908C04
|
9011908C04
90119-08C04 BOLT WWASHER |
90119-08C04 |
US $1.43 |
||
|
9017808010
|
9017808010
90178-08010 Nut(For Front Suspension Support) |
90178-08010 |
from US $0.90 |
||
