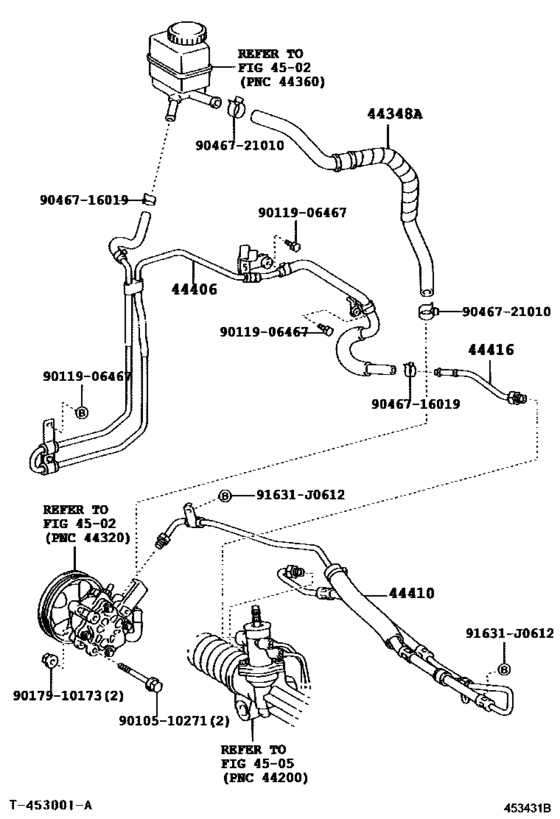

Power Steering Tube ([01.2003 - ] (0301- )ZNE14) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44348A
|
44348A
44348-20630 Hose, Oil Reservoir To Pump, No.1[01.2003 - 08.2005] ZNE14 |
44348-20630 |
US $86.92 |
||
|
44406
|
44406
44406-20850 Tube Sub-Assy, Return[01.2003 - 08.2005] ZNE14 |
44406-20850 |
US $182.40 |
||
|
44410
|
44410
44410-2B400 Tube Assy, Pressure Feed[01.2003 - 08.2005] ZNE14 |
44410-2B400 |
US $346.53 |
||
| replacement | |||||
|
44410
|
44410
44410-2B401 Tube Assy, Pressure Feed[01.2003 - 08.2005] ZNE14 |
44410-2B401 |
US $326.11 |
||
|
44410
|
44410
44410-2B401 Tube Assy, Pressure Feed[01.2006 - 03.2009] ZNE14 |
44410-2B401 |
US $326.11 |
||
|
44416
|
44416
44416-20260 Tube, Return(For Steering Gear Outlet)[01.2003 - 08.2005] ZNE14 |
44416-20260 |
US $19.49 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9010510271
|
9010510271
90105-10271 BOLT WASHER BASED |
90105-10271 |
from US $4.70 |
||
|
9011906467
|
9011906467
90119-06467 BOLT WWASHER |
90119-06467 |
US $2.87 |
||
|
9017910173
|
9017910173
90179-10173 NUT |
90179-10173 |
US $3.58 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
