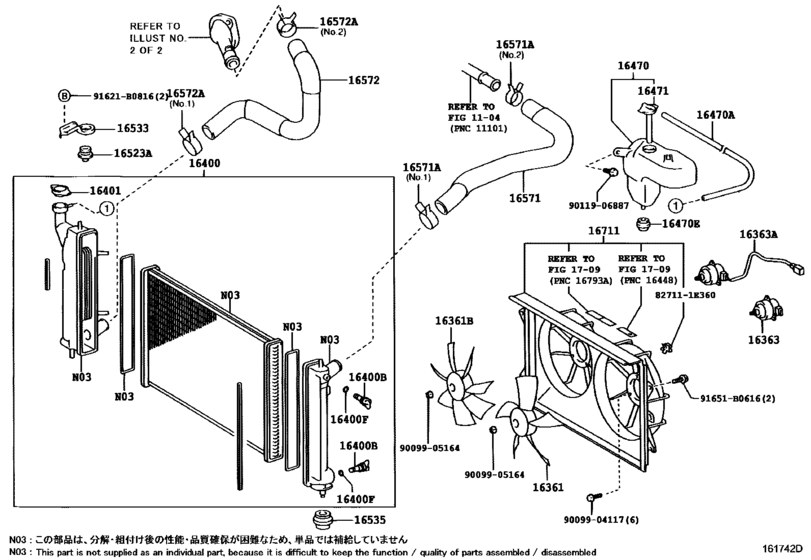

Radiator & Water Outlet ([01.2003 - ] (0301- )1ZZFE..ZNE14) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-22050 Fan[01.2003 - 01.2004] 1ZZFE..ZNE14 |
16361-22050 |
US $61.59 |
||
|
16361
|
16361
16361-22051 Fan[01.2004 - 08.2005] 1AZFSE..ANE1#; 1ZZFE..ZNE14 |
16361-22051 |
US $51.11 |
||
|
16361B
|
16361B
16361-22090 Fan, No.2[01.2003 - 01.2004] 1ZZFE..ZNE14 |
16361-22090 |
US $85.90 |
||
| replacement | |||||
|
16361B
|
16361B
16361-22091 Fan, No.2[01.2003 - 01.2004] 1ZZFE..ZNE14 |
16361-22091 |
US $85.90 |
||
|
16361B
|
16361B
16361-22091 Fan, No.2[01.2004 - 08.2005] 1ZZFE..ZNE14 |
16361-22091 |
US $85.90 |
||
|
16363
|
16363
16363-23010 Motor, Cooling Fan[01.2003 - 08.2005] 1ZZFE..ZNE14 |
16363-23010 |
from US $87.01 |
||
|
16363A
|
16363A
16363-22080 Motor, Cooling Fan, No.2[01.2003 - 08.2005] 1ZZFE..ZNE14 |
16363-22080 |
US $320.32 |
||
|
16400
|
16400
16400-22170 Radiator Assy[01.2003 - 08.2005] 1ZZFE..ZNE14 |
16400-22170 |
US $374.95 |
||
|
16400B
|
16400B
16417-15210 Plug, Radiator Drain Cock[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16417-15210 |
from US $4.11 |
||
|
16400F
|
16400F
16418-15520 Packing(For Radiator Drain Cock)[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16418-15520 |
from US $1.56 |
||
|
16401
|
16401
16401-15520 Cap Sub-Assy, Radiator[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16401-15520 |
from US $19.66 |
||
|
16470
|
16470
16470-22060 Tank Assy, Radiator Reserve[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16470-22060 |
US $54.10 |
||
|
16470A
|
16470A
90445-12049
Hose Or Pipe(For Radiator Reserve Tank)
[01.2003 - 08.2005] 1ZZFE..ZNE1# |
90445-12049 |
— | ||
| replacement | |||||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[01.2003 - 08.2005] 1ZZFE..ZNE1# |
90445-12078 |
from US $6.75 |
||
|
16470E
|
16470E
90480-18010 Grommet, Radiator Reserve Tank Hose[01.2003 - 08.2005] 1ZZFE..ZNE1# |
90480-18010 |
from US $2.15 |
||
|
16471
|
16471
16405-22040 Cap Sub-Assy, Radiator Reserve Tank[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16405-22040 |
US $8.99 |
||
|
16523A
|
16523A
16523-74010 Cushion, Sub-Radiator Support[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16523-74010 |
from US $5.23 |
||
|
16533
|
16533
16533-22030 Support, Radiator, Upper[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16533-22030 |
US $24.46 |
||
|
16535
|
16535
16535-20010 Support, Radiator, Lower[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16535-20010 |
from US $6.38 |
||
|
16571
|
16571
16571-22130 Hose, Radiator, Inlet[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16571-22130 |
from US $29.23 |
||
|
16571A
|
16571A
90466-37002 Clamp Or Clip, Hose(For Radiator Inlet)[01.2003 - 08.2005] 1ZZFE..ZNE1# ＮＯ．１ |
90466-37002 |
from US $6.12 |
||
|
16571A
|
16571A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.2003 - 08.2005] 1ZZFE..ZNE1# ＮＯ．２ |
90467-34004 |
from US $3.43 |
||
|
16571A
|
16571A
96136-43901 Clamp Or Clip, Hose(For Radiator Inlet)[04.2007 - 03.2009] 1ZZFE..ZNE1# ＮＯ．２ |
96136-43901 |
from US $4.30 |
||
|
16571A
|
16571A
96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)[04.2007 - 03.2009] 1ZZFE..ZNE1# ＮＯ．１ |
96136-44301 |
from US $5.56 |
||
|
16572
|
16572
16572-22090 Hose, Radiator, Outlet[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16572-22090 |
from US $30.07 |
||
|
16572A
|
16572A
90466-37002 Clamp Or Clip, Hose(For Radiator Inlet)[01.2003 - 08.2005] 1ZZFE..ZNE1# ＮＯ．１ |
90466-37002 |
from US $6.12 |
||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[01.2003 - 08.2005] 1ZZFE..ZNE1# ＮＯ．２ |
90467-37005 |
from US $3.96 |
||
|
16572A
|
16572A
96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)[04.2007 - 03.2009] 1AZFSE..ANE1# ＮＯ．１ ＆ ＮＯ．２; 1ZZFE..ZNE1# ＮＯ．１ ＆ ＮＯ．２ |
96136-44301 |
from US $5.56 |
||
|
16711
|
16711
16711-22070 Shroud, Fan[01.2003 - 08.2005] 1ZZFE..ZNE14 |
16711-22070 |
US $113.57 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $1.08 |
||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
from US $0.62 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9011906887
|
9011906887
90119-06887 New Genuine Part |
90119-06887 |
US $0.44 |
||
