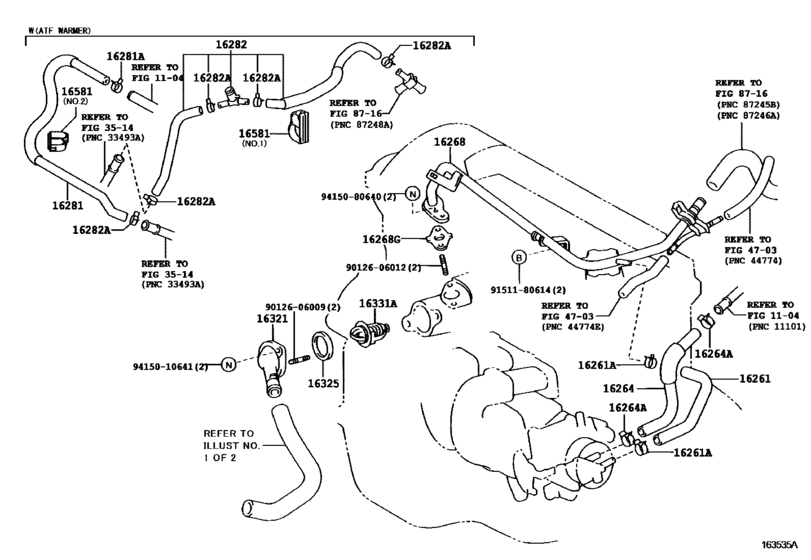

Radiator & Water Outlet ([01.2003 - 08.2005] (0301-0508)1ZZFE ; (0508- )1ZZFE..ZNE14) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-0D030 Hose, Water By-Pass[06.2004 - 08.2005] 1ZZFE..ZNE1# （Ｌ） |
16261-0D030 |
US $1.01 |
||
|
16261
|
16261
16261-22080 Hose, Water By-Pass[01.2003 - 06.2004] 1ZZFE..ZNE1# |
16261-22080 |
from US $6.57 |
||
|
16261A
|
16261A
96135-51300 Clamp, Hose[01.2003 - 10.2003] 1ZZFE..ZNE1# |
96135-51300 |
from US $2.13 |
||
|
16261A
|
16261A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.2003 - 08.2005] 1ZZFE..ZNE1# |
96137-41501 |
from US $2.15 |
||
|
16264
|
16264
16264-0D020
Hose, Water By-Pass, No.2
[06.2004 - 08.2005] 1ZZFE..ZNE1# （Ｌ） |
16264-0D020 |
— | ||
|
16264
|
16264
16264-22090 Hose, Water By-Pass, No.2[01.2003 - 06.2004] 1ZZFE..ZNE1# |
16264-22090 |
from US $6.42 |
||
|
16264A
|
16264A
96135-51300 Clamp, Hose[01.2003 - 10.2003] 1ZZFE..ZNE1# |
96135-51300 |
from US $2.13 |
||
|
16264A
|
16264A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.2003 - 08.2005] 1ZZFE..ZNE1# |
96137-41501 |
from US $2.15 |
||
|
16268
|
16268
16268-22080 Pipe, Water By-Pass, No.1[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16268-22080 |
US $96.10 |
||
| replacement | |||||
|
16268
|
16268
16268-22101 Pipe, Water By-Pass, No.1[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16268-22101 |
from US $58.58 |
||
|
16268
|
16268
16268-22081 Pipe, Water By-Pass, No.1[06.2008 - 03.2009] 1ZZFE..ZNE14 |
16268-22081 |
US $80.08 |
||
| replacement | |||||
|
16268
|
16268
16268-22101 Pipe, Water By-Pass, No.1[06.2008 - 03.2009] 1ZZFE..ZNE14 |
16268-22101 |
from US $58.58 |
||
|
16268G
|
16268G
16258-22010 Gasket(For Water By-Pass Pipe)[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16258-22010 |
from US $2.65 |
||
|
16268G
|
16268G
16258-28030 Gasket(For Heater Return)[06.2008 - 03.2009] 1ZZFE..ZNE1# |
16258-28030 |
from US $2.67 |
||
|
16321
|
16321
16321-22070 Inlet, Water[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16321-22070 |
from US $12.81 |
||
|
16325
|
16325
16325-0H020 Gasket, Water Inlet Housing, No.1[06.2004 - 08.2005] 1ZZFE..ZNE1# （Ｌ） |
16325-0H020 |
US $4.11 |
||
|
16325
|
16325
16325-62010 Gasket, Water Inlet Housing, No.1[01.2003 - 06.2004] 1ZZFE..ZNE1# |
16325-62010 |
from US $4.06 |
||
|
16331A
|
16331A
90916-03129 Thermostat[01.2003 - 08.2005] 1ZZFE..ZNE1# ＊ＷＡＸ ８２−９５ |
90916-03129 |
from US $20.42 |
||
|
9012606009
|
9012606009
90126-06009 STUD HEX LOBULAR |
90126-06009 |
US $2.33 |
||
|
9012606012
|
9012606012
90126-06012 STUD, HEX LOBULAR |
90126-06012 |
from US $1.21 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
|
9415010641
|
9415010641
94150-10641 Nut |
94150-10641 |
US $1.08 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.74 |
||
