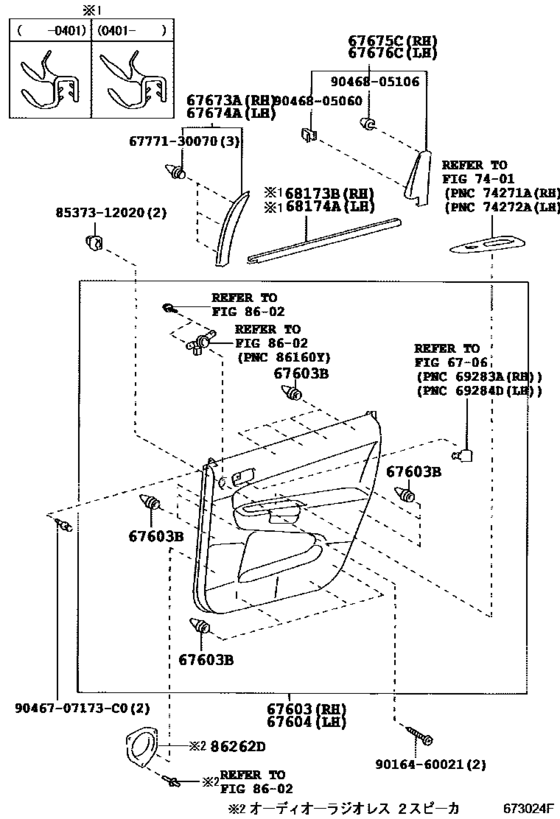

Rear Door Panel & Glass ([01.2003 - ] (0301- )) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67603
|
67603
67630-68010-B1 Board Sub-Assy, Rear Door Trim, Rh[01.2003 - 08.2005] ANE1#,ZNE1# MEDIUM GRAY,TRIM1# |
67630-68010-B1 |
US $436.80 |
||
|
67603
|
67603
67630-68010-B3 Board Sub-Assy, Rear Door Trim, Rh[08.2005 - 06.2008] ZNE1# MEDIUM GRAY,TRIM1# |
67630-68010-B3 |
US $436.80 |
||
|
67603
|
67603
67630-68010-B4 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [06.2007 - 06.2008] ZNE1# Ｌ ＥＤＩＴＩＯＮ,GRAY,TRIM16 |
67630-68010-B4 |
US $436.80 |
||
|
67603
|
67603
67630-68010-B6 Board Sub-Assy, Rear Door Trim, Rh[06.2008 -] ZNE1# Ｘ ”Ａｅｒｏ Ｓｐｏｒｔｓ パッケージ・Ｌｉｍｉｔｅｄ” ＊（Ｇ）,DARK GRAY,TRI M16 |
67630-68010-B6 |
US $436.80 |
||
|
67603
|
67603
67630-68020-B1 Board Sub-Assy, Rear Door Trim, Rh[01.2003 - 08.2005] ANE11,ZNE1# オーディオ−ＪＢＬプレミアムサウンドシステム ９スピーカ,MEDIUM GRAY,TRIM1# |
67630-68020-B1 |
US $690.14 |
||
|
67603
|
67603
67630-68090-B0 Board Sub-Assy, Rear Door Trim, Rh[08.2005 - 03.2009] ANE11 DK.GRAY,TRIM1#; ZNE1# エアロスポーツパッケージ,DK.GRAY,TRIM1#; ZNE1# エアロスポーツパッケージ＆オーディオ−ＨＤＤナビ＋ブラインドコーナーモニター＋６ス ピーカ,DK.GRAY,TRIM1# |
67630-68090-B0 |
US $436.80 |
||
|
67603
|
67603
67630-68100-B0 Board Sub-Assy, Rear Door Trim, Rh[06.2007 - 06.2008] ZNE1# ＡＥＲＯ ＳＰＯＲＴＳ パッケージ Ｌ ＥＤＩＴＩＯＮ,GRAY,TRIM16,17,＊１０４ Ｔ ＹＰＥ Ｂ：イラスト参照 |
67630-68100-B0 |
US $436.80 |
||
| replacement | |||||
|
67603
|
67603
67630-68101-B0 Board Sub-Assy, Rear Door Trim, Rh[06.2007 - 06.2008] ZNE1# ＡＥＲＯ ＳＰＯＲＴＳ パッケージ Ｌ ＥＤＩＴＩＯＮ,GRAY,TRIM16,17,＊１０４ Ｔ ＹＰＥ Ｂ：イラスト参照 |
67630-68101-B0 |
US $436.80 |
||
|
67603
|
67603
67630-68100-C0 Board Sub-Assy, Rear Door Trim, Rh[03.2006 - 06.2007] ZNE1# Ｘリミテッド,DARK GRAY,TRIM1# |
67630-68100-C0 |
US $436.80 |
||
| replacement | |||||
|
67603
|
67603
67630-68101-C0 Board Sub-Assy, Rear Door Trim, Rh[03.2006 - 06.2007] ZNE1# Ｘリミテッド,DARK GRAY,TRIM1# |
67630-68101-C0 |
US $436.80 |
||
|
67603B
|
67603B
90467-09206 Clip, Front Air Shutter Seal[01.2003 - 08.2005] ANE1#,ZNE1# |
90467-09206 |
from US $0.47 |
||
|
67604
|
67604
67640-68010-B1 Board Sub-Assy, Rear Door Trim, Lh[01.2003 - 08.2005] ANE1#,ZNE1# MEDIUM GRAY,TRIM1# |
67640-68010-B1 |
US $436.80 |
||
|
67604
|
67604
67640-68010-B3 Board Sub-Assy, Rear Door Trim, Lh[08.2005 - 06.2008] ZNE1# MEDIUM GRAY,TRIM1# |
67640-68010-B3 |
US $436.80 |
||
|
67604
|
67604
67640-68010-B4 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [06.2007 - 06.2008] ZNE1# Ｌ ＥＤＩＴＩＯＮ,GRAY,TRIM16 |
67640-68010-B4 |
US $436.80 |
||
|
67604
|
67604
67640-68010-B6 Board Sub-Assy, Rear Door Trim, Lh[06.2008 -] ZNE1# Ｘ ”Ａｅｒｏ Ｓｐｏｒｔｓ パッケージ・Ｌｉｍｉｔｅｄ” ＊（Ｇ）,DARK GRAY,TRI M16 |
67640-68010-B6 |
US $436.80 |
||
|
67604
|
67604
67640-68020-B1 Board Sub-Assy, Rear Door Trim, Lh[01.2003 - 08.2005] ANE11,ZNE1# オーディオ−ＪＢＬプレミアムサウンドシステム ９スピーカ,MEDIUM GRAY,TRIM1# |
67640-68020-B1 |
US $690.14 |
||
|
67604
|
67604
67640-68090-B0 Board Sub-Assy, Rear Door Trim, Lh[08.2005 - 03.2009] ANE11 DK.GRAY,TRIM1#; ZNE1# エアロスポーツパッケージ,DK.GRAY,TRIM1#; ZNE1# エアロスポーツパッケージ＆オーディオ−ＨＤＤナビ＋ブラインドコーナーモニター＋６ス ピーカ,DK.GRAY,TRIM1# |
67640-68090-B0 |
US $436.80 |
||
|
67604
|
67604
67640-68100-B0 Board Sub-Assy, Rear Door Trim, Lh[06.2007 - 06.2008] ZNE1# ＡＥＲＯ ＳＰＯＲＴＳ パッケージ Ｌ ＥＤＩＴＩＯＮ,GRAY,TRIM16,17,＊１０４ Ｔ ＹＰＥ Ｂ：イラスト参照 |
67640-68100-B0 |
US $436.80 |
||
| replacement | |||||
|
67604
|
67604
67640-68101-B0 Board Sub-Assy, Rear Door Trim, Lh[06.2007 - 06.2008] ZNE1# ＡＥＲＯ ＳＰＯＲＴＳ パッケージ Ｌ ＥＤＩＴＩＯＮ,GRAY,TRIM16,17,＊１０４ Ｔ ＹＰＥ Ｂ：イラスト参照 |
67640-68101-B0 |
US $436.80 |
||
|
67604
|
67604
67640-68100-C0 Board Sub-Assy, Rear Door Trim, Lh[03.2006 - 06.2007] ZNE1# Ｘリミテッド,DARK GRAY,TRIM1# |
67640-68100-C0 |
US $436.80 |
||
| replacement | |||||
|
67604
|
67604
67640-68101-C0 Board Sub-Assy, Rear Door Trim, Lh[03.2006 - 06.2007] ZNE1# Ｘリミテッド,DARK GRAY,TRIM1# |
67640-68101-C0 |
US $436.80 |
||
|
67673A
|
67673A
67673-68010 Garnish, Rear Door Frame, Rh[01.2003 - 08.2005] ANE1#,ZNE1# |
67673-68010 |
US $33.49 |
||
|
67674A
|
67674A
67674-68010 Garnish, Rear Door Frame, Lh[01.2003 - 08.2005] ANE1#,ZNE1# |
67674-68010 |
US $33.49 |
||
|
67675C
|
67675C
67675-68010 Garnish, Rear Door Frame, No.2 Rh[01.2003 - 08.2005] ANE1#,ZNE1# |
67675-68010 |
US $36.69 |
||
| replacement | |||||
|
67675C
|
67675C
67675-68020 Garnish, Rear Door Frame, No.2 Rh[01.2003 - 08.2005] ANE1#,ZNE1# |
67675-68020 |
US $18.20 |
||
|
67675C
|
67675C
67675-68020 Garnish, Rear Door Frame, No.2 Rh[08.2005 - 03.2009] ANE1#,ZNE1# |
67675-68020 |
US $18.20 |
||
|
67676C
|
67676C
67676-68010 Garnish, Rear Door Frame, No.2 Lh[01.2003 - 08.2005] ANE1#,ZNE1# |
67676-68010 |
US $36.69 |
||
| replacement | |||||
|
67676C
|
67676C
67676-68020 Garnish, Rear Door Frame, No.2 Lh[01.2003 - 08.2005] ANE1#,ZNE1# |
67676-68020 |
US $18.20 |
||
|
67676C
|
67676C
67676-68020 Garnish, Rear Door Frame, No.2 Lh[08.2005 - 03.2009] ANE1#,ZNE1# |
67676-68020 |
US $18.20 |
||
|
68173B
|
68173B
68173-68010
Weatherstrip, Rear Door Glass, Inner Rh
[01.2003 - 01.2004] ANE1#,ZNE1# |
68173-68010 |
— | ||
|
68173B
|
68173B
68173-68020 Weatherstrip, Rear Door Glass, Inner Rh[01.2004 - 08.2005] ANE1#,ZNE1# |
68173-68020 |
US $58.97 |
||
|
68174A
|
68174A
68174-68010
Weatherstrip, Rear Door Glass, Inner Lh
[01.2003 - 01.2004] ANE1#,ZNE1# |
68174-68010 |
— | ||
|
68174A
|
68174A
68174-68020 Weatherstrip, Rear Door Glass, Inner Lh[01.2004 - 08.2005] ANE1#,ZNE1# |
68174-68020 |
US $58.97 |
||
|
6777130070
|
6777130070
67771-30070 Retainer(For Deck Side Trim Panel) |
67771-30070 |
US $3.40 |
||
|
8537312020
|
8537312020
85373-12020 Hose, Windshield Washer (from Joint To Nozzle) |
85373-12020 |
US $3.58 |
||
|
9016460021
|
9016460021
90164-60021 SCREW BINDING |
90164-60021 |
from US $0.66 |
||
|
9046707173C0
|
9046707173C0
90467-07173-C0 Clip(For Front Door Trim Board) |
90467-07173-C0 |
US $1.65 |
||
|
9046805060
|
9046805060
90468-05060 Clip |
90468-05060 |
from US $1.05 |
||
|
9046805106
|
9046805106
90468-05106 Clip, Cool Air Ornament |
90468-05106 |
from US $2.76 |
||
