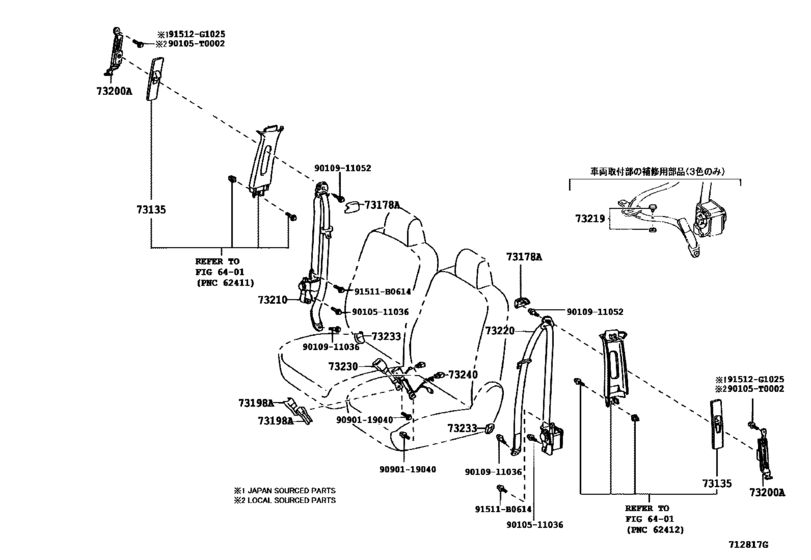

Seat Belt & Child Restraint Seat ([01.2003 - ] ﾌﾛﾝﾄ ｼ-ﾄ (0301- )) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73135
|
73135
73135-28020-B0 Cover, Shoulder Belt Anchorage Plate[01.2003 - 08.2005] ANE1#,ZNE1# LT.GRAY,TRIM1# |
73135-28020-B0 |
US $15.43 |
||
|
73178A
|
73178A
73178-33020-B3 Cap, Seat Belt Anchor Cover[01.2003 - 08.2005] ANE1#,ZNE1# LT.GRAY,TRIM1# |
73178-33020-B3 |
from US $4.68 |
||
|
73198A
|
73198A
73198-68010-C0 Cover, Front Seat Belt Inner Anchor, Rh[01.2003 - 08.2005] ANE1#,ZNE1# BLACK,TRIM1# |
73198-68010-C0 |
US $8.24 |
||
|
73200A
|
73200A
73200-52010-B0 Adjuster Assy, Front Shoulder Belt Anchor[01.2003 - 12.2003] ANE1#,ZNE1# LT.GRAY,TRIM1# |
73200-52010-B0 |
US $44.99 |
||
|
73210
|
73210
73210-68010-C0 Belt Assy, Front Seat Outer, Rh[01.2003 - 08.2005] ANE1#,ZNE1# BLACK,TRIM1# |
73210-68010-C0 |
US $481.60 |
||
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[01.2003 - 08.2005] ANE1#,ZNE1# ブラック |
73219-33010 |
from US $0.90 |
||
|
73219
|
73219
73219-33020 Stopper, Tongue Plate[01.2003 - 08.2005] ANE1#,ZNE1# グレー |
73219-33020 |
from US $0.94 |
||
|
73219
|
73219
73219-33030 Stopper, Tongue Plate[01.2003 - 08.2005] ANE1#,ZNE1# ベージュ |
73219-33030 |
from US $0.92 |
||
|
73220
|
73220
73220-68010-C0 Belt Assy, Front Seat Outer, Lh[01.2003 - 09.2003] ANE1#,ZNE1# BLACK,TRIM1# |
73220-68010-C0 |
US $509.60 |
||
|
73220
|
73220
73220-68011-C0 Belt Assy, Front Seat Outer, Lh[09.2003 - 08.2005] ANE1#,ZNE1# BLACK,TRIM1# |
73220-68011-C0 |
US $423.70 |
||
|
73230
|
73230
73230-68010-C0 Belt Assy, Front Seat Inner, Rh[01.2003 - 08.2005] ANE1#,ZNE1# BLACK,TRIM1# |
73230-68010-C0 |
US $95.12 |
||
|
73233
|
73233
73233-33010-B8 Cover, Seat Belt Anchor[01.2003 - 12.2003] ANE1#,ZNE1# DK.GRAY,TRIM1# |
73233-33010-B8 |
from US $3.41 |
||
|
73240
|
73240
73230-68020-C0 Belt Assy, Front Seat Inner, Lh[01.2003 - 08.2005] ANE1#,ZNE1# BLACK,TRIM1# |
73230-68020-C0 |
US $77.17 |
||
|
90105T0002
|
90105T0002
90105-T0002 New Genuine Part |
90105-T0002 |
US $1.31 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
91512G1025
|
91512G1025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.96 |
||
|
9010511036
|
9010511036
90105-11036 New Genuine Part |
90105-11036 |
US $1.97 |
||
|
9010911036
|
9010911036
90109-11036 BOLT |
90109-11036 |
US $3.32 |
||
|
9010911052
|
9010911052
90109-11052 BOLT |
90109-11052 |
US $2.75 |
||
|
9090119040
|
9090119040
90901-19040 BOLT WWASHER |
90901-19040 |
US $2.15 |
||
| replacement | |||||
|
9090119040
|
9090119040
90084-11055 New Genuine Part |
90084-11055 |
US $6.96 |
||
