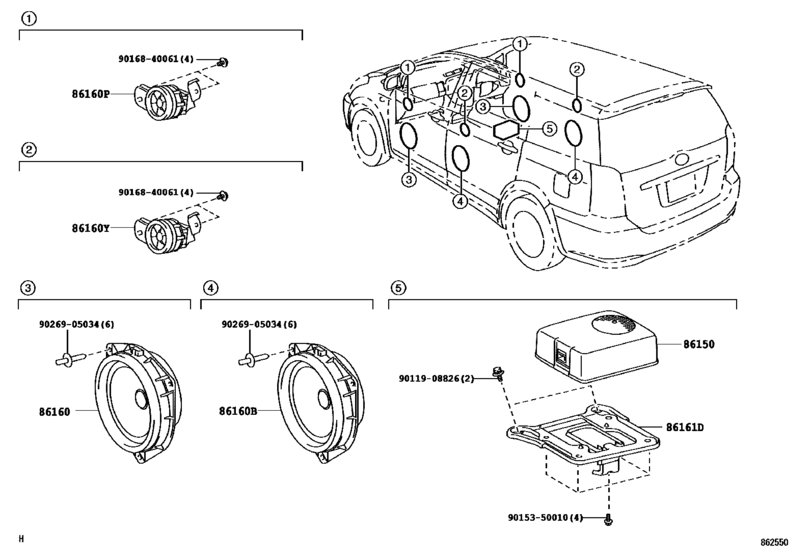

Speaker ([08.2005 - ] (0508- )) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160
|
86160
86160-0W340
Speaker Assy, Front No.1
[01.2003 - 08.2005] ANE11,ZNE1# オーディオ−ＪＢＬプレミアムサウンドシステム ９スピーカ,ＮＯ．１ |
86160-0W340 |
— | ||
|
86160
|
86160
86160-0W530 Speaker Assy, Front No.1[01.2003 - 08.2005] ANE11,ZNE1# オーディオ−ＪＢＬプレミアムサウンドシステム ９スピーカ,ＮＯ．２ |
86160-0W530 |
US $142.69 |
||
|
86160
|
86160
86160-22A10 Speaker Assy, Front No.1[08.2005 - 03.2009] ANE1#,ZNE1# |
86160-22A10 |
US $161.60 |
||
|
86160
|
86160
86160-68090 Speaker Assy, Front No.1[01.2003 - 08.2005] ANE1#,ZNE1# ＮＯ．１ |
86160-68090 |
US $152.01 |
||
|
86160B
|
86160B
86160-0W620 Speaker Assy, Rear[01.2003 - 08.2005] ANE11,ZNE1# オーディオ−ＪＢＬプレミアムサウンドシステム ９スピーカ |
86160-0W620 |
US $152.88 |
||
|
86160B
|
86160B
86160-22A10 Speaker Assy, Front No.1[08.2005 - 03.2009] ANE1#,ZNE1# |
86160-22A10 |
US $161.60 |
||
|
86160B
|
86160B
86160-68090 Speaker Assy, Front No.1[01.2003 - 08.2005] ANE1#,ZNE1# |
86160-68090 |
US $152.01 |
||
|
86160P
|
86160P
86150-68010 Speaker Assy, Front No.2[01.2003 - 04.2004] ANE1#,ZNE1# オーディオ−マルチＡＶステーション,右側 |
86150-68010 |
US $104.83 |
||
|
86160P
|
86160P
86160-0W720 Speaker Assy, Front No.2[01.2003 - 08.2005] ANE11,ZNE1# オーディオ−ＪＢＬプレミアムサウンドシステム ９スピーカ,右側 |
86160-0W720 |
US $80.08 |
||
|
86160P
|
86160P
86160-0W770 Speaker Assy, Front No.2[01.2003 - 08.2005] ANE11,ZNE1# オーディオ−ＪＢＬプレミアムサウンドシステム ９スピーカ,左側 |
86160-0W770 |
US $80.08 |
||
|
86160P
|
86160P
86160-68080 Speaker Assy, Front No.2[01.2003 - 04.2004] ANE1#,ZNE1# オーディオ−マルチＡＶステーション,左側 |
86160-68080 |
US $104.83 |
||
|
86160Y
|
86160Y
86160-0W780 Speaker Assy, Rear No.2[01.2003 - 08.2005] ANE11,ZNE1# オーディオ−ＪＢＬプレミアムサウンドシステム ９スピーカ,右側 |
86160-0W780 |
US $80.08 |
||
|
86160Y
|
86160Y
86160-0W790 Speaker Assy, Rear No.2[01.2003 - 08.2005] ANE11,ZNE1# オーディオ−ＪＢＬプレミアムサウンドシステム ９スピーカ,左側 |
86160-0W790 |
US $80.08 |
||
|
9011908826
|
9011908826
90119-08826 BOLT |
90119-08826 |
US $1.31 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.70 |
||
|
9016840061
|
9016840061
90168-40061 SCREW |
90168-40061 |
from US $0.76 |
||
|
9026905034
|
9026905034
90269-05034 RIVET |
90269-05034 |
from US $1.21 |
