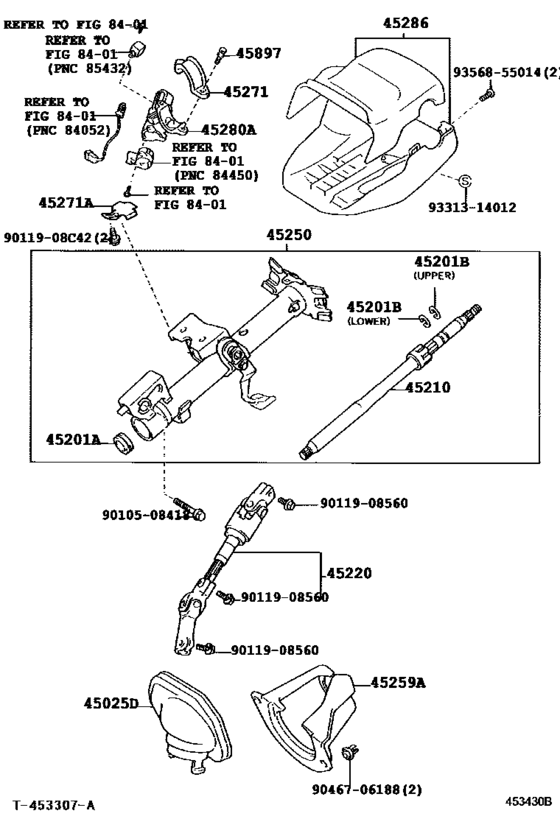

Steering Column & Shaft ([01.2003 - ] (0301- )ZNE14) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-20510 Cover Sub-Assy, Steering Column Hole, No.1[01.2003 - 08.2005] ZNE14 |
45025-20510 |
US $29.99 |
||
|
45201A
|
45201A
45274-42010 Bearing(For Steering Main Shaft)[01.2003 - 08.2005] ANE11,ZNE14 |
45274-42010 |
from US $11.65 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[01.2003 - 08.2005] ANE11,ZNE14 厚さ＝１．２０,下側 |
90520-17042 |
from US $0.82 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[01.2003 - 08.2005] ANE11,ZNE14 厚さ＝１．２０,上側 |
90520-17269 |
US $2.15 |
||
|
45210
|
45210
45210-42020 Shaft Assy, Steering Main[01.2003 - 08.2005] ANE11,ZNE14 |
45210-42020 |
US $256.26 |
||
|
45220
|
45220
45220-68030 Shaft Assy, Steering Intermediate[01.2003 - 08.2005] ZNE14 |
45220-68030 |
US $187.82 |
||
|
45250
|
45250
45250-1E200 Column Assy, Steering[01.2003 - 08.2005] ANE11,ZNE14 |
45250-1E200 |
US $637.73 |
||
|
45259A
|
45259A
45259-68010 Sheet, Column Hole Cover Silencer[01.2003 - 08.2005] ANE1#,ZNE1# |
45259-68010 |
US $15.29 |
||
|
45271
|
45271
45271-16020 Clamp, Steering Column, Upper[01.2003 - 08.2005] ANE1#,ZNE1# |
45271-16020 |
US $9.32 |
||
|
45271A
|
45271A
45271-21010 Clamp, Steering Column, Upper No.2[05.2004 - 08.2005] ANE11,ZNE14 |
45271-21010 |
US $2.91 |
||
|
45271A
|
45271A
45271-52010 Clamp, Steering Column, Upper No.2[01.2003 - 04.2004] ANE11,ZNE14 |
45271-52010 |
US $1.75 |
||
|
45280A
|
45280A
45280-42110 Bracket Assy, Steering Column, Upper[01.2003 - 08.2005] ANE11,ZNE14 |
45280-42110 |
US $183.46 |
||
| replacement | |||||
|
45280A
|
45280A
45280-42120 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [01.2003 - 08.2005] ANE11,ZNE14 |
45280-42120 |
US $222.77 |
||
|
45286
|
45286
45286-12967-B2 Cover, Steering Column[01.2003 - 08.2005] ZNE1# DK.GRAY,TRIM1# |
45286-12967-B2 |
US $53.99 |
||
|
45286
|
45286
45286-12967-C0 Cover, Steering Column[08.2005 - 03.2009] ZNE1# BLACK,TRIM1# |
45286-12967-C0 |
US $55.33 |
||
| replacement | |||||
|
45286
|
45286
45286-12967-B2 Cover, Steering Column[08.2005 - 03.2009] ZNE1# BLACK,TRIM1# |
45286-12967-B2 |
US $53.99 |
||
|
45286
|
45286
45286-12970-B0 Cover, Steering Column[01.2003 - 08.2005] ZNE1# ヘッドランプ−ディスチャージ,DK.GRAY,TRIM1# |
45286-12970-B0 |
US $55.47 |
||
| replacement | |||||
|
45286
|
45286
45286-12970-C0 Cover, Steering Column[01.2003 - 08.2005] ZNE1# ヘッドランプ−ディスチャージ,DK.GRAY,TRIM1# |
45286-12970-C0 |
US $53.81 |
||
|
45286
|
45286
45286-12970-C0 Cover, Steering Column[08.2005 - 03.2007] ZNE1# ヘッドランプ−ディスチャージ,BLACK,TRIM1# |
45286-12970-C0 |
US $53.81 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[01.2003 - 08.2005] ANE1#,ZNE1# |
45897-12020 |
from US $2.63 |
||
|
9011908C42
|
9011908C42
90119-08C42 New Genuine Part |
90119-08C42 |
US $1.43 |
||
|
9010508418
|
9010508418
90105-08418 New Genuine Part |
90105-08418 |
US $1.75 |
||
| replacement | |||||
|
9010508418
|
9010508418
91551-80855 New Genuine Part |
91551-80855 |
US $1.79 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.87 |
||
|
9331314012
|
9331314012
93313-14012 SCREW |
93313-14012 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
