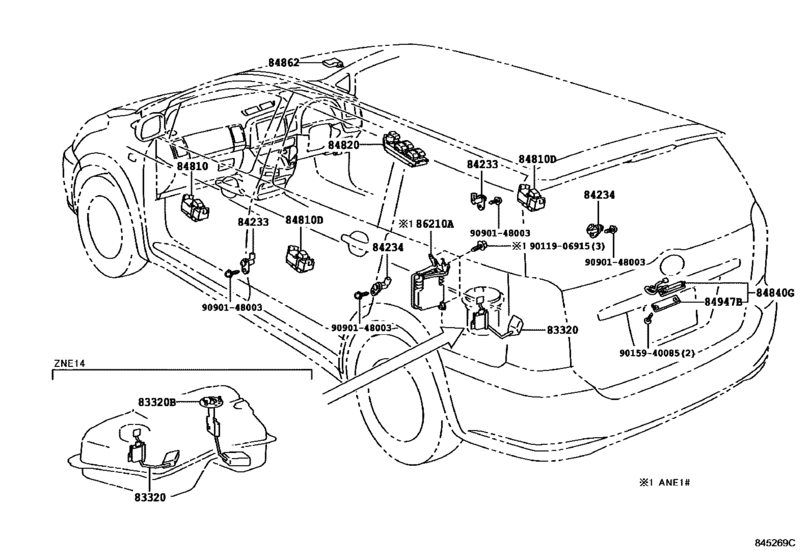

Switch & Relay & Computer ([01.2003 - ] ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ (0301- )) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-68020 Gage Assy, Fuel Sender[01.2003 - 08.2005] ZNE14 |
83320-68020 |
US $74.26 |
||
|
83320B
|
83320B
83320-68030 Gage Assy, Fuel Sender, No.2[01.2003 - 08.2005] ZNE14 |
83320-68030 |
US $120.85 |
||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[01.2003 - 08.2005] ANE1#,ZNE1# |
84231-53010 |
from US $11.83 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[01.2003 - 08.2005] ANE1#,ZNE1# |
84231-53010 |
from US $11.83 |
||
|
84810
|
84810
84030-68010 Switch Assy, Power Window Regulator[01.2003 - 12.2003] ANE1#,ZNE1# |
84030-68010 |
US $104.83 |
||
| replacement | |||||
|
84810
|
84810
84030-68012 Switch Assy, Power Window Regulator[01.2003 - 12.2003] ANE1#,ZNE1# |
84030-68012 |
US $85.90 |
||
|
84810
|
84810
84030-68011 Switch Assy, Power Window Regulator[12.2003 - 08.2005] ANE1#,ZNE1# |
84030-68011 |
US $103.38 |
||
| replacement | |||||
|
84810
|
84810
84030-68012 Switch Assy, Power Window Regulator[12.2003 - 08.2005] ANE1#,ZNE1# |
84030-68012 |
US $85.90 |
||
|
84810
|
84810
84030-68012 Switch Assy, Power Window Regulator[05.2006 - 03.2009] ANE1#,ZNE1# |
84030-68012 |
US $85.90 |
||
|
84810D
|
84810D
84030-68010 Switch Assy, Power Window Regulator[01.2003 - 12.2003] ANE1#,ZNE1# |
84030-68010 |
US $104.83 |
||
| replacement | |||||
|
84810D
|
84810D
84030-68012 Switch Assy, Power Window Regulator[01.2003 - 12.2003] ANE1#,ZNE1# |
84030-68012 |
US $85.90 |
||
|
84810D
|
84810D
84030-68011 Switch Assy, Power Window Regulator[12.2003 - 08.2005] ANE1#,ZNE1# |
84030-68011 |
US $103.38 |
||
| replacement | |||||
|
84810D
|
84810D
84030-68012 Switch Assy, Power Window Regulator[12.2003 - 08.2005] ANE1#,ZNE1# |
84030-68012 |
US $85.90 |
||
|
84810D
|
84810D
84030-68012 Switch Assy, Power Window Regulator[05.2006 - 03.2009] ANE1#,ZNE1# |
84030-68012 |
US $85.90 |
||
|
84820
|
84820
84040-68010 Master Switch Assy, Power Window Regulator[01.2003 - 08.2005] ANE1#,ZNE1# |
84040-68010 |
US $355.26 |
||
| replacement | |||||
|
84820
|
84820
84040-68011 Master Switch Assy, Power Window Regulator[01.2003 - 08.2005] ANE1#,ZNE1# |
84040-68011 |
US $411.84 |
||
|
84820
|
84820
84040-68011 Master Switch Assy, Power Window Regulator[05.2006 - 03.2009] ANE1#,ZNE1# |
84040-68011 |
US $411.84 |
||
|
84840G
|
84840G
84840-68010 Switch Assy, Back Door Opener[01.2003 - 08.2005] ANE1#,ZNE1# |
84840-68010 |
US $61.99 |
||
|
84862
|
84862
84862-63010-B0 Switch, Slide Roof Motor[01.2003 - 08.2005] ANE1#,ZNE1# 有り（電動チルト＆スライドムーンルーフ）,LT.GRAY,TRIM1# |
84862-63010-B0 |
US $56.61 |
||
|
84947B
|
84947B
69219-68010 Cover, Switch[01.2003 - 08.2005] ANE1#,ZNE1# |
69219-68010 |
US $6.81 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9015940085
|
9015940085
90159-40085 SCREW |
90159-40085 |
from US $0.72 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.97 |
||
