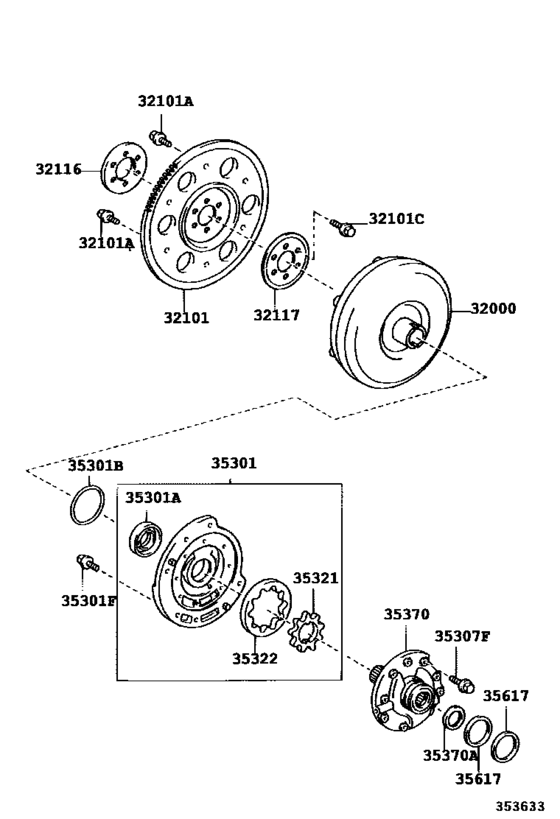

Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - 03.2009] U341E,U341F (0301-0903)ZNE1#) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-63010 Converter Assy, Torque[01.2003 - 08.2005] ZNE14 |
32000-63010 |
US $1,799.62 |
||
| replacement | |||||
|
32000
|
32000
32000-63011 Converter Assy, Torque[01.2003 - 08.2005] ZNE14 |
32000-63011 |
US $1,674.40 |
||
|
32000
|
32000
32000-63011 Converter Assy, Torque[12.2006 - 03.2009] ZNE14 |
32000-63011 |
US $1,674.40 |
||
|
32101
|
32101
32101-12090 Gear Sub-Assy, Drive Plate & Ring[01.2003 - 02.2003] ZNE1# |
32101-12090 |
US $247.52 |
||
| replacement | |||||
|
32101
|
32101
32101-12091 Gear Sub-Assy, Drive Plate & Ring[01.2003 - 02.2003] ZNE1# |
32101-12091 |
from US $162.53 |
||
|
32101
|
32101
32101-12091 Gear Sub-Assy, Drive Plate & Ring[02.2003 - 08.2005] ZNE1# |
32101-12091 |
from US $162.53 |
||
|
32101A
|
32101A
90109-08107 Bolt(For Drive Plate & Torque Converter Setting)[01.2003 - 08.2005] ZNE1# ＊８−１．２５ＰＸ１２−８．４,グリーン |
90109-08107 |
US $3.40 |
||
|
32101A
|
32101A
90109-08113 Bolt(For Drive Plate & Torque Converter Setting)[11.2008 - 03.2009] ZNE1# ＊８−１．２５ＰＸ１２−８．４,グリーン |
90109-08113 |
US $1.43 |
||
|
32101A
|
32101A
90119-08269 Bolt(For Drive Plate & Torque Converter Setting)[01.2003 - 08.2005] ZNE1# ＊８−１．２５ＰＸ１２−８,ブラック |
90119-08269 |
US $3.05 |
||
|
32101A
|
32101A
90119-08498 Bolt(For Drive Plate & Torque Converter Setting)[11.2008 - 03.2009] ZNE1# ＊８−１．２５ＰＸ１２−８,ブラック |
90119-08498 |
from US $0.80 |
||
|
32101C
|
32101C
90105-10048 Bolt, Flywheel Setting[01.2003 - 08.2005] ZNE1# ＊１０−１．２５ＰＸ１８−１３ |
90105-10048 |
from US $1.11 |
||
|
32116
|
32116
32116-12020 Spacer, Drive Plate, Front[01.2003 - 08.2005] ZNE1# |
32116-12020 |
US $9.03 |
||
|
32117
|
32117
32117-12030 Spacer, Drive Plate, Rear[01.2003 - 08.2005] ZNE1# |
32117-12030 |
US $6.84 |
||
|
35301
|
35301
35035-52040 Body Sub-Assy, Front Oil Pump[01.2003 - 08.2005] ZNE1# |
35035-52040 |
US $190.44 |
||
|
35301A
|
35301A
90311-38064 Seal, Oil (For Front Oil Pump)[01.2003 - 08.2005] ZNE1# |
90311-38064 |
from US $5.20 |
||
|
35301B
|
35301B
90301-99124 Ring, O (For Front Oil Pump Body)[01.2003 - 08.2005] ZNE1# |
90301-99124 |
from US $3.20 |
||
|
35301F
|
35301F
90105-08301 Bolt (For Front Oil Pump Setting)[01.2003 - 08.2005] ZNE1# ＊８−１．２５ＰＸ２２−２０ |
90105-08301 |
US $1.10 |
||
|
35307F
|
35307F
90148-60027 Bolt (For Stator Shaft)[01.2003 - 08.2005] ZNE1# |
90148-60027 |
US $0.73 |
||
|
35321
|
35321
35321-52060 Gear, Front Oil Pump Drive[01.2003 - 08.2005] ZNE1# 厚さ＝９．４４−９．４４９，マーク １ |
35321-52060 |
US $30.23 |
||
|
35321
|
35321
35321-52070 Gear, Front Oil Pump Drive[01.2003 - 08.2005] ZNE1# 厚さ＝９．４５−９．４５９，マーク ２ |
35321-52070 |
US $30.23 |
||
|
35321
|
35321
35321-52080 Gear, Front Oil Pump Drive[01.2003 - 08.2005] ZNE1# 厚さ＝９．４６−９．４７，マーク ３ |
35321-52080 |
US $31.16 |
||
|
35321
|
35321
35321-52090 Gear, Front Oil Pump Drive[01.2003 - 08.2005] ZNE1# 厚さ＝９．４７１−９．４８，マーク ４ |
35321-52090 |
US $31.16 |
||
|
35321
|
35321
35321-52100 Gear, Front Oil Pump Drive[01.2003 - 08.2005] ZNE1# 厚さ＝９．４８１−９．４９，マーク ５ |
35321-52100 |
US $31.16 |
||
|
35322
|
35322
35322-52060 Gear, Front Oil Pump Driven[01.2003 - 08.2005] ZNE1# 厚さ＝９．４４−９．４４９，マーク １ |
35322-52060 |
US $26.21 |
||
|
35322
|
35322
35322-52070 Gear, Front Oil Pump Driven[01.2003 - 08.2005] ZNE1# 厚さ＝９．４５−９．４５９，マーク ２ |
35322-52070 |
US $26.21 |
||
|
35322
|
35322
35322-52080 Gear, Front Oil Pump Driven[01.2003 - 08.2005] ZNE1# 厚さ＝９．４６−９．４７，マーク ３ |
35322-52080 |
US $26.21 |
||
|
35322
|
35322
35322-52090 Gear, Front Oil Pump Driven[01.2003 - 08.2005] ZNE1# 厚さ＝９．４７１−９．４８，マーク ４ |
35322-52090 |
US $26.21 |
||
|
35322
|
35322
35322-52100 Gear, Front Oil Pump Driven[01.2003 - 08.2005] ZNE1# 厚さ＝９．４８１−９．４９ マーク ５ |
35322-52100 |
US $26.21 |
||
|
35370
|
35370
35370-52030 Shaft Assy, Stator[01.2003 - 08.2005] ZNE1# |
35370-52030 |
US $321.78 |
||
| replacement | |||||
|
35370
|
35370
35370-52070 Shaft Assy, Stator[01.2003 - 08.2005] ZNE1# |
35370-52070 |
US $200.93 |
||
|
35370
|
35370
35370-52070 Shaft Assy, Stator[01.2006 - 03.2009] ZNE1# |
35370-52070 |
US $200.93 |
||
|
35370A
|
35370A
90374-26003 Bearing, Thrust Needle Roller(For Stator Shaft)[01.2003 - 08.2005] ZNE1# |
90374-26003 |
US $12.08 |
||
|
35617
|
35617
35613-52010 Ring, Clutch Drum Oil Seal[01.2003 - 08.2005] ZNE1# |
35613-52010 |
US $2.62 |
||
| replacement | |||||
|
35617
|
35617
35613-52020 Ring, Clutch Drum Oil Seal[01.2003 - 08.2005] ZNE1# |
35613-52020 |
US $1.51 |
||
|
35617
|
35617
35613-52020 Ring, Clutch Drum Oil Seal[12.2006 - 03.2009] ZNE1# |
35613-52020 |
US $1.51 |
||
