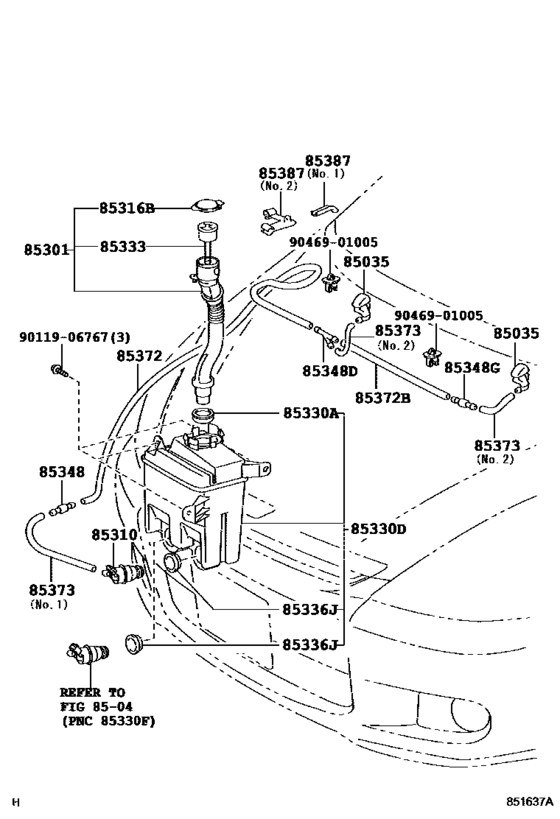

Windshield Washer ([01.2003 - ] (0301- )) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-68010 Nozzle Sub-Assy, Washer[01.2003 - 08.2005] ANE1#,ZNE1# |
85381-68010 |
from US $16.38 |
||
|
85301
|
85301
85301-68010
Inlet Sub-Assy, Washer
[01.2003 - 08.2005] ANE1#,ZNE1# |
85301-68010 |
— | ||
|
85310
|
85310
85330-21010 Motor And Pump Assy, Windshield Washer[01.2003 - 08.2005] ANE1#,ZNE1# |
85330-21010 |
from US $49.97 |
||
|
85316B
|
85316B
85316-33120 Cap, Washer, Inlet[01.2003 - 08.2005] ANE1#,ZNE1# |
85316-33120 |
from US $1.54 |
||
|
85330A
|
85330A
85336-30160 Bush, Windshield Washer Jar[01.2003 - 08.2005] ANE1#,ZNE1# |
85336-30160 |
from US $3.32 |
||
|
85330D
|
85330D
85315-68010
Jar Assy, Washer
[01.2003 - 08.2005] ANE1#,ZNE1# |
85315-68010 |
— | ||
|
85333
|
85333
85312-68010
Filter, Windshield Washer Jar
[01.2003 - 08.2005] ANE1#,ZNE1# |
85312-68010 |
— | ||
|
85336J
|
85336J
85336-60300 Bush, Windshield Washer Jar[01.2003 - 08.2005] ANE1#,ZNE1# |
85336-60300 |
from US $1.92 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[01.2003 - 08.2005] ANE1#,ZNE1# |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85348-12250 Joint, Windshield Washer Hose, No.1[01.2003 - 08.2005] ANE1#,ZNE1# |
85348-12250 |
from US $0.55 |
||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[01.2003 - 08.2005] ANE1#,ZNE1# |
85349-89122 |
from US $1.25 |
||
|
85372
|
85372
90446-07001 Hose, Windshield Washer (From Motor To Joint)[01.2003 - 08.2005] ANE1#,ZNE1# *H,L=1750 |
90446-07001 |
from US $1.75 |
||
|
85372B
|
85372B
90099-59024
Hose, Windshield Washer (From Joint To Joint), No.2
[01.2003 - 08.2005] ANE1#,ZNE1# *H,L=470 |
90099-59024 |
— | ||
| replacement | |||||
|
85372B
|
85372B
90446-07001 Hose, Windshield Washer (From Motor To Joint)[01.2003 - 08.2005] ANE1#,ZNE1# *H,L=470 |
90446-07001 |
from US $1.75 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2003 - 08.2005] ANE1#,ZNE1# *H,L=200,NO.1 |
90099-33080 |
from US $5.38 |
||
|
85373
|
85373
90099-33299 Joint, Windshield Washer Elbow, No.2[01.2003 - 08.2005] ANE1#,ZNE1# *H,L=150,NO.2 |
90099-33299 |
from US $4.37 |
||
|
85387
|
85387
85387-13160
Clamp No.1 (For Windseield Washer)
[01.2003 - 08.2005] ANE1#,ZNE1# NO.1 |
85387-13160 |
— | ||
|
85387
|
85387
85387-22410 Clamp No.1 (For Windseield Washer)[01.2003 - 08.2005] ANE1#,ZNE1# NO.2 |
85387-22410 |
from US $3.14 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.68 |
||
|
9046901005
|
9046901005
90469-01005 New Genuine Part |
90469-01005 |
US $3.05 |
||
