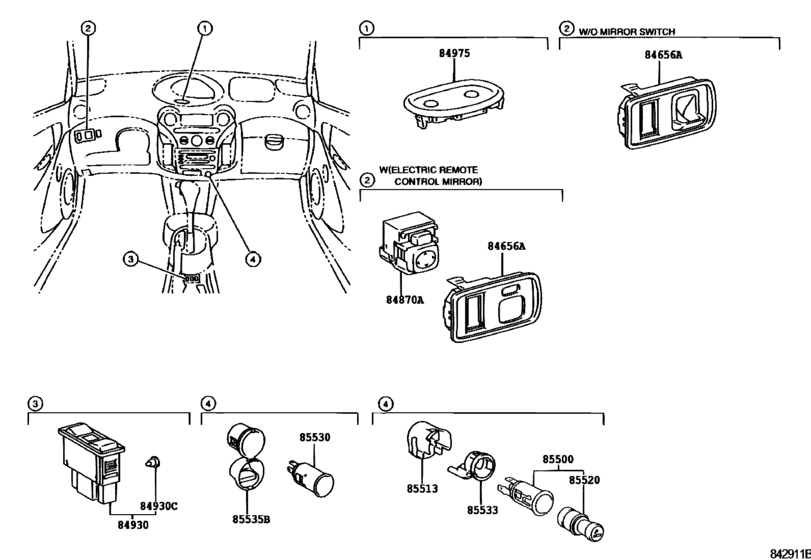

Switch & Relay & Computer ([08.1999 - ] INSTRUMENT PANEL (9908- )LHD) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- NCP10
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 08.1999
- To
- 08.2005
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84656A
|
84656A
84656-52010-B0 Bezel, Switch[03.1999 - 12.2002] NCP10,SCP10 W(ELECTRIC REMOTE CONTROL MIRROR),MD.GRAY,TRIM1# |
84656-52010-B0 |
US $17.91 |
||
| replacement | |||||
|
84656A
|
84656A
84656-52010-B5 Bezel, Switch[03.1999 - 12.2002] NCP10,SCP10 W(ELECTRIC REMOTE CONTROL MIRROR),MD.GRAY,TRIM1# |
84656-52010-B5 |
US $17.91 |
||
|
84656A
|
84656A
84656-52010-B4 Bezel, Switch[12.2002 - 08.2005] NCP10,SCP10 W(ELECTRIC REMOTE CONTROL MIRROR),MD.GRAY,TRIM98 |
84656-52010-B4 |
US $17.91 |
||
| replacement | |||||
|
84656A
|
84656A
84656-52010-B5 Bezel, Switch[12.2002 - 08.2005] NCP10,SCP10 W(ELECTRIC REMOTE CONTROL MIRROR),MD.GRAY,TRIM98 |
84656-52010-B5 |
US $17.91 |
||
|
84656A
|
84656A
84656-52010-B5 Bezel, Switch[12.2002 - 08.2005] NCP13 W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM9#; NCP10,SCP10..GEN W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM97; NCP10..ARL W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM97,99 |
84656-52010-B5 |
US $17.91 |
||
|
84656A
|
84656A
84656-52010-G0 Bezel, Switch[03.1999 - 12.2002] NCP10,SCP10 W(ELECTRIC REMOTE CONTROL MIRROR),MIST GREEN,TRIM7# |
84656-52010-G0 |
US $17.91 |
||
| replacement | |||||
|
84656A
|
84656A
84656-52010-B5 Bezel, Switch[03.1999 - 12.2002] NCP10,SCP10 W(ELECTRIC REMOTE CONTROL MIRROR),MIST GREEN,TRIM7# |
84656-52010-B5 |
US $17.91 |
||
|
84656A
|
84656A
84656-52030-B0 Bezel, Switch[03.1999 - 12.2002] NCP10,SCP10 MD.GRAY,TRIM1# |
84656-52030-B0 |
US $18.64 |
||
| replacement | |||||
|
84656A
|
84656A
84656-52030-B4 Bezel, Switch[03.1999 - 12.2002] NCP10,SCP10 MD.GRAY,TRIM1# |
84656-52030-B4 |
US $18.64 |
||
|
84656A
|
84656A
84656-52030-B3 Bezel, Switch[12.2002 - 08.2005] NCP10,SCP10 MD.GRAY,TRIM98 |
84656-52030-B3 |
US $18.64 |
||
| replacement | |||||
|
84656A
|
84656A
84656-52030-B4 Bezel, Switch[12.2002 - 08.2005] NCP10,SCP10 MD.GRAY,TRIM98 |
84656-52030-B4 |
US $18.64 |
||
|
84656A
|
84656A
84656-52030-B4 Bezel, Switch[12.2002 - 08.2005] NCP13 DK.GRAY,TRIM9#; NCP10,SCP10..GEN DK.GRAY,TRIM97; NCP10..ARL DK.GRAY,TRIM97,99 |
84656-52030-B4 |
US $18.64 |
||
|
84656A
|
84656A
84656-52030-G0 Bezel, Switch[03.1999 - 12.2002] NCP10,SCP10 MIST GREEN,TRIM7# |
84656-52030-G0 |
US $18.64 |
||
| replacement | |||||
|
84656A
|
84656A
84656-52030-B4 Bezel, Switch[03.1999 - 12.2002] NCP10,SCP10 MIST GREEN,TRIM7# |
84656-52030-B4 |
US $18.64 |
||
|
84870A
|
84870A
84872-52030 Switch Assy, Outer Mirror[05.1999 - 12.2002] NCP1#,SCP10 |
84872-52030 |
US $53.29 |
||
|
84930
|
84930
84930-52010 Switch Assy, Door Control[08.1999 - 12.2002] NCP10 |
84930-52010 |
US $69.01 |
||
|
84930C
|
84930C
84999-10310 Bulb, Air Conditioner Control[08.1999 - 12.2002] NCP10 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84975
|
84975
84975-52030-B0
Switch, Trip
[08.1999 - 12.2002] NCP10 W(TACHOMETER---KM/H),SHADOW GRAY,TRIM1# |
84975-52030-B0 |
— | ||
| replacement | |||||
|
84975
|
84975
84975-52030-B2
Switch, Trip
[08.1999 - 12.2002] NCP10 W(TACHOMETER---KM/H),SHADOW GRAY,TRIM1# |
84975-52030-B2 |
— | ||
|
84975
|
84975
84975-52030-H0 Switch, Trip[08.1999 - 12.2002] NCP10 W(TACHOMETER---KM/H),FRENCH TURQUOISE,TRIM7# |
84975-52030-H0 |
US $61.30 |
||
| replacement | |||||
|
84975
|
84975
84975-52030-B2
Switch, Trip
[08.1999 - 12.2002] NCP10 W(TACHOMETER---KM/H),FRENCH TURQUOISE,TRIM7# |
84975-52030-B2 |
— | ||
|
84975
|
84975
84975-52160-B1 Switch, Trip[12.2002 - 08.2005] NCP13 DK.GRAY,TRIM9#; NCP10..GEN DK.GRAY,TRIM97,98; NCP10..ARL DK.GRAY,TRIM97,98,99 |
84975-52160-B1 |
US $60.13 |
||
| replacement | |||||
|
84975
|
84975
84975-52150-B0 Switch, TripTRIP [12.2002 - 08.2005] NCP13 DK.GRAY,TRIM9#; NCP10..GEN DK.GRAY,TRIM97,98; NCP10..ARL DK.GRAY,TRIM97,98,99 |
84975-52150-B0 |
US $61.44 |
||
|
85500
|
85500
85500-28050 Lighter Assy, Cigarette[03.1999 - 12.2002] NCP1#,SCP10 |
85500-28050 |
from US $27.79 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[03.1999 - 12.2002] NCP1#,SCP10 |
85513-12020 |
from US $5.21 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[12.2002 -] NCP1#,SCP10 |
85513-28010 |
from US $2.65 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[12.2002 -] NCP1#,SCP10 |
85520-28010 |
from US $17.90 |
||
|
85530
|
85530
85530-33020 Socket Assy, Power Outlet, No.1[03.1999 - 12.2002] NCP1#,SCP10 |
85530-33020 |
from US $16.05 |
||
| replacement | |||||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[03.1999 - 12.2002] NCP1#,SCP10 |
85530-06010 |
from US $26.06 |
||
|
85533
|
85533
85533-30060 Lens, Cigarette Lighter Indicator[03.1999 - 12.2002] NCP1#,SCP10 |
85533-30060 |
from US $28.73 |
||
|
85535B
|
85535B
85535-52010 Cover, Power Outlet Socket, No.1[03.1999 - 12.2002] NCP1#,SCP10 |
85535-52010 |
US $11.36 |
||
| replacement | |||||
|
85535B
|
85535B
85535-47020 Cover, Power Outlet Socket, No.1[03.1999 - 12.2002] NCP1#,SCP10 |
85535-47020 |
US $13.60 |
||
|
85535B
|
85535B
85535-52050 Cover, Power Outlet Socket, No.1[12.2002 -] NCP1#,SCP10 |
85535-52050 |
US $11.65 |
||
| replacement | |||||
|
85535B
|
85535B
85535-52051 Cover, Power Outlet Socket, No.1[12.2002 -] NCP1#,SCP10 |
85535-52051 |
US $13.60 |
||
