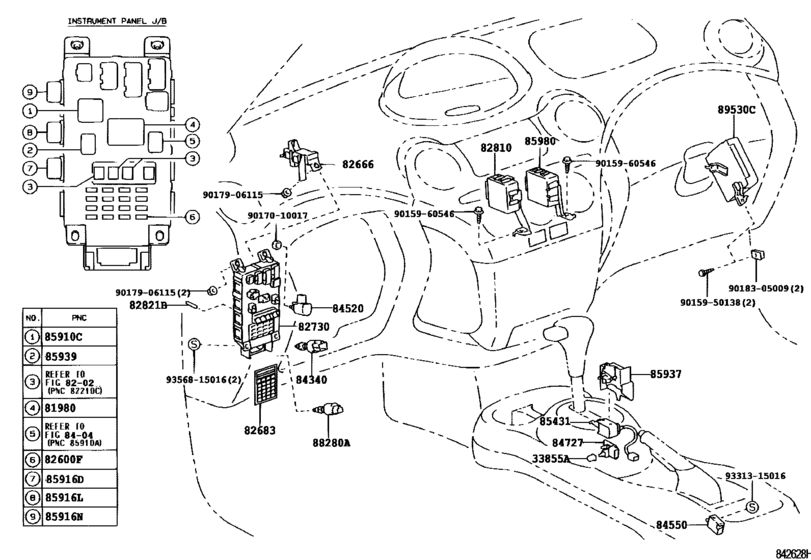

Switch & Relay & Computer ([01.1999 - 12.2002] COWL (9901-0212)JPP..LHD) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 1999 - 2002
- Sales region
- Europe
- Frame
- NCP10
- grade
- SOL
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- From
- 08.1999
- To
- 12.2002
- Gear Shift Type
- 4FC
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33855A
|
33855A
33855-52010 Cover, Shift Lock Unit[08.1999 - 12.2002] NCP10..JPP..4FC |
33855-52010 |
US $1.16 |
||
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[08.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP |
81980-50030 |
from US $52.79 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82666
|
82666
82666-52010 Holder, Connector[01.1999 - 12.2002] NCP1#,SCP10..JPP |
82666-52010 |
US $17.91 |
||
|
82683
|
82683
82683-52020 Plate, Fuse Block CautionFUSE BLOCK CAUTION [01.1999 - 09.2001] NCP10,SCP10..JPP |
82683-52020 |
US $3.35 |
||
|
82683
|
82683
82683-52090 Plate, Fuse Block CautionFUSE BLOCK CAUTION [09.2001 - 08.2002] NCP10,NLP10,SCP10..JPP |
82683-52090 |
US $3.64 |
||
| replacement | |||||
|
82683
|
82683
82683-52200 Plate, Fuse Block CautionFUSE BLOCK CAUTION [09.2001 - 08.2002] NCP10,NLP10,SCP10..JPP |
82683-52200 |
US $3.79 |
||
|
82683
|
82683
82683-52170 Plate, Fuse Block CautionFUSE BLOCK CAUTION [08.2002 - 12.2002] NCP10,NLP10,SCP10..JPP |
82683-52170 |
US $3.64 |
||
| replacement | |||||
|
82683
|
82683
82683-52200 Plate, Fuse Block CautionFUSE BLOCK CAUTION [08.2002 - 12.2002] NCP10,NLP10,SCP10..JPP |
82683-52200 |
US $3.79 |
||
|
82730
|
82730
82732-52020 Block Assy, Instrument Panel Junction[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP |
82732-52020 |
US $184.91 |
||
|
82730
|
82730
82732-52030 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [10.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) W(DAY TIME RUNNING LIGHT SYSTEM) |
82732-52030 |
US $278.10 |
||
|
82810
|
82810
82810-52020 Relay Assy, Running LightRUNNING LIGHT [01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
82810-52020 |
US $209.66 |
||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[01.1999 - 12.2002] NCP1#,SCP10..JPP |
84340-32050 |
from US $19.29 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP |
84550-30080 |
from US $18.39 |
||
|
84727
|
84727
84727-52010 Switch, Shift Lock Control[08.1999 - 12.2002] NCP10..JPP..4FC |
84727-52010 |
US $43.39 |
||
| replacement | |||||
|
84727
|
84727
84727-52H01 Switch, Shift Lock Control[08.1999 - 12.2002] NCP10..JPP..4FC |
84727-52H01 |
US $36.11 |
||
|
85431
|
85431
85431-52010 Solenoid, Shift Lock[08.1999 - 12.2002] NCP10..JPP..4FC |
85431-52010 |
US $34.07 |
||
|
85910C
|
85910C
90987-04006 Relay Assy (For Heater Blower Motor)[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP |
90987-04006 |
US $60.13 |
||
| replacement | |||||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP |
90987-04010 |
from US $42.71 |
||
|
85916N
|
85916N
90987-02012 Relay, Ignition, No.1[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
90987-02012 |
from US $27.85 |
||
|
85937
|
85937
85937-52010 Protector, Shift Lock Control[08.1999 - 12.2002] NCP10..JPP..4FC |
85937-52010 |
US $10.34 |
||
|
85939
|
85939
90987-02012 Relay, Ignition, No.1[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
90987-02012 |
from US $27.85 |
||
|
85980
|
85980
85980-52031
Relay Assy, Door Control
[08.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
85980-52031 |
— | ||
|
85980
|
85980
85980-52051
Relay Assy, Door Control
[08.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(KEY LESS ENTRY) |
85980-52051 |
— | ||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.12 |
||
|
9015960546
|
9015960546
90159-60546 New Genuine Part |
90159-60546 |
US $0.96 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9018305009
|
9018305009
90183-05009 New Genuine Part |
90183-05009 |
US $1.44 |
||
|
9331315016
|
9331315016
93313-15016 New Genuine Part |
93313-15016 |
US $0.73 |
||
|
9356815016
|
9356815016
93568-15016
Sensor, Automatic Light Control
|
93568-15016 |
— | ||
| replacement | |||||
|
9356815016
|
9356815016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
