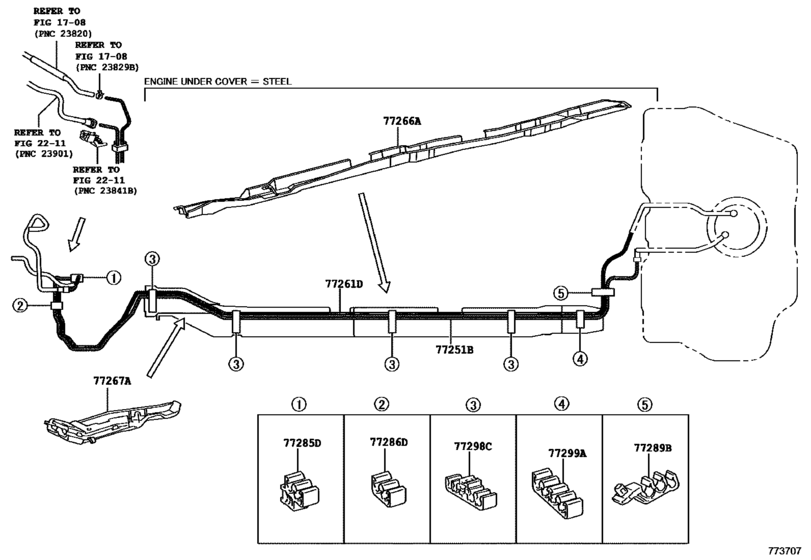

Fuel Tank & Tube ([04.2013 - ] FUEL TUBE (1304- )NCP15#) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2014 - 2016
- Sales region
- General
- Frame
- NCP150
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- VN
- CATEGORY
- B
- From
- 03.2014
- To
- 08.2016
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-0D340
Tube, Fuel Main
[04.2013 - 08.2016] NCP15#..(GCC,GEN,IDN,TH,VN)..B |
77251-0D340 |
— | ||
|
77261D
|
77261D
77261-0D280 Tube, Fuel Tank To Canister[04.2013 - 08.2016] NCP15#..(GCC,GEN,IDN,TH,VN)..B |
77261-0D280 |
US $34.09 |
||
|
77267A
|
77267A
77267-0D060
Protector, Fuel Tube, No.2
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B |
77267-0D060 |
— | ||
|
77285D
|
77285D
77285-0D140
Clamp, Fuel Tube, No.1
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B |
77285-0D140 |
— | ||
|
77286D
|
77286D
77286-0D120
Clamp, Fuel Tube, No.2
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B |
77286-0D120 |
— | ||
|
77289B
|
77289B
77289-0D090
Clamp, Fuel Tube, No.3
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B |
77289-0D090 |
— | ||
|
77298C
|
77298C
77298-0D110
Clamp, Fuel Tube, No.4
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B |
77298-0D110 |
— | ||
|
77299A
|
77299A
77299-0D070
Clamp, Fuel Tube, No.5
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B |
77299-0D070 |
— |
