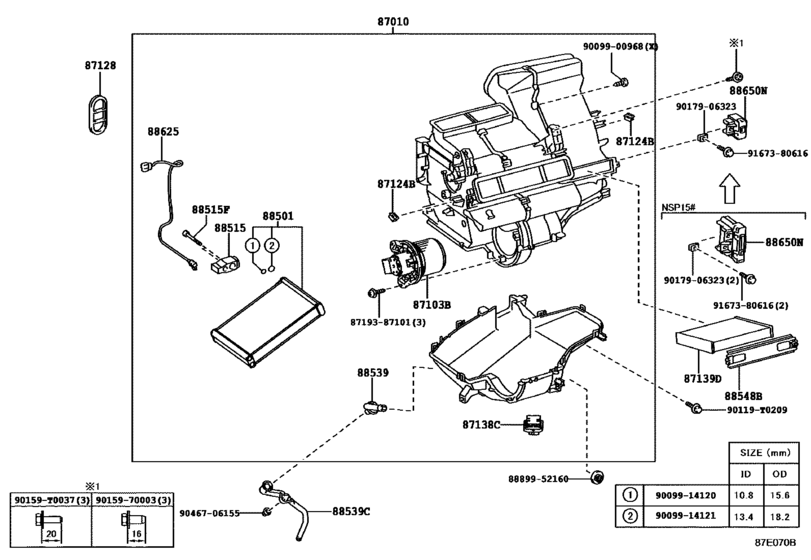

Heating & Air Conditioning - Cooler Unit ([07.2013 - ] BOOST VENTILATOR (1307- )LHD) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2014 - 2016
- Sales region
- General
- Frame
- NCP150
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- VN
- CATEGORY
- B
- From
- 03.2014
- To
- 08.2016
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87010
|
87010
87010-0D810
Unit Assy, Air Conditioner
[08.2013 - 08.2016] NCP150..VN..G;NCP151..LHD..GEN..G |
87010-0D810 |
— | ||
|
87103B
|
87103B
87103-0D290 Motor Sub-Assy, Blower W/fan[08.2013 -] NCP15#,NSP15#..LHD..(GCC,GEN,VN)..B |
87103-0D290 |
US $236.05 |
||
|
87128
|
87128
87128-0D090
Grommet, Heater
[08.2013 - 01.2017] NCP15#,NSP150,151..(GCC,GEN,VN)..B |
87128-0D090 |
— | ||
| replacement | |||||
|
87128
|
87128
87128-0D091
Grommet, Heater
[08.2013 - 01.2017] NCP15#,NSP150,151..(GCC,GEN,VN)..B |
87128-0D091 |
— | ||
|
87139D
|
87139D
87139-06080 Filter, Clean AirCLEAN AIR [04.2013 -] NCP15#,NSP15#..GCC,GEN,TH,VN DUST FILTER |
87139-06080 |
US $46.96 |
||
|
87139D
|
87139D
87139-50100 Clean Air Filter (Charcoal type)[04.2013 -] NCP15#,NSP150,151..B,C *DPF |
87139-50100 |
from US $67.20 |
||
|
88501
|
88501
88501-0D240
Evaporator Sub-Assy, Cooler, No.1
[04.2013 - 08.2016] NCP15#..(GEN,IDN,TH,VN)..B |
88501-0D240 |
— | ||
|
88515
|
88515
88515-0D240 Valve, Cooler Expansion[04.2013 - 08.2016] NCP15#..(GCC,GEN,IDN,TH,VN)..B |
88515-0D240 |
US $76.21 |
||
|
88515F
|
88515F
90099-04630
Bolt(For Cooler Expansion Valve)
[04.2013 -] NSP15#..IDN,MA,PH;NSP15#..(GCC,TH)..C;NCP15#..GCC,GEN,IDN,MA,PH,TH,VN |
90099-04630 |
— | ||
|
88539
|
88539
88539-0D300
Hose, Cooler Unit Drain, No.1
[08.2013 -] NCP15#,NSP15#..LHD..(GCC,GEN,VN)..B |
88539-0D300 |
— | ||
|
88539C
|
88539C
88539-0D350
Hose, Cooler Unit Drain, No.2
[08.2013 -] NCP15#,NSP15#..LHD..(GCC,GEN,VN)..B |
88539-0D350 |
— | ||
|
88548B
|
88548B
88548-0D160
Case, Air Filter
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B |
88548-0D160 |
— | ||
|
88625
|
88625
88620-0D050 Thermistor, Cooler, No.1[04.2013 -] NSP150..GCC..G..B;NCP151..(GCC,GEN,VN)..B;NSP151..(GCC,GEN)..G..B;NCP150..(GCC,GEN ,VN)..G..B;NSP150..LHD..(GCC,GEN,VN)..(D,R)..B;NCP150,NSP151..(GCC,GEN,IDN,TH,VN). .(D,R)..B |
88620-0D050 |
US $23.83 |
||
|
88650N
|
88650N
88650-0D480
Amplifier Assy, Air Conditioner
[08.2013 - 08.2016] NCP150..VN..G;NCP151..LHD..GEN..G |
88650-0D480 |
— | ||
|
90119T0209
|
90119T0209
90119-T0209
BOLT WWASHER
|
90119-T0209 |
— | ||
|
90159T0037
|
90159T0037
90159-T0037
New Genuine Part
|
90159-T0037 |
— | ||
|
8719387101
|
8719387101
87193-87101
SCREW TAPPING
|
87193-87101 |
— | ||
|
8889952160
|
8889952160
88899-52160
Cover, Evaporator
|
88899-52160 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.97 |
||
|
9046706155
|
9046706155
90467-06155 Clip |
90467-06155 |
from US $0.74 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
