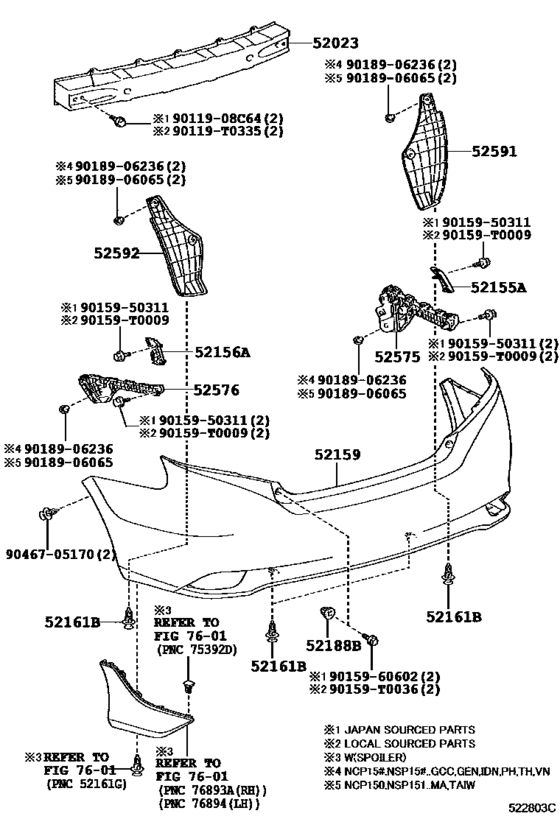

Rear Bumper & Bumper Stay ([04.2013 - ] (1304- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2014 - 2016
- Sales region
- General
- Frame
- NCP150
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- VN
- CATEGORY
- B
- From
- 03.2014
- To
- 08.2016
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023
|
52023
52023-0D090 Reinforcement Sub-Assy, Rear Bumper[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
52023-0D090 |
US $110.57 |
||
|
52155A
|
52155A
52155-0D070 Support, Rear Bumper Side, Rh[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
52155-0D070 |
US $10.06 |
||
|
52156A
|
52156A
52156-0D060 Support, Rear Bumper Side, Lh[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
52156-0D060 |
US $9.87 |
||
|
52159
|
52159
52159-0U903 Cover, Rear Bumper[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B |
52159-0U903 |
US $200.93 |
||
|
52161B
|
52161B
52161-0K040 Clip[04.2013 -] NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C) |
52161-0K040 |
from US $1.50 |
||
| replacement | |||||
|
52161B
|
52161B
52161-02020 Clip[04.2013 -] NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C) |
52161-02020 |
US $5.27 |
||
|
52188B
|
52188B
52188-33040 Grommet(For Rear Bumper)[04.2013 -] NCP15#,NSP150,151..B,C |
52188-33040 |
US $1.43 |
||
|
52575
|
52575
52575-0D170 Retainer, Rear Bumper Side, Rh[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
52575-0D170 |
US $50.10 |
||
|
52576
|
52576
52576-0D170 Retainer, Rear Bumper Side, Lh[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
52576-0D170 |
US $48.20 |
||
|
52591
|
52591
52591-0D200 Seal, Rear Bumper Side, Rh[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
52591-0D200 |
US $23.56 |
||
|
52592
|
52592
52592-0D200 Seal, Rear Bumper Side, Lh[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
52592-0D200 |
US $23.54 |
||
|
90119T0335
|
90119T0335
90119-T0335
New Genuine Part
|
90119-T0335 |
— | ||
|
90159T0009
|
90159T0009
90159-T0009 SCREWWWASHER TAP |
90159-T0009 |
US $0.20 |
||
|
90159T0036
|
90159T0036
90159-T0036 SCREW WWASHER TAPP |
90159-T0036 |
US $0.64 |
||
|
9011908C64
|
9011908C64
90119-08C64 Bolt with washer |
90119-08C64 |
US $1.61 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.76 |
||
|
9018906236
|
9018906236
90189-06236 GROMMET SCREW |
90189-06236 |
from US $0.53 |
||
|
9046705170
|
9046705170
90467-05170 Clip, Rear Bumper Side |
90467-05170 |
from US $0.80 |
||
