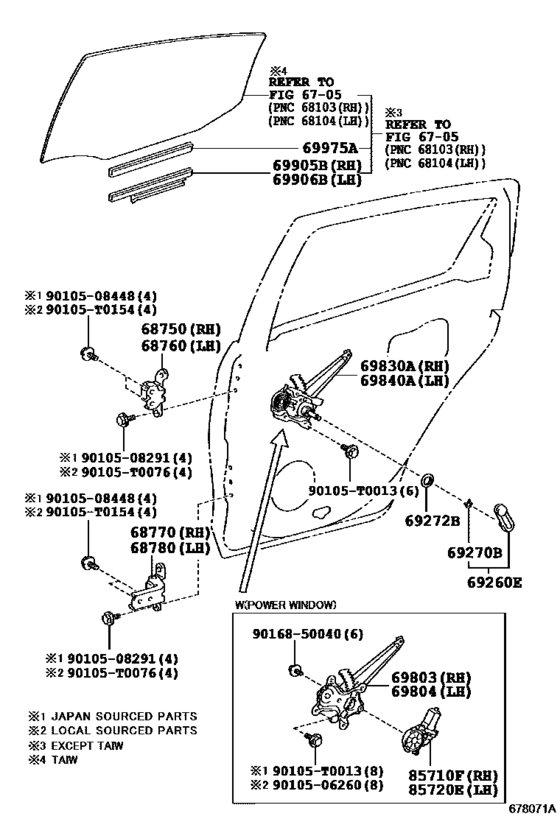

Rear Door Window Regulator & Hinge ([04.2013 - ] (1304- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2014 - 2016
- Sales region
- General
- Frame
- NCP150
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- VN
- CATEGORY
- B
- From
- 03.2014
- To
- 08.2016
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68750-0D030 Hinge Assy, Rear Door, Upper RhREAR DOOR, UPPER RH [04.2013 -] NCP15#,NSP150,151..B,C |
68750-0D030 |
US $32.74 |
||
|
68760
|
68760
68760-0D030 Hinge Assy, Rear Door, Upper LhREAR DOOR, UPPER LH [04.2013 -] NCP15#,NSP150,151..B,C |
68760-0D030 |
from US $32.21 |
||
|
68770
|
68770
68770-0D030 Hinge Assy, Rear Door, Lower RhREAR DOOR, LOWER RH [04.2013 -] NCP15#,NSP15#..B |
68770-0D030 |
from US $32.41 |
||
|
68780
|
68780
68780-0D030 Hinge Assy, Rear Door, Lower LhREAR DOOR, LOWER LH [04.2013 -] NCP15#,NSP15#..B |
68780-0D030 |
US $33.03 |
||
|
69803
|
69803
69803-0D160
Regulator Sub-Assy, Rear Door Window, Rh
[04.2013 -] NSP151..(GCC,GEN,MA,PH,TH,VN)..B;NCP15#,NSP150..(GEN,MA,PH,TH,VN)..D..B;NCP15#,NSP 150..(GCC,GEN,IDN,MA,PH,TH,VN)..(G,R,V)..B |
69803-0D160 |
— | ||
|
69804
|
69804
69804-0D160
Regulator Sub-Assy, Rear Door Window, Lh
[04.2013 -] NSP151..(GCC,GEN,MA,PH,TH,VN)..B;NCP15#,NSP150..(GEN,MA,PH,TH,VN)..D..B;NCP15#,NSP 150..(GCC,GEN,IDN,MA,PH,TH,VN)..(G,R,V)..B |
69804-0D160 |
— | ||
|
69905B
|
69905B
69905-0D130
Channel Sub-Assy, Rear Door Glass, Rh
[04.2013 -] NCP15#,NSP150,151..B,C |
69905-0D130 |
— | ||
|
69906B
|
69906B
69906-0D130
Channel Sub-Assy, Rear Door Glass, Lh
[04.2013 -] NCP15#,NSP150,151..B,C |
69906-0D130 |
— | ||
|
69975A
|
69975A
69975-0D130 Filler, Rear Door Glass Channel[04.2013 -] NCP15#,NSP150,151..B,C |
69975-0D130 |
US $5.73 |
||
|
85710F
|
85710F
85720-0D260
Motor Assy, Power Window Regulator, Rh
[04.2013 -] NSP151..IDN..(G,R);NSP151..GCC,GEN,MA,PH,TH,VN;NCP15#,NSP150..(GEN,MA,PH,TH,VN)..D ;NCP15#,NSP150..(GCC,GEN,IDN,MA,PH,TH,VN)..(G,R,V) |
85720-0D260 |
— | ||
|
85720E
|
85720E
85710-0D220 Motor Assy, Power Window Regulator, Lh[04.2013 -] NSP151..IDN..(G,R);NSP151..GCC,GEN,MA,PH,TH,VN;NCP15#,NSP150..(GEN,MA,PH,TH,VN)..D ;NCP15#,NSP150..(GCC,GEN,IDN,MA,PH,TH,VN)..(G,R,V) |
85710-0D220 |
US $234.80 |
||
|
90105T0013
|
90105T0013
90105-T0013
BOLT WASHER BASED H
|
90105-T0013 |
— | ||
|
90105T0076
|
90105T0076
90105-T0076
BOLT FLANGE
|
90105-T0076 |
— | ||
|
90105T0154
|
90105T0154
90105-T0154
New Genuine Part
|
90105-T0154 |
— | ||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.66 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.84 |
||
|
9010508448
|
9010508448
90105-08448 BOLT FLANGE |
90105-08448 |
from US $0.76 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
