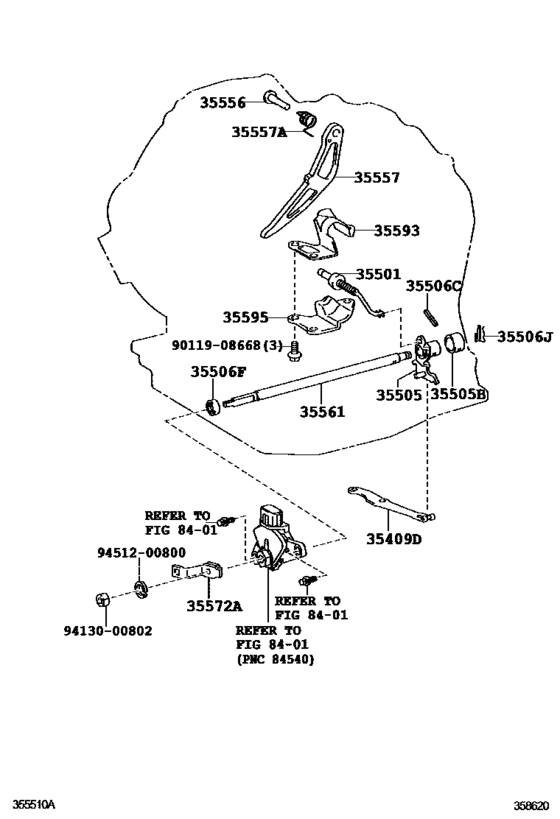

Throttle Link & Valve Lever (Atm) ([04.2013 - ] U340E (1304- )NCP150..4FC) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2014 - 2016
- Sales region
- General
- Frame
- NCP150
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- VN
- CATEGORY
- B
- From
- 03.2014
- To
- 08.2016
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35409D
|
35409D
35409-52020 Spring Sub-Assy, Manual Detent[04.2013 - 09.2016] NCP150..4FC |
35409-52020 |
US $7.57 |
||
|
35501
|
35501
35501-52021 Rod Sub-Assy, Parking Lock[04.2013 - 09.2016] NCP150..4FC |
35501-52021 |
US $21.26 |
||
|
35505
|
35505
35505-20030 Lever Sub-Assy, Manual Valve[04.2013 - 09.2016] NCP150..4FC |
35505-20030 |
US $15.43 |
||
|
35505B
|
35505B
90560-20006 Spacer (For Manual Valve Lever)[04.2013 - 09.2016] NCP150..4FC |
90560-20006 |
from US $2.77 |
||
|
35506C
|
35506C
90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)[04.2013 - 09.2016] NCP15#..4FC |
90254-04011 |
US $1.40 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[04.2013 - 09.2016] NCP15#..4FC |
90311-12002 |
from US $4.04 |
||
|
35506J
|
35506J
90524-09001 Spring, Retainer (For Manual Valve Lever Shaft)[04.2013 - 09.2016] NCP150..4FC |
90524-09001 |
US $1.89 |
||
|
35556
|
35556
35556-32020 Shaft, Parking Lock Pawl[04.2013 - 09.2016] NCP150..4FC |
35556-32020 |
US $5.82 |
||
|
35557
|
35557
35557-52021 Pawl, Parking Lock[04.2013 - 09.2016] NCP150..4FC |
35557-52021 |
US $36.25 |
||
|
35557A
|
35557A
90949-03089 Spring, Torsion (For Parking Lock Pawl)[04.2013 - 09.2016] NCP150..4FC |
90949-03089 |
US $2.48 |
||
|
35561
|
35561
35561-52020 Shaft, Manual Valve Lever[04.2013 - 09.2016] NCP150..4FC |
35561-52020 |
US $24.29 |
||
|
35572A
|
35572A
35572-52030 Lever, Transmission Control Shaft[04.2013 - 09.2016] NCP150..4FC |
35572-52030 |
US $9.32 |
||
|
35593
|
35593
35593-52010 Sleeve, Cam Guide[04.2013 - 09.2016] NCP150..4FC |
35593-52010 |
US $4.95 |
||
|
35595
|
35595
35595-52020 Bracket, Parking Lock Pawl[04.2013 - 09.2016] NCP150..4FC |
35595-52020 |
US $22.71 |
||
|
9011908668
|
9011908668
90119-08668 New Genuine Part |
90119-08668 |
US $1.79 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
