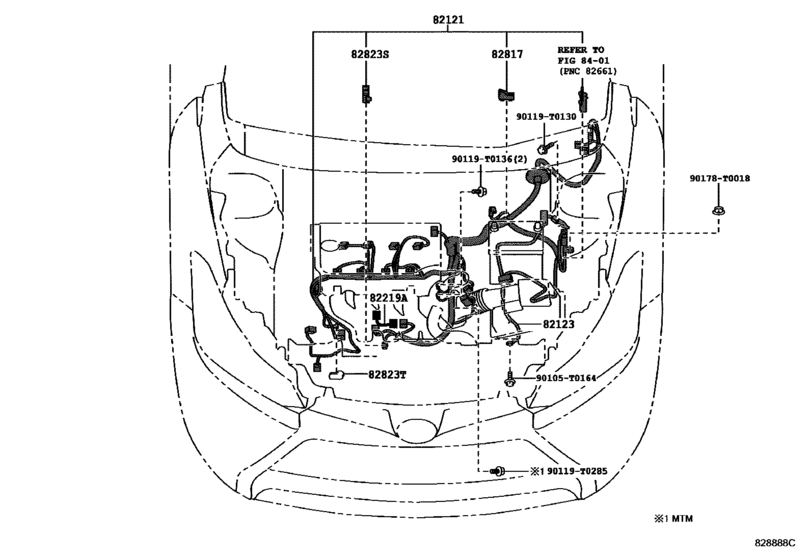

Wiring & Clamp ([04.2013 - ] ENGINE (1304- )NCP15#) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2014 - 2016
- Sales region
- General
- Frame
- NCP150
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- VN
- CATEGORY
- B
- From
- 03.2014
- To
- 08.2016
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-0DL50
Wire, Engine
[03.2014 - 08.2016] NCP150..VN..G |
82121-0DL50 |
— | ||
|
82123
|
82123
82123-0D460
Wire, Engine, No.3
[03.2014 - 08.2016] NCP150..VN..G |
82123-0D460 |
— | ||
|
82219A
|
82219A
82219-0D120
Wire, Sensor
[04.2013 - 09.2016] NCP150 |
82219-0D120 |
— | ||
|
82817
|
82817
82817-0D700
Protector, Wiring Harness, No.1
[07.2013 -] NCP15#,NSP15#..LHD |
82817-0D700 |
— | ||
|
82823S
|
82823S
82823-20080 Cap, Terminal, No.1[04.2013 -] NCP15#,NSP150,151..B,C |
82823-20080 |
US $7.88 |
||
|
82823T
|
82823T
82823-22050 Cap, Terminal, No.1[04.2013 -] NCP15#,NSP150,151..B,C |
82823-22050 |
US $6.99 |
||
|
90105T0164
|
90105T0164
90105-T0164
New Genuine Part
|
90105-T0164 |
— | ||
|
90119T0130
|
90119T0130
90119-T0130
New Genuine Part
|
90119-T0130 |
— | ||
| replacement | |||||
|
90119T0130
|
90119T0130
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
90119T0136
|
90119T0136
90119-T0136
New Genuine Part
|
90119-T0136 |
— | ||
|
90119T0285
|
90119T0285
90119-T0285
New Genuine Part
|
90119-T0285 |
— | ||
|
90178T0018
|
90178T0018
90178-T0018 NUT FLANGE |
90178-T0018 |
US $0.76 |
||
