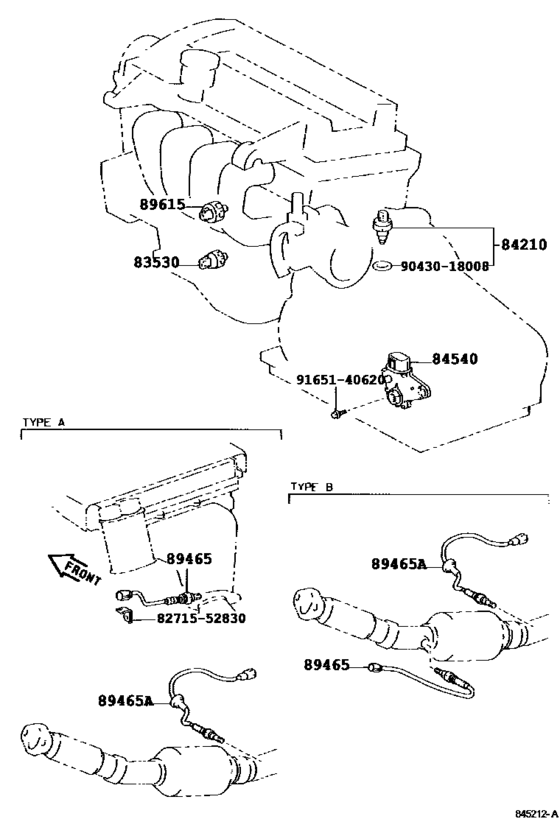

Switch & Relay & Computer ([11.2002 - 09.2005] ENGINE & TRANSMISSION (0211-0509)NCP2#) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 1999 - 2005
- Sales region
- Europe
- Frame
- NCP20
- grade
- SOL
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- From
- 08.1999
- To
- 09.2005
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[08.1999 - 11.2002] NCP2# |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.1999 - 11.2002] NCP2# |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[08.1999 - 11.2002] NCP2# |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2003 - 09.2005] NCP2# YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-52010 Switch Assy, Neutral Start[08.1999 - 11.2002] NCP20..ATM |
84540-52010 |
US $174.24 |
||
|
89465
|
89465
89465-20810 Sensor, Oxygen[11.2002 - 09.2005] NCP2# TYPE A:REFER TO ILLUSTRATION |
89465-20810 |
US $149.76 |
||
|
89465
|
89465
89465-52050 Sensor, Oxygen[08.1999 - 11.2002] NCP2# |
89465-52050 |
US $146.76 |
||
|
89465
|
89465
89465-52190
Sensor, Oxygen
[11.2002 - 09.2005] NCP2# TYPE B:REFER TO ILLUSTRATION |
89465-52190 |
— | ||
|
89465A
|
89465A
89465-52060 Sensor, Oxygen No.2[08.1999 - 11.2002] NCP2#..4FC,5F |
89465-52060 |
US $146.76 |
||
|
89465A
|
89465A
89465-52200
Sensor, Oxygen No.2
[11.2002 - 09.2005] NCP2# TYPE B:REFER TO ILLUSTRATION |
89465-52200 |
— | ||
|
89465A
|
89465A
89465-52220 Sensor, Oxygen No.2[11.2002 - 09.2005] NCP2# TYPE A:REFER TO ILLUSTRATION |
89465-52220 |
US $138.32 |
||
|
89615
|
89615
89615-22050 Sensor, Knock Control[08.1999 - 08.2000] NCP20,22 DENSO |
89615-22050 |
US $208.21 |
||
| replacement | |||||
|
89615
|
89615
89615-52010 Sensor, Knock Control[08.1999 - 08.2000] NCP20,22 DENSO |
89615-52010 |
from US $134.67 |
||
|
89615
|
89615
89615-52010 Sensor, Knock Control[08.1999 - 08.2000] NCP20,22 MATSUSHITA |
89615-52010 |
from US $134.67 |
||
|
89615
|
89615
89615-52030 Sensor, Knock Control[08.2000 - 11.2002] NCP2# DENSO |
89615-52030 |
from US $159.71 |
||
|
89615
|
89615
89615-52040 Sensor, Knock Control[08.2000 - 11.2002] NCP2# TOYOTA |
89615-52040 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-52030 Sensor, Knock Control[08.2000 - 11.2002] NCP2# TOYOTA |
89615-52030 |
from US $159.71 |
||
|
8271552830
|
8271552830
82715-52830 Bracket,wiring Harness Clamp |
82715-52830 |
US $4.37 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
