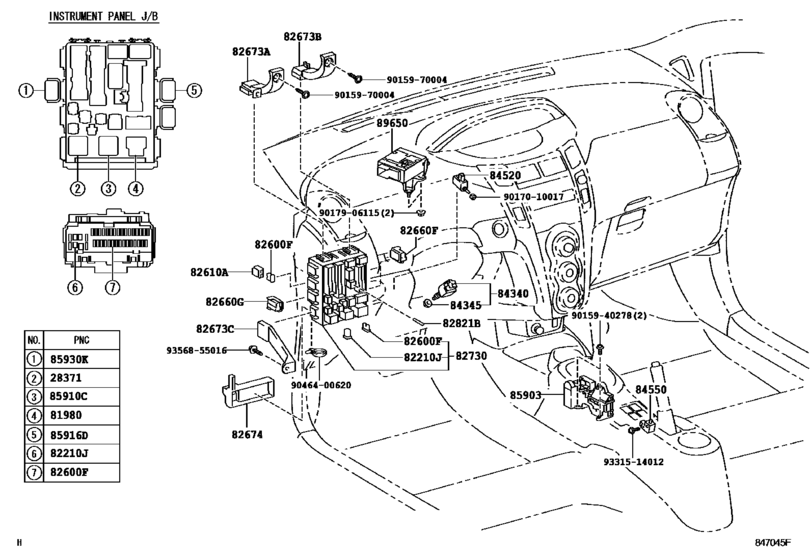

Switch & Relay & Computer ([08.2005 - ] COWL (0508- )LHD) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2005 - 2011
- Sales region
- General
- Frame
- NCP90
- ENGINE
- 2NZFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 08.2005
- To
- 08.2011
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02025 Relay[08.2005 - 09.2006] 1NZFE,2NZFE..NCP9# |
90987-02025 |
from US $44.54 |
||
|
28371
|
28371
90987-02030 Relay, Ignition, No.1[09.2006 - 08.2008] 1NZFE,2NZFE..NCP9# |
90987-02030 |
US $44.54 |
||
|
81980
|
81980
81980-46010 Flasher Assy, Turn Signal[08.2005 - 08.2008] NCP9# |
81980-46010 |
from US $56.34 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[08.2005 - 08.2008] NCP9# 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[08.2005 - 08.2008] NCP9# 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[08.2005 - 08.2008] NCP9# 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2005 - 08.2008] NCP9# 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2005 - 08.2008] NCP9# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2005 - 08.2008] NCP9# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2005 - 08.2008] NCP9# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2005 - 08.2008] NCP9# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2005 - 08.2008] NCP9# 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82610A
|
82610A
82610-52010 Block Assy, Fuse[08.2005 - 08.2008] NCP9# |
82610-52010 |
US $3.06 |
||
|
82660F
|
82660F
82660-52030 Block Assy, Relay[08.2005 - 08.2008] NCP90..GCC,GEN |
82660-52030 |
US $5.82 |
||
|
82660G
|
82660G
82660-52040 Block Assy, Relay[08.2005 - 08.2008] NCP9# |
82660-52040 |
from US $6.41 |
||
|
82673A
|
82673A
82673-52050 Bracket, Junction BlockJUNCTION BLOCK [08.2005 - 08.2008] NCP90..LHD |
82673-52050 |
US $13.69 |
||
|
82673B
|
82673B
82673-52060 Bracket, Junction BlockJUNCTION BLOCK [08.2005 - 08.2008] NCP90..LHD |
82673-52060 |
US $12.81 |
||
|
82673C
|
82673C
82673-52070 Bracket, Junction BlockJUNCTION BLOCK [08.2005 - 08.2008] NCP90..LHD |
82673-52070 |
US $9.61 |
||
|
82674
|
82674
82674-46010 Cover, Junction Block Lower[08.2005 - 08.2008] NCP90..LHD |
82674-46010 |
US $6.41 |
||
|
82730
|
82730
82730-52341
Block Assy, Instrument Panel Junction
[08.2005 - 08.2008] NCP9# |
82730-52341 |
— | ||
|
82730
|
82730
82730-52541
Block Assy, Instrument Panel Junction
[08.2005 - 08.2008] NCP9# POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH |
82730-52541 |
— | ||
|
82730
|
82730
82730-52770
Block Assy, Instrument Panel Junction
[08.2005 - 08.2008] NCP9# POWER DOOR LOCK-WITH |
82730-52770 |
— | ||
|
82730
|
82730
82730-52F10
Block Assy, Instrument Panel Junction
[08.2008 - 08.2011] NCP9#..LHD |
82730-52F10 |
— | ||
|
82730
|
82730
82730-52J50
Block Assy, Instrument Panel Junction
[08.2008 - 08.2011] NCP9#..LHD POWER DOOR LOCK-W(DRIVER+PASSENGER) |
82730-52J50 |
— | ||
|
82730
|
82730
82730-52J60
Block Assy, Instrument Panel Junction
[08.2008 - 08.2011] NCP90..LHD..5F..GEN ALGERIA SPEC&POWER DOOR LOCK-W(DRIVER+PASSENGER)&WIRELESS DOOR LOCK-WITH(2 WIRELES S KEY); NCP9#..LHD POWER DOOR LOCK-W(DRIVER+PASSENGER)&WIRELESS DOOR LOCK-WITH |
82730-52J60 |
— | ||
|
82821B
|
82821B
82821-52020 Cover, Connector[08.2005 - 08.2008] NCP9# |
82821-52020 |
from US $0.44 |
||
|
84340
|
84340
84340-69025 Switch Assy, Stop Lamp[08.2005 - 08.2008] NCP9# |
84340-69025 |
from US $26.56 |
||
|
84340
|
84340
84340-69075 Switch Assy, Stop Lamp[08.2008 - 07.2011] NCP9# |
84340-69075 |
from US $27.01 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[08.2005 - 08.2008] NCP9# |
84345-51010 |
from US $3.52 |
||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[08.2005 - 08.2008] NCP9#..5F |
84520-42010 |
from US $34.35 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[08.2005 - 08.2008] NCP9# |
84550-33010 |
from US $18.39 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[08.2005 - 08.2008] NCP9# |
90987-04010 |
from US $42.71 |
||
|
85916D
|
85916D
90987-02027 Relay[08.2005 - 08.2008] NCP9#..ARL,GCC;NCP90..LHD..GEN FRONT FOG LAMP-WITH |
90987-02027 |
from US $33.62 |
||
|
85930K
|
85930K
90987-04004 Relay, Starter Cut[08.2005 - 08.2008] NCP9# |
90987-04004 |
US $42.71 |
||
|
89650
|
89650
89650-52050
Computer Assy, Power Steering
[08.2005 - 06.2007] NCP90..LHD |
89650-52050 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-52370 Computer Assy, Power SteeringPOWER STEERING [08.2005 - 06.2007] NCP90..LHD |
89650-52370 |
US $553.28 |
||
|
89650
|
89650
89650-52320
Computer Assy, Power Steering
[04.2007 - 09.2007] NCP90..LHD..5F..GEN ABS-WITHOUT |
89650-52320 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-52360
Computer Assy, Power Steering
[04.2007 - 09.2007] NCP90..LHD..5F..GEN ABS-WITHOUT |
89650-52360 |
— | ||
|
89650
|
89650
89650-52330
Computer Assy, Power Steering
[07.2007 - 08.2008] NCP90..LHD |
89650-52330 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-52370 Computer Assy, Power SteeringPOWER STEERING [07.2007 - 08.2008] NCP90..LHD |
89650-52370 |
US $553.28 |
||
|
89650
|
89650
89650-52350
Computer Assy, Power Steering
[10.2007 - 08.2008] NCP90..LHD..5F..GEN ABS-WITHOUT |
89650-52350 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-52360
Computer Assy, Power Steering
[10.2007 - 08.2008] NCP90..LHD..5F..GEN ABS-WITHOUT |
89650-52360 |
— | ||
|
89650
|
89650
89650-52360
Computer Assy, Power Steering
[08.2008 - 07.2011] NCP90..LHD..5F;NCP90..4FC..GCC ABS(ANTI-LOCK BRK SYSTM)-WITHOUT |
89650-52360 |
— | ||
|
89650
|
89650
89650-52370 Computer Assy, Power SteeringPOWER STEERING [08.2008 - 07.2011] NCP9#..LHD |
89650-52370 |
US $553.28 |
||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9046400620
|
9046400620
90464-00620 New Genuine Part |
90464-00620 |
US $1.92 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
