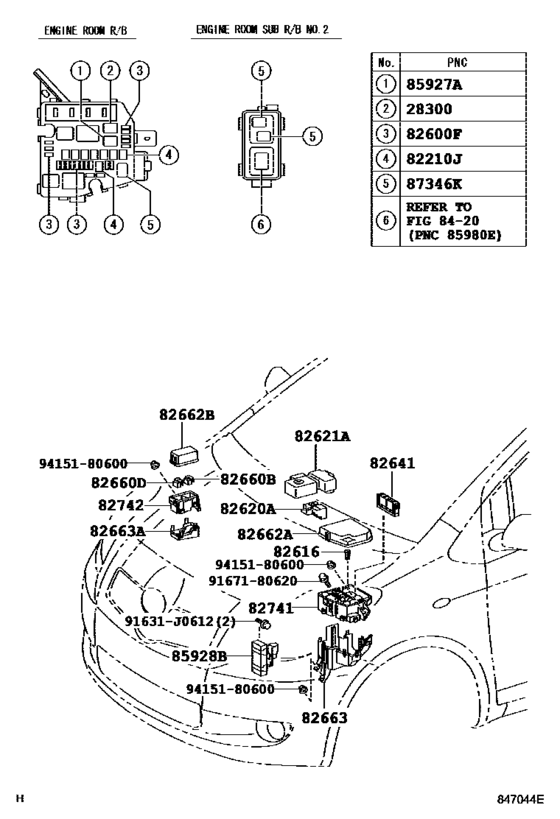

Switch & Relay & Computer ([08.2005 - ] ENGINE ROOM (0508- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2008 - 2011
- Sales region
- U.S.A.
- Frame
- NCP91
- grade
- STD
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.2008
- To
- 08.2011
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[08.2008 - 07.2011] 1NZFE..NCP91 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[08.2008 - 07.2011] 1NZFE..NCP91 |
28300-21020 |
from US $40.58 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[08.2008 - 08.2011] NCP91 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[08.2008 - 08.2011] NCP91 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[08.2008 - 08.2011] NCP91 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2008 - 08.2011] NCP91 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2008 - 08.2011] NCP91 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2008 - 08.2011] NCP91 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2008 - 08.2011] NCP91 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2008 - 08.2011] NCP91 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2008 - 08.2011] NCP91 30A,MINI FUSE |
90982-09025 |
from US $0.88 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[08.2008 - 08.2011] NCP91 |
82616-58010 |
from US $2.40 |
||
|
82620A
|
82620A
82620-52050 Block Assy, Fusible Link[08.2008 - 08.2011] NCP91 |
82620-52050 |
from US $9.77 |
||
|
82621A
|
82621A
82621-52120 Cover, Fusible Link[08.2008 - 10.2010] NCP91 |
82621-52120 |
from US $25.56 |
||
|
82621A
|
82621A
82621-52140 Cover, Fusible Link[11.2010 - 08.2011] NCP91 |
82621-52140 |
US $8.74 |
||
|
82641
|
82641
82641-47020 Relay, Integration No.1[08.2008 - 08.2011] NCP91 |
82641-47020 |
from US $79.92 |
||
|
82660B
|
82660B
82660-0H070 Block Assy, Relay[08.2008 - 08.2011] NCP91 |
82660-0H070 |
US $6.99 |
||
|
82660D
|
82660D
82660-52010 Block Assy, Relay[08.2008 - 08.2011] NCP91..CND; NCP91..USA COLD SPEC |
82660-52010 |
US $7.13 |
||
|
82662A
|
82662A
82662-52301 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [08.2008 - 08.2011] NCP91 |
82662-52301 |
US $21.82 |
||
|
82662B
|
82662B
82662-52620
Cover, Relay Block, Upper, No.2
[08.2008 - 08.2011] NCP91 |
82662-52620 |
— | ||
|
82663
|
82663
82663-52031 Cover, Relay Block, Lower[08.2008 - 08.2011] NCP91 |
82663-52031 |
US $45.25 |
||
|
82663A
|
82663A
82663-52060 Cover, Relay Block, Lower, No.2[08.2008 - 08.2011] NCP91 |
82663-52060 |
US $6.41 |
||
|
82741
|
82741
82741-52031 Block, Engine Room Relay[08.2008 - 08.2011] NCP91 |
82741-52031 |
US $57.22 |
||
|
82742
|
82742
82741-52050 Block, Engine Room Relay, No.2[08.2008 - 08.2011] NCP91 |
82741-52050 |
US $13.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[08.2008 - 07.2011] NCP91 |
90987-04004 |
US $42.71 |
||
|
85928B
|
85928B
85928-52030
Resistor, Cooling Fan
[08.2008 - 02.2010] NCP91..CND AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); NCP91..CND AIR CONDITIONER-DEALER KIT; NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
85928-52030 |
— | ||
| replacement | |||||
|
85928B
|
85928B
85928-52032 Resistor, Cooling Fan[08.2008 - 02.2010] NCP91..CND AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); NCP91..CND AIR CONDITIONER-DEALER KIT; NCP91 AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
85928-52032 |
from US $71.90 |
||
|
87346K
|
87346K
90987-02027 Relay[08.2008 - 07.2011] NCP91..CND; NCP91..USA COLD SPEC |
90987-02027 |
from US $33.62 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $0.96 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
