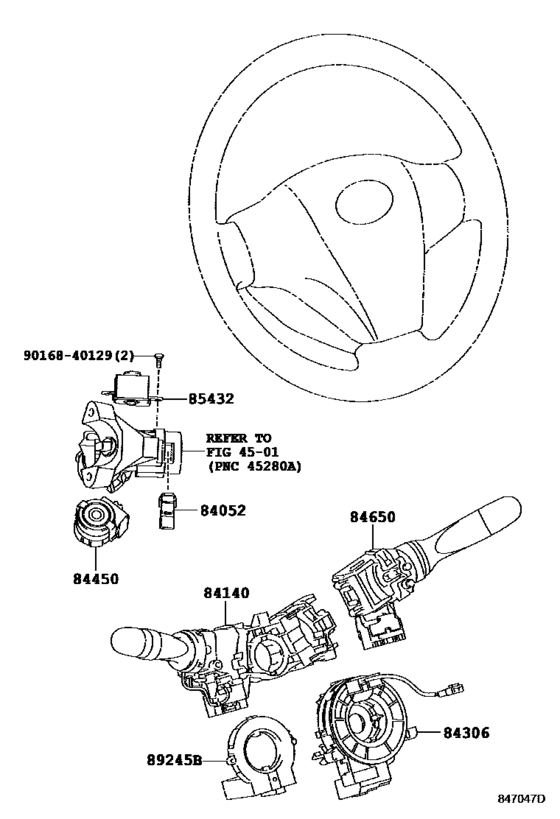

Switch & Relay & Computer ([08.2005 - ] STEERING (0508- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2008 - 2011
- Sales region
- U.S.A.
- Frame
- NCP91
- grade
- STD
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.2008
- To
- 08.2011
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-71010 Switch Assy, Un-Lock Warning[08.2008 - 08.2011] NCP91 |
84052-71010 |
US $25.68 |
||
|
84140
|
84140
84140-52141 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2008 - 07.2011] NCP91 |
84140-52141 |
US $92.10 |
||
|
84140
|
84140
84140-52151 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2008 - 07.2011] NCP91 FRONT FOG & DRIVING LAMP-WITH |
84140-52151 |
US $103.58 |
||
|
84306
|
84306
84306-22010 Cable Sub-Assy, Spiral[08.2008 - 07.2011] NCP91 |
84306-22010 |
from US $169.55 |
||
|
84450
|
84450
84450-71010 Switch Assy, Ignition Or Starter[08.2008 - 08.2011] NCP91 |
84450-71010 |
from US $49.25 |
||
|
84650
|
84650
84652-12A20
Switch Assy, Windshield Wiper
[08.2008 - 02.2010] NCP91..USA REAR WINDOW WIPER-WITHOUT&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT) |
84652-12A20 |
— | ||
|
84650
|
84650
84652-12A30 Switch Assy, Windshield Wiper[08.2008 - 07.2011] NCP91..STD REAR WINDOW WIPER-WITHOUT |
84652-12A30 |
from US $75.24 |
||
|
84650
|
84650
84652-52110
Switch Assy, Windshield Wiper
[08.2008 - 02.2010] NCP91..USA INTERMITTENT WIPER-WITH(TIME ADJUSTMENT) |
84652-52110 |
— | ||
|
84650
|
84650
84652-52201
Switch Assy, Windshield Wiper
[08.2008 - 07.2011] NCP91 |
84652-52201 |
— | ||
|
85432
|
85432
85432-71010 Solenoid, Key Inter Lock[08.2008 - 08.2011] NCP91..4FC |
85432-71010 |
US $40.33 |
||
|
89245B
|
89245B
89245-52030 Sensor, Steering[08.2009 - 08.2011] NCP91..USA; NCP91..CND ABS(ANTI-LOCK BRK SYSTM)-WITH(PUMP UP BRAKE ASSIST)&VSC-WITH |
89245-52030 |
from US $211.41 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
