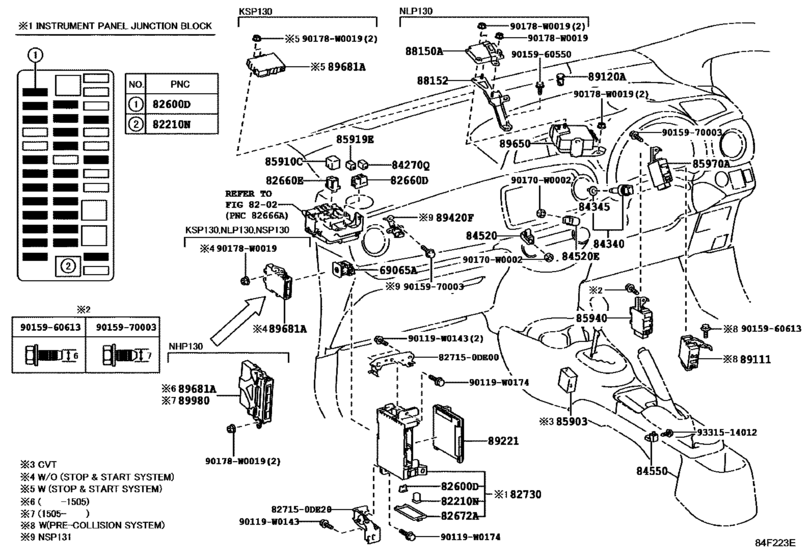

Switch & Relay & Computer ([07.2014 - ] COWL (1407- )RHD) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2017 - 2018
- Sales region
- Europe
- Frame
- NSP131
- ENGINE
- 2NRFKE
- TRANSMISSION
- MTM
- PRODUCT
- FRP
- From
- 03.2017
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Model Mark
- S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69065A
|
69065A
69065-02010
Cylinder Sub-Assy, Air Bag Cut Off Switch
[03.2017 -] KSP130,NHP130,NLP130,NSP131 |
69065-02010 |
— | ||
|
82210N
|
82210N
90982-08306 Fusible Link[03.2017 -] KSP130,NHP130,NLP130,NSP131 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[03.2017 -] KSP130,NHP130,NLP130,NSP131 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[03.2017 -] KSP130,NHP130,NLP130,NSP131 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[03.2017 -] KSP130,NHP130,NLP130,NSP131 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[03.2017 -] KSP130,NHP130,NLP130,NSP131 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[03.2017 -] KSP130,NHP130,NLP130,NSP131 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[03.2017 -] KSP130,NHP130,NLP130,NSP131 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82672A
|
82672A
82672-52090
Cover, Junction Block
[03.2017 -] KSP130,NHP130,NLP130,NSP131 |
82672-52090 |
— | ||
|
82730
|
82730
82730-52K40
Block Assy, Instrument Panel Junction
[03.2017 -] KSP130,NHP130,NLP130,NSP131 |
82730-52K40 |
— | ||
|
84270Q
|
84270Q
90987-02027 Relay[03.2017 -] NLP130..LHD;KSP130,NHP130,NSP131 |
90987-02027 |
from US $44.54 |
||
|
84340
|
84340
84340-09020 Switch Assy, Stop Lamp[03.2017 -] NHP130..N,S;KSP130,NLP130,NSP131; NHP130..G REAR COMBINATION LAMP-BULB |
84340-09020 |
US $21.11 |
||
|
84340
|
84340
84340-09100
Switch Assy, Stop Lamp
[03.2017 -] NHP130..G; NHP130..N,S;KSP130,NLP130,NSP131 REAR COMBINATION LAMP-LED |
84340-09100 |
— | ||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[03.2017 -] KSP130,NHP130,NLP130,NSP131 |
84345-51010 |
from US $3.52 |
||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[03.2017 -] KSP130,NLP130,NSP131..MTM |
84520-42010 |
from US $34.35 |
||
|
84520E
|
84520E
84520-42010 Switch Assy, Clutch Start[03.2017 -] KSP130,NLP130,NSP131..RHD..MTM |
84520-42010 |
from US $34.35 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[03.2017 -] KSP130,NHP130,NLP130,NSP131 |
84550-33010 |
from US $18.39 |
||
|
85910C
|
85910C
90080-87031
Relay Assy (For Heater Blower Motor)
[03.2017 -] KSP130,NLP130,NSP131..N,R,S (L); NLP130..LHD..G COLD AREA SPEC & W/O(REAR HEATER DUCT)&FRONT AIR CONDITIONER-HEATER ONLY,(L); NLP130..LHD..G COLD AREA SPEC & W/O(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION,(L); KSP130,NSP131..LHD..G |
90080-87031 |
— | ||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[03.2017 -] KSP130,NLP130,NSP131..N,R,S (J); NLP130..LHD..G COLD AREA SPEC & W/O(REAR HEATER DUCT)&FRONT AIR CONDITIONER-HEATER ONLY,(J); NLP130..LHD..G COLD AREA SPEC & W/O(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION,(J); KSP130,NSP131..LHD..G |
90987-04010 |
from US $42.71 |
||
|
85919E
|
85919E
90080-87020
Relay, Cooling Fan
[03.2017 -] NHP130..N,S;KSP130,NLP130,NSP131; NHP130..N,S;KSP130,NLP130,NSP131 PRE-COLLISION SYSTEM-WITH&REAR COMBINATION LAMP-LED; NHP130..N,S;KSP130,NLP130,NSP131 PRE-COLLISION SYSTEM-WITHOUT; NHP130..N,S;KSP130,NLP130,NSP131 PRE-COLLISION SYSTEM-WITHOU |
90080-87020 |
— | ||
|
85940
|
85940
85940-0D030
Relay Assy, Windshield Wiper
[03.2017 -] KSP130,NHP130,NLP130,NSP131; KSP130,NHP130,NLP130,NSP131 PRE-COLLISION SYSTEM-WITHOUT |
85940-0D030 |
— | ||
|
85970A
|
85970A
85970-52050
Relay Assy, Double Lock Door Control
[03.2017 -] KSP130,NLP130,NSP131..RHD..(G,N,S); NHP130..RHD..(G,S) U.K. SPEC; NHP130..RHD..(G,S) U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY); NHP130..RHD..N U.K. SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER); NHP130..RHD..N U.K. SPEC&WIRELESS DOOR LOCK-WIT |
85970-52050 |
— | ||
|
89111
|
89111
89100-52030 Computer, Network Gateway[03.2017 -] KSP130,NHP130,NLP130,NSP131; KSP130,NHP130,NLP130,NSP131 PRE-COLLISION SYSTEM-WITHOUT |
89100-52030 |
US $242.86 |
||
|
89120A
|
89120A
89121-52010 Sensor, Automatic Light Control[03.2017 -] NHP130;KSP130,NLP130,NSP131..G; KSP130,NLP130,NSP131..N,S FRONT AIR CONDITIONER-AUTO; KSP130,NLP130,NSP131..G FRONT AIR CONDITIONER-HEATER ONLY; KSP130,NLP130,NSP131..G FRONT AIR CONDITIONER-DEALER OPTION |
89121-52010 |
US $119.88 |
||
|
89221
|
89221
89220-0D370
Computer, Multiplex Network Body
[03.2017 -] KSP130,NHP130,NLP130,NSP131..RHD |
89220-0D370 |
— | ||
|
89221
|
89221
89220-0D390
Computer, Multiplex Network Body
[03.2017 -] KSP130,NHP130,NLP130,NSP131..RHD U.K. SPEC |
89220-0D390 |
— | ||
|
89420F
|
89420F
89420-52110
Sensor Assy, Vacuum
[03.2017 -] NSP131 |
89420-52110 |
— | ||
|
89650
|
89650
89650-0D276
Computer Assy, Power Steering
[03.2017 -] KSP130,NLP130..RHD;NSP131..RHD..(G,N,R); NSP131..RHD..S TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM |
89650-0D276 |
— | ||
|
89650
|
89650
89650-0D305
Computer Assy, Power Steering
[03.2017 -] KSP130..RHD..R TIRE & DISC WHEEL-175/65R14, 5J STEEL BLACK; KSP130,NLP130,NSP131..RHD TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK; KSP130,NLP130,NSP131..RHD TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI |
89650-0D305 |
— | ||
|
89650
|
89650
89650-0D326
Computer Assy, Power Steering
[03.2017 -] NSP131..RHD..S; NSP131..RHD..(G,N) TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK; NSP131..RHD..(G,N) TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM |
89650-0D326 |
— | ||
|
90119W0143
|
90119W0143
90119-W0143
New Genuine Part
|
90119-W0143 |
— | ||
|
90119W0174
|
90119W0174
90119-W0174
New Genuine Part
|
90119-W0174 |
— | ||
|
90170W0002
|
90170W0002
90170-W0002
Nut(For Clutch Pedal Stopper)
|
90170-W0002 |
— | ||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
827150DE00
|
827150DE00
82715-0DE00
Bracket,wiring Harness Clamp
|
82715-0DE00 |
— | ||
|
827150DE20
|
827150DE20
82715-0DE20
Bracket,wiring Harness Clamp
|
82715-0DE20 |
— | ||
|
9015960550
|
9015960550
90159-60550 New Genuine Part |
90159-60550 |
US $1.44 |
||
|
9015960613
|
9015960613
90159-60613 New Genuine Part |
90159-60613 |
US $0.96 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
