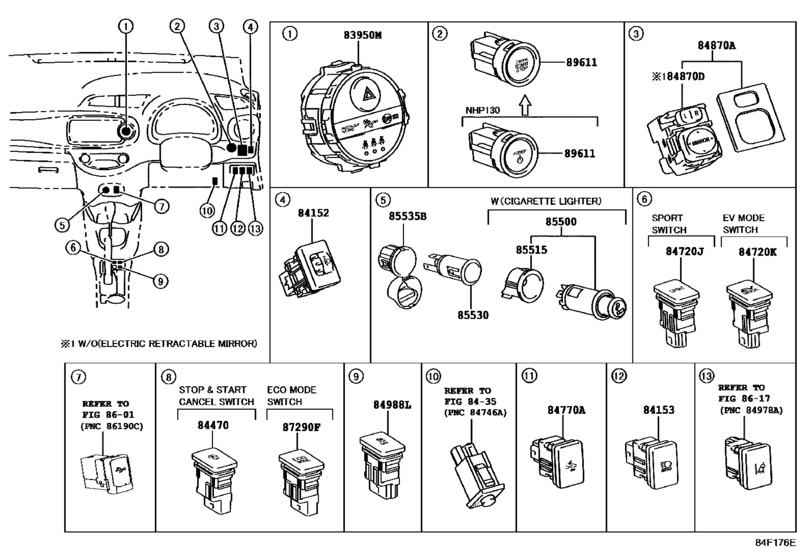

Switch & Relay & Computer ([07.2014 - ] INSTRUMENT PANEL (1407- )RHD) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2017 - 2018
- Sales region
- Europe
- Frame
- NSP131
- ENGINE
- 2NRFKE
- TRANSMISSION
- MTM
- PRODUCT
- FRP
- From
- 03.2017
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Model Mark
- S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83950M
|
83950M
83950-0D100
Lamp Assy, Telltale
[03.2017 -] KSP130,NHP130,NLP130,NSP131 |
83950-0D100 |
— | ||
|
84152
|
84152
84152-02080
Switch, Headlamp Leveling
[03.2017 -] KSP130,NHP130,NLP130,NSP131 |
84152-02080 |
— | ||
|
84153
|
84153
84153-0D030
Switch, Auto High Beam
[03.2017 -] KSP130,NHP130,NLP130,NSP131; KSP130,NHP130,NLP130,NSP131 PRE-COLLISION SYSTEM-WITHOUT |
84153-0D030 |
— | ||
|
84770A
|
84770A
84770-0D020
Switch Assy, Pre-Collision System Cancel
[03.2017 -] KSP130,NHP130,NLP130,NSP131; KSP130,NHP130,NLP130,NSP131 PRE-COLLISION SYSTEM-WITHOUT |
84770-0D020 |
— | ||
|
84870A
|
84870A
84870-0D151
Switch Assy, Outer Mirror
[03.2017 -] KSP130,NLP130,NSP131..LHD..3D;KSP130,NLP130,NSP131..LHD..5D..R;KSP130,NHP130,NLP13 0,NSP131..5D..(G,N,S) OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE |
84870-0D151 |
— | ||
|
84870A
|
84870A
84870-0F010
Switch Assy, Outer Mirror
[03.2017 -] KSP130,NHP130,NLP130,NSP131 |
84870-0F010 |
— | ||
|
84870D
|
84870D
84872-02050
Switch Assy, Outer Mirror, No.2
[03.2017 -] KSP130,NHP130,NLP130,NSP131 |
84872-02050 |
— | ||
|
84988L
|
84988L
84988-02041
Switch, Vsc Off
[03.2017 -] KSP130,NHP130,NLP130,NSP131; NLP130..LHD..5D;KSP130,NSP131..5D..MTM VSC-WITHOUT |
84988-02041 |
— | ||
|
85500
|
85500
85500-09080
Lighter Assy, Cigarette
[03.2017 -] KSP130,NHP130,NLP130,NSP131 CIGARETTE LIGHTER-WITH |
85500-09080 |
— | ||
|
85515
|
85515
85515-0D010
Stay, Cigarette Lighter Bezel
[03.2017 -] KSP130,NHP130,NLP130,NSP131 CIGARETTE LIGHTER-WITH |
85515-0D010 |
— | ||
|
85530
|
85530
85530-0D021 Socket Assy, Power Outlet, No.1[03.2017 -] KSP130,NHP130,NLP130,NSP131; KSP130,NHP130,NLP130,NSP131 CIGARETTE LIGHTER-WITH |
85530-0D021 |
US $26.60 |
||
|
85535B
|
85535B
85535-52040 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [03.2017 -] KSP130,NHP130,NLP130,NSP131; KSP130,NHP130,NLP130,NSP131 CIGARETTE LIGHTER-WITH |
85535-52040 |
from US $4.02 |
||
|
89611
|
89611
89611-02102
Switch, Push Start
[03.2017 -] KSP130,NLP130,NSP131..G WIRELESS DOOR LOCK-WITH(SMART KEY); KSP130,NLP130,NSP131..5D..(N,S) WIRELESS DOOR LOCK-WITH(SMART KEY)&FRONT AIR CONDITIONER-AUTO |
89611-02102 |
— |
