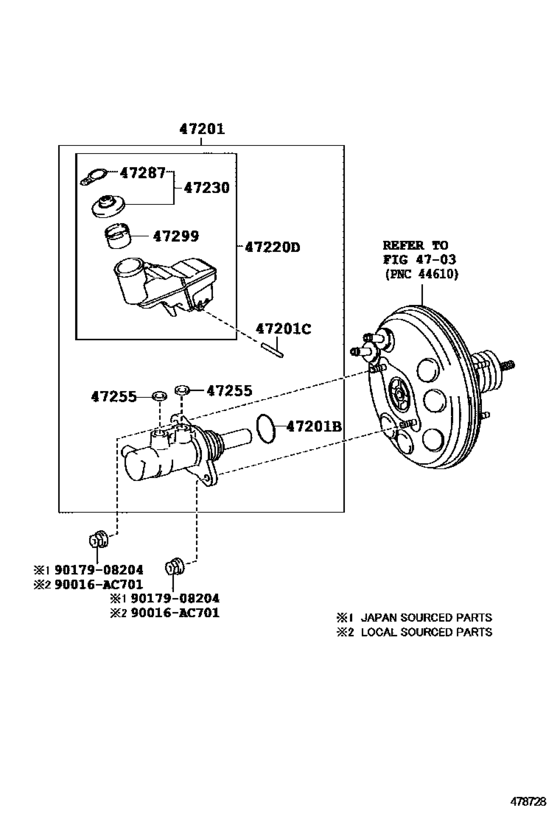

Brake Master Cylinder ([07.2013 - ] (1307- )LHD) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP150
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- CATEGORY
- B
- From
- 04.2016
- No.of Doors
- 4D
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
47201-0D740
Cylinder Sub-Assy, Brake Master
[04.2016 -] NSP151..CVT..GEN;NSP150..LHD..CVT..(GEN,PH)..(D,R) |
47201-0D740 |
— | ||
|
47201B
|
47201B
90016-AH903 Ring, O(For Brake Master Cylinder)[04.2013 -] NCP151..LHD;NCP151..5F..G;NCP150..GCC,GEN,IDN,MA,PH,TH,VN;NSP15#..(GCC,GEN,MA,PH,T H,VN)..B |
90016-AH903 |
US $2.20 |
||
|
47201C
|
47201C
90029-15803 Ring Pin, Brake Master Cylinder[04.2013 -] NCP150;NSP15#..B;NCP151..LHD;NCP151..5F..G |
90029-15803 |
US $1.05 |
||
|
47220D
|
47220D
47220-0D370
Reservoir Assy, Brake Master Cylinder
[04.2016 -] NSP15#..LHD..CVT..(GCC,GEN,PH,VN)..B |
47220-0D370 |
— | ||
|
47230
|
47230
47230-0D221 Cap Assy, Brake Master Cylinder Reservoir Filler[05.2015 -] NCP151..LHD;NCP151..5F..G;NCP150..GCC,GEN,IDN,MA,PH,TH,VN;NSP15#..(GCC,GEN,MA,PH,T H,VN)..B |
47230-0D221 |
from US $9.40 |
||
|
47255
|
47255
90016-AT001 Grommet, Master Cylinder ReservoirMASTER CYLINDER RESERVOIR [04.2013 -] NCP151..LHD;NCP151..5F..G;NCP150..GCC,GEN,IDN,MA,PH,TH,VN;NSP15#..(GCC,GEN,MA,PH,T H,VN)..B |
90016-AT001 |
US $4.80 |
||
|
47287
|
47287
47287-02360
Label, Brake Fluid Information
[05.2015 -] NCP151..LHD;NCP151..5F..G;NCP150..GCC,GEN,IDN,MA,PH,TH,VN;NSP15#..(GCC,GEN,MA,PH,T H,VN)..B |
47287-02360 |
— | ||
|
47299
|
47299
47299-0K010
Strainer, Brake Master Cylinder Reservoir
[04.2013 -] NCP15#..GCC,GEN,IDN,MA,PH,TH,VN;NSP15#..(GCC,GEN,MA,PH,TH,VN)..B |
47299-0K010 |
— | ||
|
90016AC701
|
90016AC701
90016-AC701
New Genuine Part
|
90016-AC701 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
