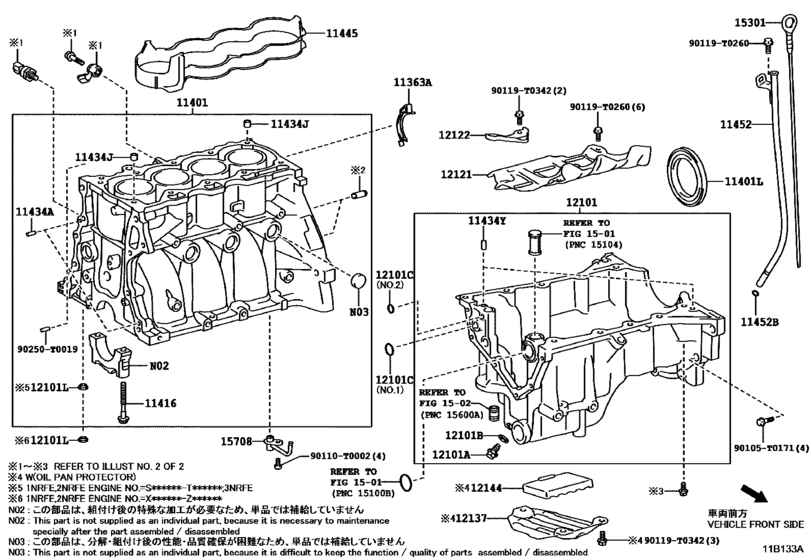

Cylinder Block ([04.2016 - ] (1604- )1NRFE,2NRFE) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP150
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- CATEGORY
- B
- From
- 04.2016
- No.of Doors
- 4D
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11363A
|
11363A
11363-0Y020
Cover, Flywheel Housing Side
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C |
11363-0Y020 |
— | ||
|
11401
|
11401
11410-09710
Block Sub-Assy, Cylinder
[04.2016 -] 1NRFE..NSP150 *264 |
11410-09710 |
— | ||
|
11401
|
11401
11410-09750
Block Sub-Assy, Cylinder
[07.2016 -] 1NRFE..NSP150 *230 OR *432 |
11410-09750 |
— | ||
|
11401L
|
11401L
90311-T0073
Seal, Engine Rear Oil
[07.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *230 OR *432 |
90311-T0073 |
— | ||
|
11401L
|
11401L
90311-T0074 Seal, Engine Rear Oil[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
90311-T0074 |
from US $21.13 |
||
|
11416
|
11416
90910-T2013
Bolt(For Crankshaft Bearing Cap Set)
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
90910-T2013 |
— | ||
|
11434A
|
11434A
90250-04097 Pin, Straight(For Camshaft Housing Rh)[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C L=12,OD=4.0,*264 |
90250-04097 |
US $0.80 |
||
|
11434J
|
11434J
90253-13017 Pin, Ring W/head[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
90253-13017 |
US $2.24 |
||
|
11434Y
|
11434Y
90250-08120 Pin, Straight, No.1[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
90250-08120 |
from US $1.07 |
||
|
11445
|
11445
11445-0Y020 Spacer, Cylinder Block Water Jacket[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
11445-0Y020 |
US $16.75 |
||
|
11452
|
11452
11452-0Y020
Guide, Oil Level Gage
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
11452-0Y020 |
— | ||
|
11452
|
11452
11452-0Y030
Guide, Oil Level Gage
[07.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *230 OR *432 |
11452-0Y030 |
— | ||
|
11452B
|
11452B
90301-T0025 Ring, O(For Oil Level Gage Guide)[07.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *230 OR *432 |
90301-T0025 |
US $2.32 |
||
|
11452B
|
11452B
90301-T0060
Ring, O(For Oil Level Gage Guide)
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
90301-T0060 |
— | ||
|
12101
|
12101
12101-0Y080 Pan Sub-Assy, Oil[04.2016 -] 1NRFE..NSP150..CVT *264 |
12101-0Y080 |
US $100.87 |
||
|
12101
|
12101
12101-0Y090 Pan Sub-Assy, Oil[07.2016 -] 1NRFE..NSP150..CVT *230 OR *432 |
12101-0Y090 |
US $107.35 |
||
|
12101A
|
12101A
90341-12032 Plug(For Oil Pan Drain)[07.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *230 OR *432 |
90341-12032 |
from US $3.04 |
||
|
12101A
|
12101A
90341-T0017
Plug(For Oil Pan Drain)
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
90341-T0017 |
— | ||
|
12101B
|
12101B
90430-T0024
Gasket(For Oil Pan Drain Plug)
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
90430-T0024 |
— | ||
|
12101C
|
12101C
90301-T0054
Ring, O(For Oil Pan)
[07.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *230 OR *432,NO.1 |
90301-T0054 |
— | ||
|
12101C
|
12101C
90301-T0055
Ring, O
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264,NO.1 |
90301-T0055 |
— | ||
|
12101C
|
12101C
90301-T0056
Ring, O(For Oil Pan)
[07.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *230 OR *432,NO.2 |
90301-T0056 |
— | ||
|
12101C
|
12101C
90301-T0057
Ring, O(For Oil Pan)
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264,NO.2 |
90301-T0057 |
— | ||
|
12101L
|
12101L
90430-T0022
Gasket No.1(For Oil Pan)
[07.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *230 OR *432 |
90430-T0022 |
— | ||
|
12101L
|
12101L
90430-T0023
Gasket No.1(For Oil Pan)
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
90430-T0023 |
— | ||
|
12121
|
12121
12121-47030 Plate, Oil Pan Baffle, No.1[04.2016 -] 1NRFE..NSP150..CVT *264 |
12121-47030 |
US $28.39 |
||
|
12122
|
12122
12122-0Y010
Plate, Oil Pan Baffle, No.2
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
12122-0Y010 |
— | ||
|
12122
|
12122
12122-0Y020
Plate, Oil Pan Baffle, No.2
[07.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *230 OR *432 |
12122-0Y020 |
— | ||
|
12137
|
12137
12137-0Y020
Protector, Oil Pan
[04.2016 -] 1NRFE,2NRFE..NSP15#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
12137-0Y020 |
— | ||
|
12144
|
12144
12144-47020
Silencer, Oil Pan Cover
[04.2016 -] 1NRFE,2NRFE..NSP15#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
12144-47020 |
— | ||
|
15301
|
15301
15301-0Y070
Gage Sub-Assy, Oil Level
[04.2016 -] 1NRFE..NSP150..CVT *264 |
15301-0Y070 |
— | ||
|
15708
|
15708
15708-0Y040
Nozzle Sub-Assy, Oil, No.1
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
15708-0Y040 |
— | ||
|
90105T0171
|
90105T0171
90105-T0171
BOLT FLANGE
|
90105-T0171 |
— | ||
|
90110T0002
|
90110T0002
90110-T0002
Bolt, Oil Nozzle Union
|
90110-T0002 |
— | ||
|
90119T0260
|
90119T0260
90119-T0260
New Genuine Part
|
90119-T0260 |
— | ||
|
90119T0342
|
90119T0342
90119-T0342
Bolt (For Transmission Control Cable Bracket)
|
90119-T0342 |
— | ||
|
90250T0019
|
90250T0019
90250-T0019
Pin, Straight(For Chain Tensioner)
|
90250-T0019 |
— |
