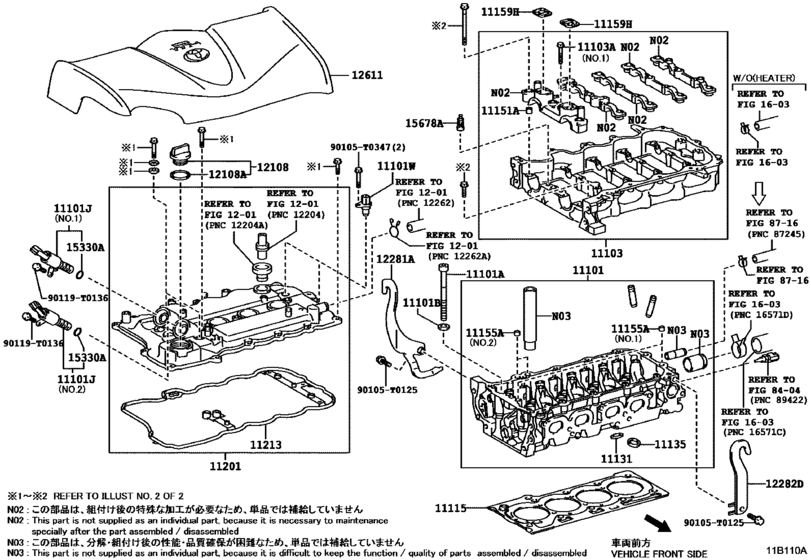

Cylinder Head ([04.2016 - ] (1604- )1NRFE,2NRFE) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP150
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- CATEGORY
- B
- From
- 04.2016
- No.of Doors
- 4D
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-09570 Head Sub-Assy, Cylinder[04.2016 -] 2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP150,151..(GCC,GEN,IDN,MA,PH,TAIW,VN)..(B,C) *264 |
11101-09570 |
US $1,284.58 |
||
|
11101
|
11101
11101-09610
Head Sub-Assy, Cylinder
[07.2016 -] 2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP150,151..(GCC,GEN,IDN,MA,PH,TAIW,VN)..(B,C) *230 OR *432 |
11101-09610 |
— | ||
|
11101A
|
11101A
90910-T2012
Bolt(For Cylinder Head Set)
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
90910-T2012 |
— | ||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
90201-10344 |
US $1.76 |
||
|
11101J
|
11101J
15330-0Y050 Valve Assy, Camshaft Timing Oil Control[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264,NO.1; 1NRFE..NSP150..RHD..(G,R);1NRFE,2NRFE..NSP15#..(GCC,TH)..C;1NRFE,2NRFE..NSP15#..ID N,MA,PH,TAIW,VN *230 OR *432,NO.1 |
15330-0Y050 |
US $77.28 |
||
|
11101J
|
11101J
15330-0Y060 Valve Assy, Camshaft Timing Oil Control[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264,NO.2; 1NRFE..NSP150..RHD..(G,R);1NRFE,2NRFE..NSP15#..(GCC,TH)..C;1NRFE,2NRFE..NSP15#..ID N,MA,PH,TAIW,VN *230 OR *432,NO.2 |
15330-0Y060 |
US $69.42 |
||
|
11101W
|
11101W
90919-T5002
Sensor, Cam Position
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
90919-T5002 |
— | ||
|
11103
|
11103
11103-0Y040 Housing Sub-Assy, Camshaft[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
11103-0Y040 |
US $173.55 |
||
|
11103
|
11103
11103-0Y070 Housing Sub-Assy, Camshaft[07.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *230 OR *432 |
11103-0Y070 |
US $191.31 |
||
|
11103A
|
11103A
90105-T0271
Bolt(For Camshaft Housing Set)
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264,NO.2 |
90105-T0271 |
— | ||
|
11103A
|
11103A
90119-T0443
Bolt(For Camshaft Housing Set)
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264,NO.1 |
90119-T0443 |
— | ||
|
11115
|
11115
11115-0Y030 Gasket, Cylinder Head[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
11115-0Y030 |
US $30.99 |
||
|
11115
|
11115
11115-0Y040
Gasket, Cylinder Head
[07.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *230 OR *432 |
11115-0Y040 |
— | ||
|
11131
|
11131
11131-0Y030
Seat, Intake Valve
[04.2016 -] 2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP150,151..(GCC,GEN,IDN,MA,PH,TAIW,VN)..(B,C) STD,*264 |
11131-0Y030 |
— | ||
|
11131
|
11131
11131-0Y080
Seat, Intake Valve
[07.2016 -] 2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP150,151..(GCC,GEN,IDN,MA,PH,TAIW,VN)..(B,C) STD,*230 OR *432 |
11131-0Y080 |
— | ||
|
11135
|
11135
11135-0Y030
Seat, Exhaust Valve
[04.2016 -] 2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP150,151..(GCC,GEN,IDN,MA,PH,TAIW,VN)..(B,C) STD,*264 |
11135-0Y030 |
— | ||
|
11135
|
11135
11135-0Y050
Seat, Exhaust Valve
[07.2016 -] 2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP150,151..(GCC,GEN,IDN,MA,PH,TAIW,VN)..(B,C) STD,*230 OR *432 |
11135-0Y050 |
— | ||
|
11151A
|
11151A
90253-13005 Pin, Ring(For Camshaft Bearing Cap Setting)[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C L=12.5,OD=8,*264 |
90253-13005 |
from US $0.60 |
||
|
11155A
|
11155A
90253-11004 Pin, Ring[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264,NO.1 |
90253-11004 |
from US $0.92 |
||
|
11155A
|
11155A
90253-12002 Pin, Ring[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264,NO.2 |
90253-12002 |
from US $0.64 |
||
|
11159H
|
11159H
11159-0Y020 Gasket, Camshaft Bearing Cap Oil Hole[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
11159-0Y020 |
from US $3.49 |
||
|
11159H
|
11159H
11159-0Y030
Gasket, Camshaft Bearing Cap Oil Hole
[07.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *230 OR *432 |
11159-0Y030 |
— | ||
|
11201
|
11201
11201-0Y030 Cover Sub-Assy, Cylinder Head[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
11201-0Y030 |
US $240.47 |
||
|
11213
|
11213
11213-0Y030
Gasket, Cylinder Head Cover
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
11213-0Y030 |
— | ||
|
12108
|
12108
12180-0H020
Cap Sub-Assy, Oil Filler
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
12180-0H020 |
— | ||
|
12108A
|
12108A
90080-43027
Gasket(For Oil Filler Cap)
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
90080-43027 |
— | ||
|
12281A
|
12281A
12281-0Y070
Hanger, Engine, No.1
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
12281-0Y070 |
— | ||
|
12282D
|
12282D
12282-0Y060
Hanger, Engine, No.2
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
12282-0Y060 |
— | ||
|
12611
|
12611
12611-0Y110 Cover, Engine, No.1[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C |
12611-0Y110 |
US $67.08 |
||
|
15330A
|
15330A
90068-14041 Ring, O(For Cam Timing Oil Control Valve)[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264; 1NRFE..NSP150..RHD..(G,R);1NRFE,2NRFE..NSP15#..(GCC,TH)..C;1NRFE,2NRFE..NSP15#..ID N,MA,PH,TAIW,VN *230 OR *432 |
90068-14041 |
US $2.72 |
||
|
15678A
|
15678A
15678-0Y010
Filter, Oil Control Valve
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C *264 |
15678-0Y010 |
— | ||
|
90105T0125
|
90105T0125
90105-T0125
Bolt(For Alternator)
|
90105-T0125 |
— | ||
|
90105T0347
|
90105T0347
90105-T0347 Bolt(For Head To Camshaft Bearing Cap) |
90105-T0347 |
US $0.73 |
||
|
90119T0136
|
90119T0136
90119-T0136
New Genuine Part
|
90119-T0136 |
— |
