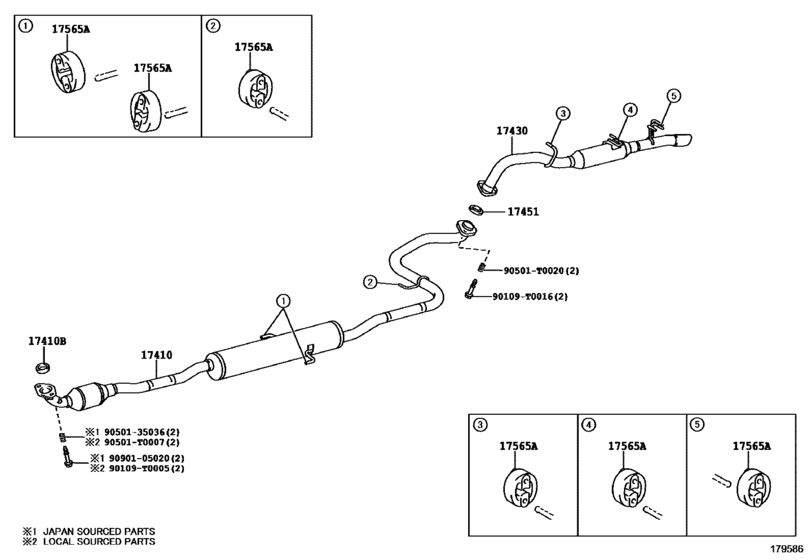

Exhaust Pipe ([12.2016 - ] (1612- )1NRFE,2NRFE..GCC,GEN,MA,PH,TH,VN..B) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP150
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- CATEGORY
- B
- From
- 04.2016
- No.of Doors
- 4D
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-0Y480
Pipe Assy, Exhaust, Front
[02.2017 -] 1NRFE,2NRFE..NSP15#..(GCC,GEN,TH)..B |
17410-0Y480 |
— | ||
| replacement | |||||
|
17410
|
17410
17410-0Y481
Pipe Assy, Exhaust, Front
[02.2017 -] 1NRFE,2NRFE..NSP15#..(GCC,GEN,TH)..B |
17410-0Y481 |
— | ||
|
17410
|
17410
17410-0Y510
Pipe Assy, Exhaust, Front
[04.2016 - 02.2017] 1NRFE,2NRFE..NSP15#..(GCC,GEN,TH)..B |
17410-0Y510 |
— | ||
|
17410
|
17410
17410-0Y570
Pipe Assy, Exhaust, Front
[04.2016 - 02.2017] 1NRFE,2NRFE..NSP15#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
17410-0Y570 |
— | ||
|
17410
|
17410
17410-0Y580
Pipe Assy, Exhaust, Front
[02.2017 -] 1NRFE,2NRFE..NSP15#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
17410-0Y580 |
— | ||
| replacement | |||||
|
17410
|
17410
17410-0Y581
Pipe Assy, Exhaust, Front
[02.2017 -] 1NRFE,2NRFE..NSP15#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
17410-0Y581 |
— | ||
|
17410B
|
17410B
17451-0M020
Gasket, Exhaust Pipe
[04.2013 -] 1N#,2N#..NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN |
17451-0M020 |
— | ||
|
17430
|
17430
17430-0Y250
Pipe Assy, Exhaust, Tail
[04.2016 - 02.2017] 1NRFE,2NRFE..NSP15#..(GCC,GEN,TH)..B |
17430-0Y250 |
— | ||
|
17430
|
17430
17430-0Y251
Pipe Assy, Exhaust, Tail
[02.2017 -] 1NRFE,2NRFE..NSP15#..(GCC,GEN,TH)..B |
17430-0Y251 |
— | ||
|
17451
|
17451
17451-0M032 Gasket, Exhaust Pipe[02.2017 -] 1NRFE,2NRFE..NSP15#..(GCC,GEN,MA,PH,TH,VN)..B |
17451-0M032 |
US $10.69 |
||
|
17451
|
17451
90917-06048 Gasket, Exhaust Pipe[04.2016 - 02.2017] 1NRFE,2NRFE..NSP15#..(GCC,GEN,MA,PH,TH,VN)..B |
90917-06048 |
from US $4.80 |
||
|
17565A
|
17565A
17565-0M030 Support, Exhaust Pipe, No.4[04.2016 - 02.2017] 1NRFE,2NRFE..NSP15#..(GCC,GEN,MA,PH,TH,VN)..B |
17565-0M030 |
US $4.54 |
||
|
90109T0005
|
90109T0005
90109-T0005 BOLT |
90109-T0005 |
US $2.91 |
||
|
90109T0016
|
90109T0016
90109-T0016
Bolt
|
90109-T0016 |
— | ||
|
90501T0007
|
90501T0007
90501-T0007 SPRING |
90501-T0007 |
from US $2.91 |
||
|
90501T0020
|
90501T0020
90501-T0020
New Genuine Part
|
90501-T0020 |
— | ||
|
9050135036
|
9050135036
90501-35036 SPRING COMPRESSION |
90501-35036 |
US $3.20 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
