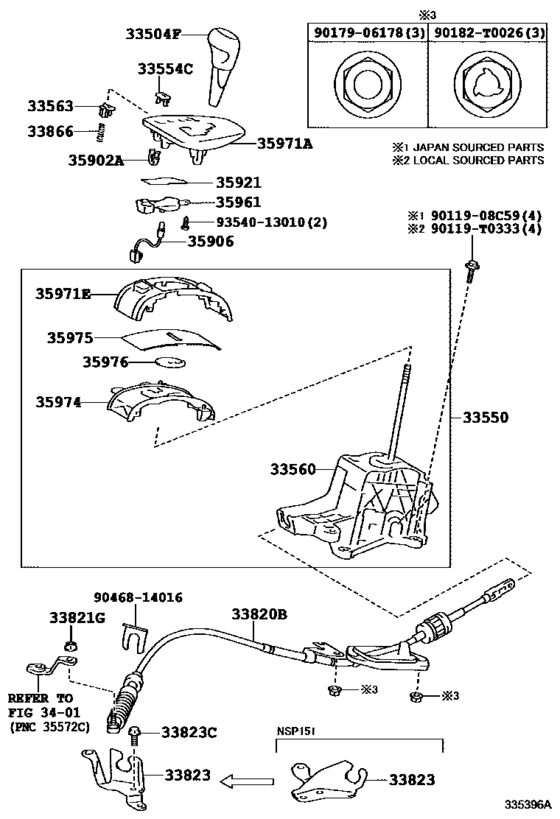

Shift Lever & Retainer ([04.2016 - ] (1604- )CVT..GCC,GEN,IDN,MA,PH,TH,VN) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP150
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- CATEGORY
- B
- From
- 04.2016
- No.of Doors
- 4D
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-0D390-C0
Knob Sub-Assy, Shift Lever
[04.2013 -] NCP150..TAIW..R;NSP150..CVT..GCC;NCP151..4FC..(GCC,PH);NCP150..4FC..(GCC,GEN)..G;N CP151,NSP150..RHD..(ATM,CVT);NSP151..CVT..(GCC,GEN)..(D,G);NSP151..CVT..(GCC,GEN,T AIW,TH,VN)..R;NCP150..4FC..(GCC,GEN,IDN,MA,TH)..(D,R);NCP151,NSP150..LHD..(AT |
33504-0D390-C0 |
— | ||
|
33550
|
33550
33550-0D520
Floor Shift Assy, Transmission
[04.2016 -] NSP15#..LHD..CVT..(GCC,GEN,PH,VN)..B |
33550-0D520 |
— | ||
|
33554C
|
33554C
33502-0D030
Cover, Shift Lock Release Button
[08.2013 - 04.2017] NCP15#,NSP15#..(ATM,CVT)..(GCC,GEN)..D..B |
33502-0D030 |
— | ||
|
33560
|
33560
33560-0D140
Unit Assy, Shift Lock Control
[04.2016 -] NSP15#..LHD..CVT..(GCC,GEN,PH,VN)..B |
33560-0D140 |
— | ||
|
33563
|
33563
33563-0D120
Button, Shift Lock Release
[04.2016 -] NSP15#..LHD..CVT..(GCC,GEN,PH,VN) |
33563-0D120 |
— | ||
|
33820B
|
33820B
33820-0D520
Cable Assy, Transmission Control
[04.2016 -] NSP150..CVT..B |
33820-0D520 |
— | ||
|
33821G
|
33821G
90179-08040 Nut, Cap(For Cylinder Head Cover)[04.2013 -] NCP15#,NSP150..ATM,CVT;NSP151..CVT..(GCC,GEN,IDN,PH,TAIW,TH,VN) |
90179-08040 |
from US $1.13 |
||
|
33823
|
33823
33823-0D110
Bracket, Transmission Control Cable, No.1
[04.2016 -] NSP150..CVT..B |
33823-0D110 |
— | ||
|
33823C
|
33823C
90119-T0102
Bolt (For Transmission Control Cable Bracket)
[04.2013 -] NSP15#..CVT |
90119-T0102 |
— | ||
|
33866
|
33866
33866-06030
Spring, Shift Lock Release
[04.2013 -] NCP15#,NSP15#..(ATM,CVT)..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
33866-06030 |
— | ||
|
35902A
|
35902A
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing[04.2013 -] NCP15#,NSP15#..ATM,CVT |
90467-10201 |
from US $0.96 |
||
|
35906
|
35906
35906-0D130
Wire Sub-Assy, Indicator Lamp
[07.2013 -] NCP15#,NSP15#..LHD..(ATM,CVT)..(GCC,GEN,PH,VN)..B |
35906-0D130 |
— | ||
|
35921
|
35921
35921-0D040
Plate, Control Position Indicator
[04.2016 -] NSP15#..LHD..CVT..(GCC,GEN,PH,VN)..B |
35921-0D040 |
— | ||
|
35961
|
35961
35961-0D050
Housing, Position Indicator Lamp
[04.2016 -] NSP15#..LHD..CVT..(GCC,GEN,PH,VN)..B |
35961-0D050 |
— | ||
|
35971A
|
35971A
35971-0D250
Housing, Position Indicator, Upper
[04.2016 -] NSP15#..LHD..CVT..(GCC,GEN)..D..B |
35971-0D250 |
— | ||
|
35971E
|
35971E
35971-0D260
Housing, Position Indicator
[04.2013 -] NCP15#,NSP15#..(ATM,CVT)..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
35971-0D260 |
— | ||
|
35974
|
35974
35974-0D020
Housing, Position Indicator, Lower
[07.2013 -] NCP15#,NSP15#..LHD..(ATM,CVT)..(GCC,GEN,PH,VN)..B |
35974-0D020 |
— | ||
|
35975
|
35975
35975-0D070
Cover, Slide (For Position Indicator)
[04.2013 -] NCP15#,NSP15#..(ATM,CVT)..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
35975-0D070 |
— | ||
|
35976
|
35976
35976-0D100
Cover, Slide, No.2 (For Position Indicator)
[04.2013 -] NCP15#,NSP15#..(ATM,CVT)..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
35976-0D100 |
— | ||
|
90119T0333
|
90119T0333
90119-T0333
New Genuine Part
|
90119-T0333 |
— | ||
|
90182T0026
|
90182T0026
90182-T0026
New Genuine Part
|
90182-T0026 |
— | ||
|
9011908C59
|
9011908C59
90119-08C59 New Genuine Part |
90119-08C59 |
US $1.28 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9354013010
|
9354013010
93540-13010 SCREW |
93540-13010 |
from US $2.33 |
