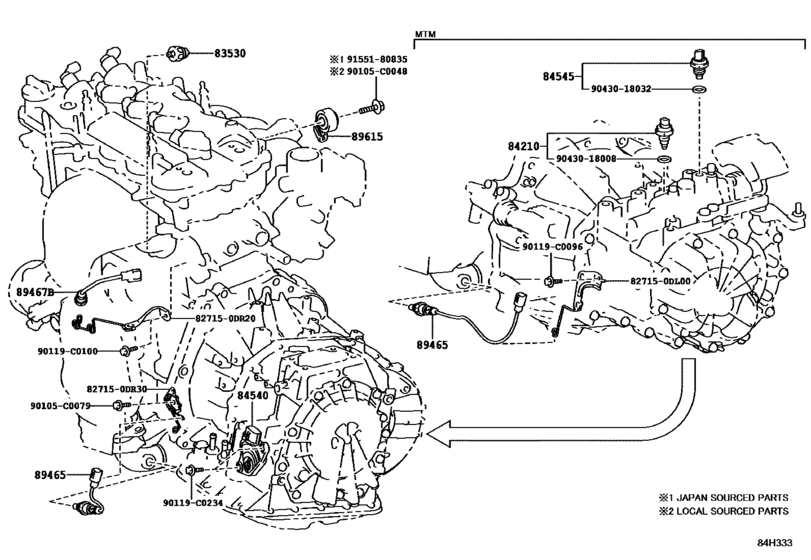

Switch & Relay & Computer ([08.2016 - 12.2017] ENGINE & TRANSMISSION (1608-1712)) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- NSP151
- ENGINE
- 7NRFE
- TRANSMISSION
- CVT
- From
- 03.2017
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[08.2016 -] NSP15# DENSO |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2016 -] NSP15# DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[08.2016 -] NSP15# DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2016 -] NSP15# YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-02020
Switch Assy, Neutral Start
[08.2016 -] NSP15#..CVT |
84540-02020 |
— | ||
|
89465
|
89465
89465-0D230
Sensor, Oxygen
[08.2016 -] NSP15#..CVT |
89465-0D230 |
— | ||
|
89467B
|
89467B
89467-0D050
Sensor, Air Fuel Ratio
[08.2016 -] NSP15# |
89467-0D050 |
— | ||
|
89615
|
89615
89615-20090 Sensor, Knock Control[08.2016 -] NSP15# |
89615-20090 |
from US $36.02 |
||
|
90105C0048
|
90105C0048
90105-C0048
New Genuine Part
|
90105-C0048 |
— | ||
|
90105C0079
|
90105C0079
90105-C0079
New Genuine Part
|
90105-C0079 |
— | ||
|
90119C0096
|
90119C0096
90119-C0096
New Genuine Part
|
90119-C0096 |
— | ||
|
90119C0100
|
90119C0100
90119-C0100
New Genuine Part
|
90119-C0100 |
— | ||
|
90119C0234
|
90119C0234
90119-C0234
New Genuine Part
|
90119-C0234 |
— | ||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9043018032
|
9043018032
90430-18032 New Genuine Part |
90430-18032 |
US $1.44 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.86 |
||
