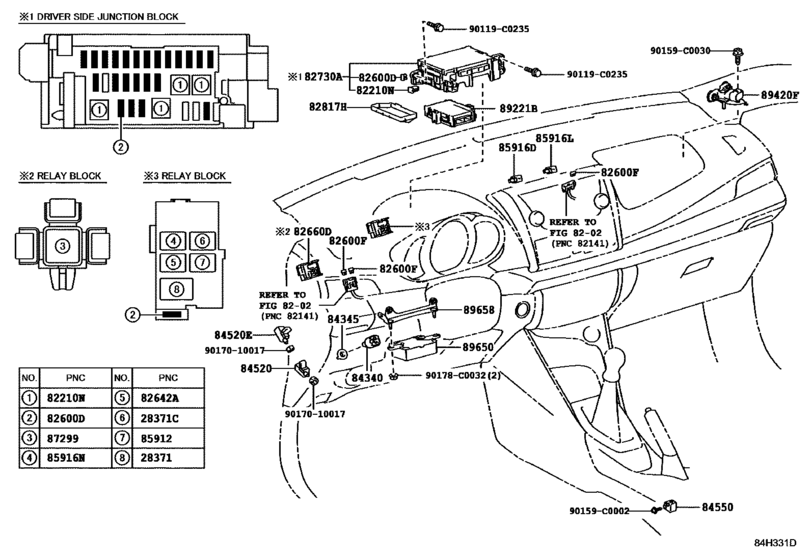

Switch & Relay & Computer ([08.2016 - ] COWL (1608- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- NSP151
- ENGINE
- 7NRFE
- TRANSMISSION
- CVT
- From
- 03.2017
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-C2001
Relay, Ignition, No.1
[08.2016 -] 7NRFE..NSP151..G |
90987-C2001 |
— | ||
|
28371C
|
28371C
90987-T2005
Relay, Water Pump
[08.2016 -] 7NRFE..NSP151..G |
90987-T2005 |
— | ||
|
82210N
|
82210N
90982-08294 Fusible Link[08.2016 -] NSP15# 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210N
|
82210N
90982-08295 Fusible Link[08.2016 -] NSP15# 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[08.2016 -] NSP15# 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[08.2016 -] NSP15# 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[08.2016 -] NSP15# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[08.2016 -] NSP15# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[08.2016 -] NSP15# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[08.2016 -] NSP15# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[03.2017 -] NSP15#..4D 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[03.2017 -] NSP15#..4D 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82642A
|
82642A
90987-02027 Relay[08.2016 -] NSP151 (J) |
90987-02027 |
from US $33.62 |
||
|
82642A
|
82642A
90987-T2005
Relay, Water Pump
[08.2016 -] NSP151 (L) |
90987-T2005 |
— | ||
|
82660D
|
82660D
82660-74010 Block Assy, RelayRELAY [08.2016 -] NSP15# |
82660-74010 |
US $17.78 |
||
|
82730A
|
82730A
82730-0D890
Block Assy, Driver Side Junction
[08.2016 -] NSP15# |
82730-0D890 |
— | ||
|
82817H
|
82817H
82817-0D780
Protector, Wiring Harness
[08.2016 -] NSP15# |
82817-0D780 |
— | ||
|
84340
|
84340
84340-09240
Switch Assy, Stop Lamp
[08.2016 -] NSP15# |
84340-09240 |
— | ||
|
84345
|
84345
84345-0R010
Adjuster, Stop Lamp Switch Mounting
[08.2016 -] NSP15# |
84345-0R010 |
— | ||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[08.2016 -] NSP15# |
84550-16060 |
from US $17.48 |
||
|
85912
|
85912
90987-T2005
Relay, Water Pump
[08.2016 -] NSP15# |
90987-T2005 |
— | ||
|
85916D
|
85916D
90987-T2005
Relay, Water Pump
[08.2016 -] NSP151..G,N |
90987-T2005 |
— | ||
|
85916L
|
85916L
90987-T2005
Relay, Water Pump
[08.2016 -] NSP15# |
90987-T2005 |
— | ||
|
85916N
|
85916N
90987-T2005
Relay, Water Pump
[08.2016 -] NSP151..G |
90987-T2005 |
— | ||
|
87299
|
87299
90987-02025 Relay[08.2016 -] NSP15# (J) |
90987-02025 |
from US $44.54 |
||
|
87299
|
87299
90987-T2004
Relay, Water Pump
[08.2016 -] NSP15# (L) |
90987-T2004 |
— | ||
|
89221B
|
89221B
89221-0D331
Computer, Body
[08.2016 -] NSP15#..5D;NSP151..4D..G |
89221-0D331 |
— | ||
|
89420F
|
89420F
89420-52100
Sensor Assy, Vacuum
[08.2016 -] NSP15#; NSP151 EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS); NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
89420-52100 |
— | ||
|
89650
|
89650
89650-0D590
Computer Assy, Power Steering
[08.2016 -] NSP15# |
89650-0D590 |
— | ||
|
90119C0235
|
90119C0235
90119-C0235
New Genuine Part
|
90119-C0235 |
— | ||
|
90159C0002
|
90159C0002
90159-C0002
New Genuine Part
|
90159-C0002 |
— | ||
|
90159C0030
|
90159C0030
90159-C0030
New Genuine Part
|
90159-C0030 |
— | ||
|
90178C0032
|
90178C0032
90178-C0032
Nut, Wire Adjusting, No.1
|
90178-C0032 |
— | ||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
