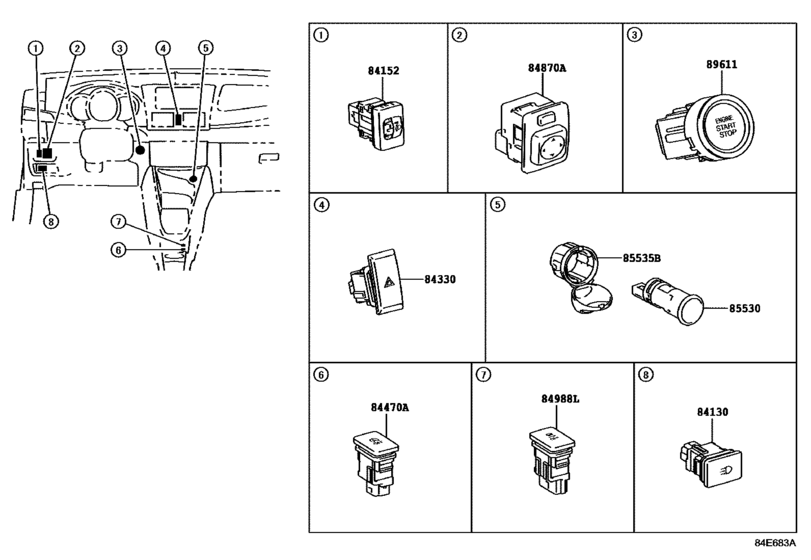

Switch & Relay & Computer ([12.2013 - ] INSTRUMENT PANEL (1312- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- NSP151
- ENGINE
- 7NRFE
- TRANSMISSION
- CVT
- From
- 03.2017
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84130
|
84130
84130-0D020
Switch Assy, Daytime Running Light
[08.2016 -] NSP151 |
84130-0D020 |
— | ||
|
84152
|
84152
84152-52131 Switch, Headlamp Leveling[08.2016 -] NSP151..G |
84152-52131 |
US $45.72 |
||
|
84330
|
84330
84332-0D100
Switch Assy, Hazard Warning Signal
[08.2016 -] NSP15# |
84332-0D100 |
— | ||
|
84470A
|
84470A
84470-0D050
Switch Assy, Ecorun Cancel
[08.2016 -] NSP15# |
84470-0D050 |
— | ||
|
84870A
|
84870A
84870-0D070
Switch Assy, Outer Mirror
[08.2016 -] NSP15#; NSP150..5F WITH(ENTRY PACKAGE) |
84870-0D070 |
— | ||
|
84988L
|
84988L
84988-0E041
Switch, Vsc Off
[08.2016 -] NSP15# |
84988-0E041 |
— | ||
|
85530
|
85530
85530-06040
Socket Assy, Power Outlet, No.1
[08.2016 -] NSP15# |
85530-06040 |
— | ||
|
85535B
|
85535B
85535-0D040
Cover, Power Outlet Socket, No.1
[08.2016 -] NSP15# |
85535-0D040 |
— | ||
|
89611
|
89611
89611-06083
Switch, Push Start
[08.2016 -] NSP151..G |
89611-06083 |
— |
