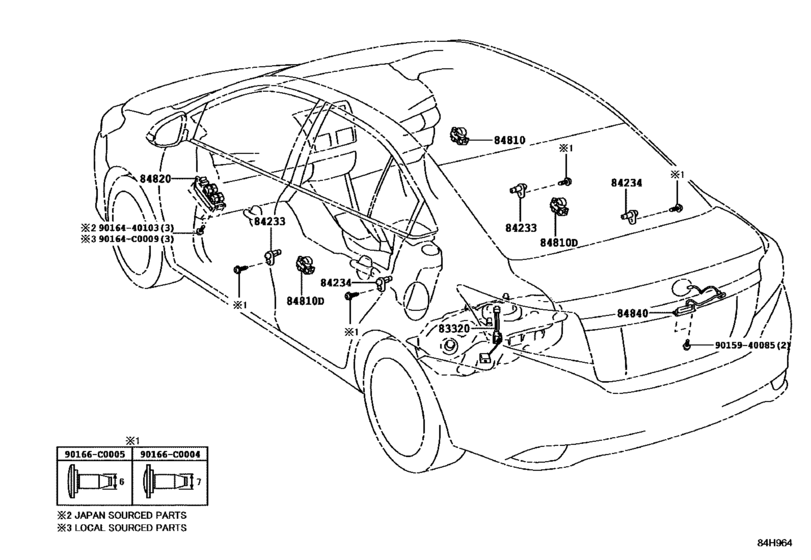

Switch & Relay & Computer ([03.2017 - ] DOOR,ROOF,FLOOR & LUGGAGE (1703- )4D) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- NSP151
- ENGINE
- 7NRFE
- TRANSMISSION
- CVT
- From
- 03.2017
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-0D140
Gage Assy, Fuel Sender
[08.2016 -] NSP15# |
83320-0D140 |
— | ||
|
84233
|
84233
84231-0D110
Switch Assy, Courtesy Lamp (For Front Door)
[08.2016 -] NSP15# |
84231-0D110 |
— | ||
|
84234
|
84234
84231-0D110
Switch Assy, Courtesy Lamp (For Front Door)
[08.2016 -] NSP15# |
84231-0D110 |
— | ||
|
84810
|
84810
84810-06060
Switch Assy, Power Window Regulator
[08.2016 -] NSP15# |
84810-06060 |
— | ||
|
84810D
|
84810D
84810-06060
Switch Assy, Power Window Regulator
[08.2016 -] NSP15# |
84810-06060 |
— | ||
|
84820
|
84820
84820-0D360
Master Switch Assy, Power Window Regulator
[08.2016 -] NSP15# |
84820-0D360 |
— | ||
|
84840
|
84840
84840-52030
Switch Assy, Luggage Compartment Door Opening
[03.2017 -] NSP151..4D..G |
84840-52030 |
— | ||
|
90164C0009
|
90164C0009
90164-C0009
New Genuine Part
|
90164-C0009 |
— | ||
|
90166C0004
|
90166C0004
90166-C0004
New Genuine Part
|
90166-C0004 |
— | ||
|
90166C0005
|
90166C0005
90166-C0005
New Genuine Part
|
90166-C0005 |
— | ||
|
9015940085
|
9015940085
90159-40085 SCREW |
90159-40085 |
from US $0.74 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
