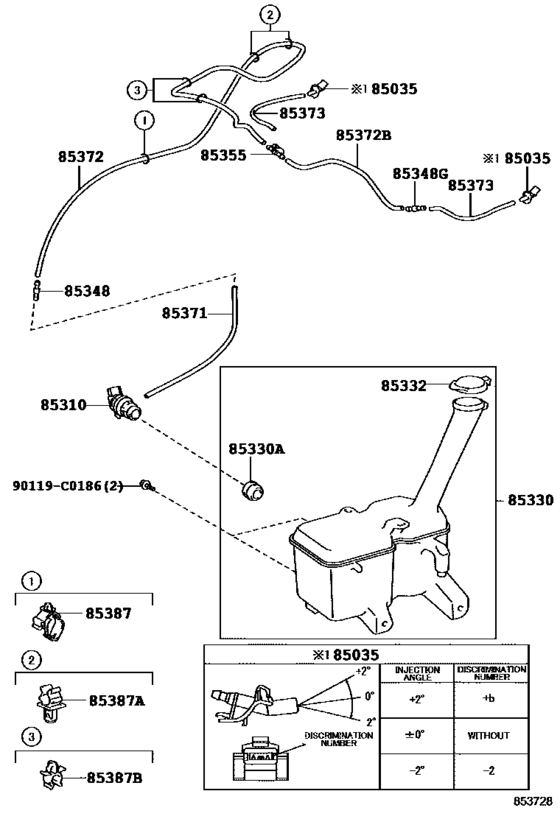

Windshield Washer ([03.2017 - ] (1703- )4D) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- NSP151
- ENGINE
- 7NRFE
- TRANSMISSION
- CVT
- From
- 03.2017
- No.of Doors
- 4D
- Model Mark
- R
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12400 Nozzle Sub-Assy, Washer[08.2016 -] NSP15# ANGLE -2 |
85381-12400 |
from US $8.56 |
||
|
85035
|
85035
85381-30220 Nozzle Sub-Assy, Washer[08.2016 -] NSP15# ANGLE +2 |
85381-30220 |
from US $9.43 |
||
|
85035
|
85035
85381-30230 Nozzle Sub-Assy, Washer[08.2016 -] NSP15# ANGLE 0 |
85381-30230 |
US $14.12 |
||
|
85310
|
85310
85330-71020 Motor And Pump Assy, Windshield Washer[08.2016 -] NSP15# |
85330-71020 |
from US $54.86 |
||
|
85330
|
85330
85315-0D370
Jar Assy, Windshield Washer
[03.2017 -] NSP15#..4D |
85315-0D370 |
— | ||
|
85330A
|
85330A
85336-60300 Bush, Windshield Washer Jar[08.2016 -] NSP15# |
85336-60300 |
from US $1.92 |
||
|
85332
|
85332
85316-0D200
Cap, Windshield Washer Jar
[08.2016 -] NSP15# |
85316-0D200 |
— | ||
|
85348
|
85348
85375-0E140
Joint, Rear Washer Hose, No.1
[08.2016 -] NSP15# |
85375-0E140 |
— | ||
|
85348G
|
85348G
85375-0E140
Joint, Rear Washer Hose, No.1
[08.2016 -] NSP15# |
85375-0E140 |
— | ||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[08.2016 -] NSP15# |
85321-28020 |
from US $10.65 |
||
|
85371
|
85371
90068-33136
Hose, Windshield Washer (From Motor To Joint)
[08.2016 -] NSP15# L=270 |
90068-33136 |
— | ||
|
85372
|
85372
90068-59116
Hose, Windshield Washer (From Joint To Joint), No.1
[08.2016 -] NSP15# L=1560 |
90068-59116 |
— | ||
|
85372B
|
85372B
90068-59106
Hose, Windshield Washer (From Joint To Joint), No.2
[08.2016 -] NSP15# L=305 |
90068-59106 |
— | ||
|
85373
|
85373
90068-33192
Hose, Windshield Washer (From Joint To Nozzle)
[08.2016 -] NSP15# L=230 |
90068-33192 |
— | ||
|
85387
|
85387
82711-3F230 Clamp, Sliding Roof Drain Hose[08.2016 -] NSP15# |
82711-3F230 |
US $3.20 |
||
|
85387A
|
85387A
85371-52110 Clamp[08.2016 -] NSP15# |
85371-52110 |
US $1.44 |
||
|
85387B
|
85387B
90469-07011 Clamp No.1 (For Windseield Washer)[08.2016 -] NSP15# |
90469-07011 |
from US $1.76 |
||
|
90119C0186
|
90119C0186
90119-C0186
New Genuine Part
|
90119-C0186 |
— |
