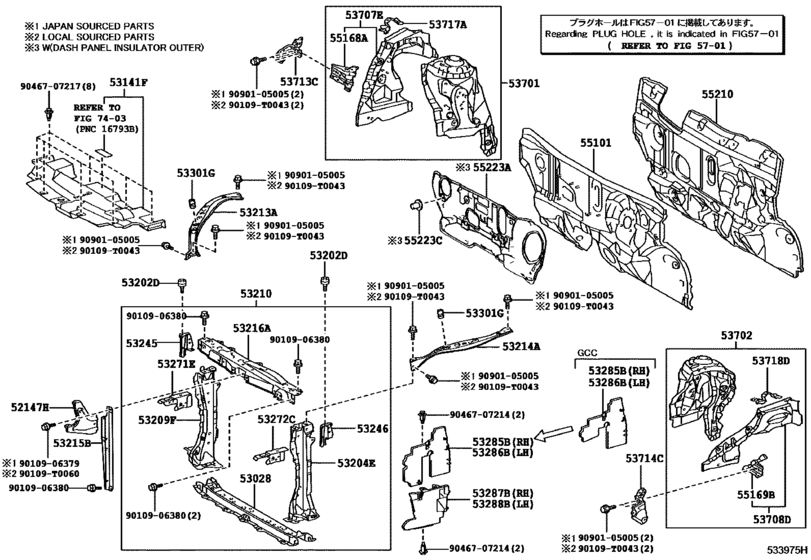

Front Fender Apron & Dash Panel ([03.2014 - ] (1403- )LHD) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP151
- ENGINE
- 2NRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- CATEGORY
- A
- From
- 07.2016
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52147H
|
52147H
52147-0D120
Bracket, Front Bumper Mounting
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
52147-0D120 |
— | ||
|
53028
|
53028
53028-0D070 Support Sub-Assy, Radiator, Lower[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53028-0D070 |
US $114.56 |
||
|
53141F
|
53141F
53141-0D081 Cover, Radiator[07.2016 -] NSP150,151..GCC,GEN,PH,VN |
53141-0D081 |
US $126.36 |
||
|
53202D
|
53202D
53119-12150 Cover, Front Bumper Side(For Gllile Guard)[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
53119-12150 |
from US $7.04 |
||
|
53204E
|
53204E
53204-0D070
Brace Sub-Assy, Radiator Support To Cross Member, Lh
[10.2013 - 02.2017] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53204-0D070 |
— | ||
| replacement | |||||
|
53204E
|
53204E
53204-0D071
Brace Sub-Assy, Radiator Support To Cross Member, Lh
[10.2013 - 02.2017] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53204-0D071 |
— | ||
|
53204E
|
53204E
53204-0D071
Brace Sub-Assy, Radiator Support To Cross Member, Lh
[03.2017 -] NSP15#..GCC,GEN,PH,TH,VN |
53204-0D071 |
— | ||
|
53209F
|
53209F
53209-0D070
Brace Sub-Assy, Radiator Support To Cross Member, Rh
[10.2013 - 02.2017] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53209-0D070 |
— | ||
| replacement | |||||
|
53209F
|
53209F
53209-0D071
Brace Sub-Assy, Radiator Support To Cross Member, Rh
[10.2013 - 02.2017] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53209-0D071 |
— | ||
|
53209F
|
53209F
53209-0D071
Brace Sub-Assy, Radiator Support To Cross Member, Rh
[03.2017 -] NSP15#..GCC,GEN,PH,TH,VN |
53209-0D071 |
— | ||
|
53210
|
53210
53210-0D917
Support Assy, Radiator
[10.2013 - 03.2017] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53210-0D917 |
— | ||
| replacement | |||||
|
53210
|
53210
53210-0D924
Support Assy, Radiator
[10.2013 - 03.2017] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53210-0D924 |
— | ||
|
53210
|
53210
53210-0D924
Support Assy, Radiator
[03.2017 -] NSP15#..GCC,GEN,PH,TH,VN |
53210-0D924 |
— | ||
|
53213A
|
53213A
53213-0D160
Support, Radiator, Upper Rh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53213-0D160 |
— | ||
|
53214A
|
53214A
53214-0D160
Support, Radiator, Upper Lh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53214-0D160 |
— | ||
|
53215B
|
53215B
53215-0D121 Support, Hood Lock[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53215-0D121 |
US $36.64 |
||
|
53216A
|
53216A
53216-0D150 Support, Radiator, Upper[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53216-0D150 |
US $76.44 |
||
|
53245
|
53245
53245-0D030
Bracket, Headlamp, Rh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53245-0D030 |
— | ||
|
53246
|
53246
53246-0D030
Bracket, Headlamp, Lh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53246-0D030 |
— | ||
|
53271E
|
53271E
53271-0D040
Bracket, Headlamp Mounting, Rh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53271-0D040 |
— | ||
|
53272C
|
53272C
53272-0D040
Bracket, Headlamp Mounting, Lh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53272-0D040 |
— | ||
|
53285B
|
53285B
53285-0D170
Seal, Radiator Side Air, No.1
[10.2013 -] NCP15#,NSP15#..GEN,PH,TH,VN |
53285-0D170 |
— | ||
|
53286B
|
53286B
53286-0D160
Seal, Radiator Side Air, No.2
[10.2013 -] NCP15#,NSP15#..GEN,PH,TH,VN |
53286-0D160 |
— | ||
|
53287B
|
53287B
53287-0D120 Extension, Radiator Support, Rh[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53287-0D120 |
US $28.76 |
||
|
53288B
|
53288B
53288-0D110 Extension, Radiator Support, Lh[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53288-0D110 |
US $30.58 |
||
|
53301G
|
53301G
90541-15111 Cushion, Radiator Support[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
90541-15111 |
from US $2.20 |
||
|
53701
|
53701
53701-0D190
Apron Sub-Assy, Front Fender, Rh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53701-0D190 |
— | ||
|
53702
|
53702
53702-0D180
Apron Sub-Assy, Front Fender, Lh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53702-0D180 |
— | ||
|
53707E
|
53707E
53707-0D020
Apron Sub-Assy, Fender Side, Rh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TAIW,TH,VN |
53707-0D020 |
— | ||
|
53708D
|
53708D
53708-0D020
Apron Sub-Assy, Fender Side, Lh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TAIW,TH,VN |
53708-0D020 |
— | ||
|
53713C
|
53713C
53713-0D070
Extension, Front Fender Apron, Front Rh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53713-0D070 |
— | ||
|
53714C
|
53714C
53714-0D070 Extension, Front Fender Apron, Front Lh[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53714-0D070 |
US $21.53 |
||
|
53717A
|
53717A
53717-0D060
Plate, Fender Apron
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53717-0D060 |
— | ||
|
53718D
|
53718D
53718-0D060
Gusset, Fender Apron, Lh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
53718-0D060 |
— | ||
|
55101
|
55101
55101-0D510
Panel Sub-Assy, Dash
[03.2014 -] NCP15#,NSP150,151..LHD..5F |
55101-0D510 |
— | ||
|
55168A
|
55168A
55168-0D050
Bracket, Front Fender Mounting, Rh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TAIW,TH,VN |
55168-0D050 |
— | ||
|
55169B
|
55169B
55169-0D050
Bracket, Front Fender Mounting, Lh
[10.2013 -] NCP15#,NSP15#..GCC,GEN,PH,TAIW,TH,VN |
55169-0D050 |
— | ||
|
55210
|
55210
55210-0D410
Insulator Assy, Dash Panel
[03.2014 -] NCP15#,NSP150,151..LHD..(GCC,GEN,PH,VN)..(D,R) |
55210-0D410 |
— | ||
|
90109T0043
|
90109T0043
90109-T0043
New Genuine Part
|
90109-T0043 |
— | ||
|
90109T0060
|
90109T0060
90109-T0060
New Genuine Part
|
90109-T0060 |
— | ||
|
9010906379
|
9010906379
90109-06379 New Genuine Part |
90109-06379 |
US $0.96 |
||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $0.96 |
||
|
9046707214
|
9046707214
90467-07214 Clip, Front Fender Liner |
90467-07214 |
from US $0.88 |
||
|
9046707217
|
9046707217
90467-07217 Clip, Radiator Support To Frame Seal |
90467-07217 |
from US $0.84 |
||
|
9090105005
|
9090105005
90901-05005 New Genuine Part |
90901-05005 |
US $1.44 |
||
