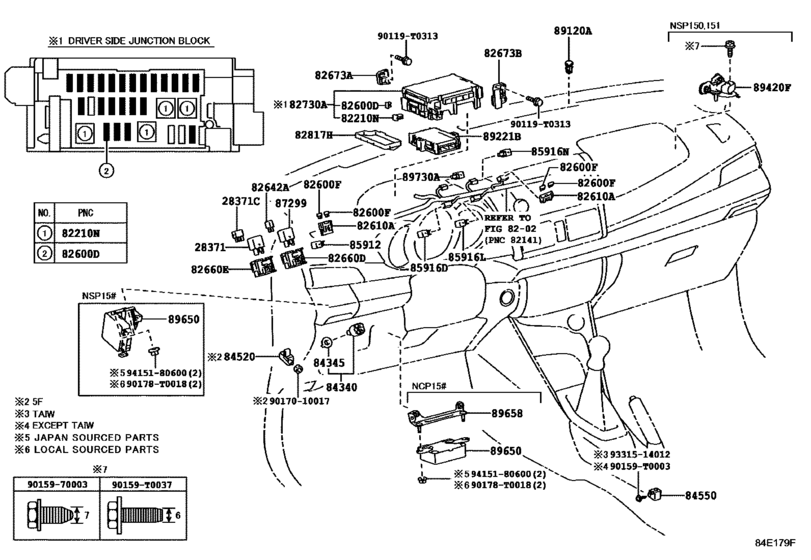

Switch & Relay & Computer ([03.2014 - ] COWL (1403- )LHD) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP151
- ENGINE
- 2NRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- CATEGORY
- A
- From
- 07.2016
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210N
|
82210N
90982-08294 Fusible Link[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210N
|
82210N
90982-08295 Fusible Link[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[10.2013 -] NSP151;NCP15#,NSP150,152..A 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[10.2013 -] NSP151;NCP15#,NSP150,152..A 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82610A
|
82610A
82610-20080 Block Assy, Fuse[10.2013 -] NSP151;NCP15#,NSP150,152..A |
82610-20080 |
US $4.37 |
||
|
82660D
|
82660D
82660-74010 Block Assy, RelayRELAY [10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
82660-74010 |
US $17.78 |
||
|
82673A
|
82673A
82673-0D031
Bracket, Junction Block
[03.2014 -] NCP15#,NSP150,151..LHD |
82673-0D031 |
— | ||
|
82673B
|
82673B
82673-0D040
Bracket, Junction Block
[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
82673-0D040 |
— | ||
|
82730A
|
82730A
82730-0D551
Block Assy, Driver Side Junction
[03.2014 -] NCP15#,NSP150,151..LHD..(GCC,GEN,PH,VN) |
82730-0D551 |
— | ||
|
82730A
|
82730A
82730-0D561
Block Assy, Driver Side Junction
[03.2014 -] NCP15#,NSP150,151..5F..D J-LO PACKAGE(FOR LATIN AMERICA) |
82730-0D561 |
— | ||
|
82817H
|
82817H
82817-0D380
Protector, Wiring Harness
[03.2014 -] NCP15#,NSP150,151..LHD |
82817-0D380 |
— | ||
|
84340
|
84340
84340-09040
Switch Assy, Stop Lamp
[03.2014 - 06.2017] NCP15#,NSP150,151 |
84340-09040 |
— | ||
|
84345
|
84345
84345-0K010
Adjuster, Stop Lamp Switch Mounting
[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN |
84345-0K010 |
— | ||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[03.2014 -] NCP15#,NSP150,151..5F |
84520-42010 |
from US $34.35 |
||
|
84550
|
84550
84550-02030 Switch Assy, Parking BrakePARKING BRAKE [10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN |
84550-02030 |
US $25.76 |
||
|
85912
|
85912
90987-02027 Relay[10.2013 -] NCP150..D,G;NCP151,NSP150..5F..G;NCP150,NSP152..(R,V)..A;NCP151,NSP150,151..(D,R,V )..A;NCP151,NSP150,151..(GCC,IDN,PH,TAIW)..G (J); NSP152 G PACKAGE,(J) |
90987-02027 |
from US $33.62 |
||
|
85912
|
85912
90987-T2001
Relay, Power Outlet Socket
[10.2013 -] NCP150..D,G;NCP151,NSP150..5F..G;NCP150,NSP152..(R,V)..A;NCP151,NSP150,151..(D,R,V )..A;NCP151,NSP150,151..(GCC,IDN,PH,TAIW)..G (L); NSP152 G PACKAGE |
90987-T2001 |
— | ||
|
87299
|
87299
90987-02025 Relay[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN (J) |
90987-02025 |
from US $44.54 |
||
|
87299
|
87299
90987-T2002 Relay, HeadlampHEADLAMP [10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN (L) |
90987-T2002 |
US $51.66 |
||
|
89221B
|
89221B
89221-0D141
Computer, Body
[07.2016 - 09.2016] NSP151..GEN MEXICO SPEC |
89221-0D141 |
— | ||
| replacement | |||||
|
89221B
|
89221B
89221-0D142
Computer, Body
[07.2016 - 09.2016] NSP151..GEN MEXICO SPEC |
89221-0D142 |
— | ||
|
89221B
|
89221B
89221-0D142
Computer, Body
[10.2016 -] NSP152;NSP150..5F..G; NSP152 ECO PACKAGE; NSP152 ECO PACKAGE&WIRELESS DOOR LOCK-WITHOUT; NSP151..GEN MEXICO SPEC |
89221-0D142 |
— | ||
|
89221B
|
89221B
89221-0D170
Computer, Body
[03.2014 - 09.2016] NSP151..VN..G;NCP151,NSP150..LHD..G;NCP150,NSP151..GCC,GEN;NCP151,NSP150..(GCC,GEN )..(D,R); NCP15#,NSP150,151..5F..D LATIN AMERICA SPEC&J-LO PACKAGE(FOR LATIN AMERICA)&POWER DOOR LOCK-WITHOUT&WIRELES S DOOR LOCK-WITHOUT; NCP15#,NSP150 |
89221-0D170 |
— | ||
| replacement | |||||
|
89221B
|
89221B
89221-0D171
Computer, Body
[03.2014 - 09.2016] NSP151..VN..G;NCP151,NSP150..LHD..G;NCP150,NSP151..GCC,GEN;NCP151,NSP150..(GCC,GEN )..(D,R); NCP15#,NSP150,151..5F..D LATIN AMERICA SPEC&J-LO PACKAGE(FOR LATIN AMERICA)&POWER DOOR LOCK-WITHOUT&WIRELES S DOOR LOCK-WITHOUT; NCP15#,NSP150 |
89221-0D171 |
— | ||
|
89221B
|
89221B
89221-0D171
Computer, Body
[10.2016 -] NSP151..VN..G;NSP150..CVT..G;NSP151..GCC,GEN;NSP150..(GCC,GEN)..(D,R); NSP150,151..5F..D LATIN AMERICA SPEC&J-LO PACKAGE(FOR LATIN AMERICA)&POWER DOOR LOCK-WITHOUT&WIRELES S DOOR LOCK-WITHOUT; NSP150..D J-LO PACKAGE(FOR LATIN AMERICA)&POWER DO |
89221-0D171 |
— | ||
|
89420F
|
89420F
89420-52100
Sensor Assy, Vacuum
[05.2016 -] NSP150,151 |
89420-52100 |
— | ||
|
89650
|
89650
89650-0D690
Computer Assy, Power Steering
[07.2016 -] NSP150,151..LHD..(GCC,GEN,PH,VN) |
89650-0D690 |
— | ||
|
89730A
|
89730A
90987-T2001
Relay, Power Outlet Socket
[07.2016 -] NSP151..GEN MEXICO SPEC |
90987-T2001 |
— | ||
|
90119T0313
|
90119T0313
90119-T0313
New Genuine Part
|
90119-T0313 |
— | ||
|
90159T0003
|
90159T0003
90159-T0003 SCREW WWASHER |
90159-T0003 |
from US $0.44 |
||
|
90159T0037
|
90159T0037
90159-T0037
New Genuine Part
|
90159-T0037 |
— | ||
|
90178T0018
|
90178T0018
90178-T0018 NUT FLANGE |
90178-T0018 |
US $0.82 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
