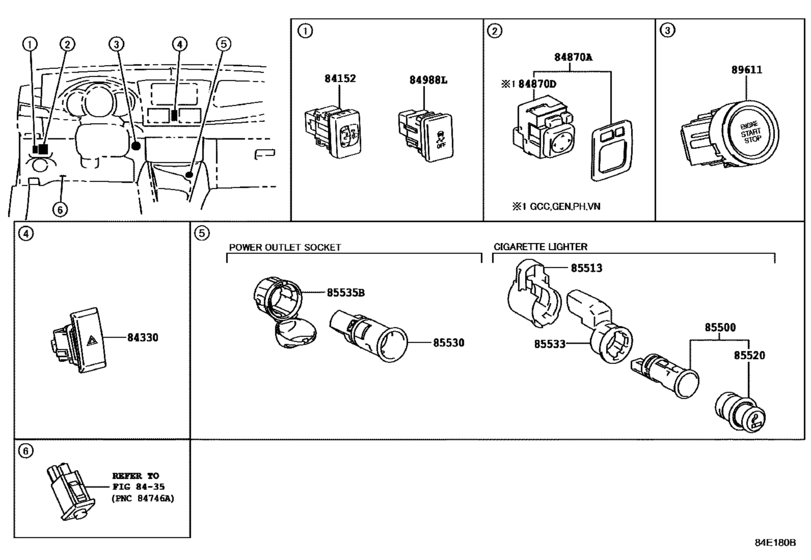

Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- )LHD) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP151
- ENGINE
- 2NRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- CATEGORY
- A
- From
- 07.2016
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84330
|
84330
84332-0D091
Switch Assy, Hazard Warning Signal
[03.2015 -] NCP15#,NSP15#..GCC,GEN,PH,TH,VN |
84332-0D091 |
— | ||
|
84870A
|
84870A
84870-0K010 Switch Assy, Outer MirrorOUTER MIRROR [10.2013 -] NCP15#,NSP15#..(GCC,GEN,PH,TH,VN)..(D,R); NSP152 ECO PACKAGE; NSP152 J PACKAGE |
84870-0K010 |
US $114.89 |
||
|
84870D
|
84870D
84872-06040
Switch Assy, Outer Mirror, No.2
[10.2013 -] NCP15#,NSP15#..(GCC,GEN,PH,TH,VN)..(D,R); NSP152 ECO PACKAGE; NSP152 J PACKAGE |
84872-06040 |
— | ||
|
84988L
|
84988L
84988-0D050
Switch, Vsc Off
[07.2016 -] NSP150,151..GCC; NSP151..5F..D ECUADOR SPEC |
84988-0D050 |
— | ||
|
85500
|
85500
85500-28080 Lighter Assy, Cigarette[03.2014 -] NCP15#,NSP150,151..GCC,GEN; NCP15#,NSP150,151..GEN..(D,R) LATIN AMERICA SPEC |
85500-28080 |
from US $28.84 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[03.2014 -] NCP15#,NSP150,151..GCC,GEN; NCP15#,NSP150,151..GEN..(D,R) LATIN AMERICA SPEC |
85513-28010 |
from US $2.65 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[03.2014 -] NCP15#,NSP150,151..GCC,GEN; NCP15#,NSP150,151..GEN..(D,R) LATIN AMERICA SPEC |
85520-28010 |
from US $17.90 |
||
|
85530
|
85530
85530-0K010
Socket Assy, Power Outlet, No.1
[03.2014 -] NCP151..GEN..(D,R);NCP150..4FC..GEN..R;NCP150,NSP150,151..(CVT,MTM)..GEN..(D,R) LATIN AMERICA SPEC |
85530-0K010 |
— | ||
|
85533
|
85533
85533-26010 Lens, Cigarette Lighter Indicator[03.2014 -] NCP15#,NSP150,151..GCC,GEN; NCP15#,NSP150,151..GEN..(D,R) LATIN AMERICA SPEC |
85533-26010 |
US $12.80 |
||
|
85535B
|
85535B
85535-0D021
Cover, Power Outlet Socket, No.1
[03.2014 -] NCP151..GEN..(D,R);NCP150..4FC..GEN..R;NCP150,NSP150,151..(CVT,MTM)..GEN..(D,R) LATIN AMERICA SPEC |
85535-0D021 |
— |
