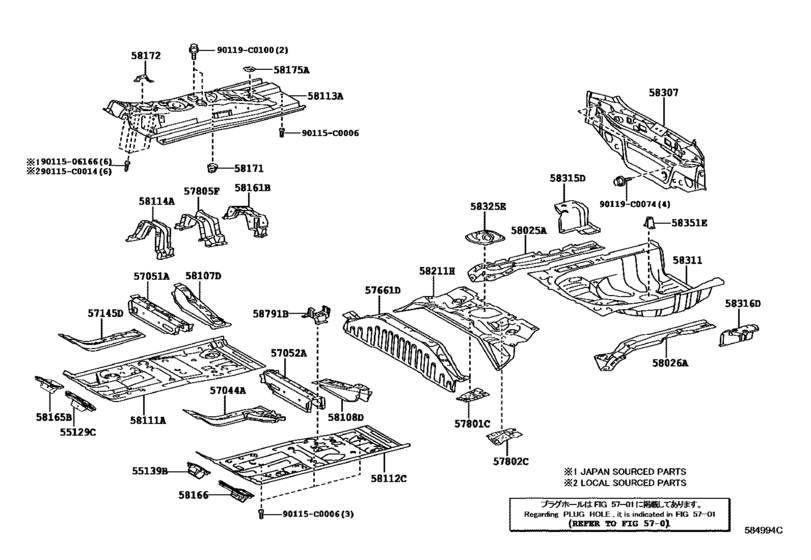

Floor Pan & Lower Back Panel ([12.2013 - 08.2016] (1312-1608)) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2013 - 2016
- Sales region
- General
- Frame
- NSP151
- ENGINE
- 7NRFE
- TRANSMISSION
- ATM
- From
- 12.2013
- To
- 08.2016
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55129C
|
55129C
55129-0D120
Cover, Dash Panel Hole
[12.2013 - 08.2016] NSP15# |
55129-0D120 |
— | ||
|
55139B
|
55139B
55139-0D040
Cover, Dash Panel Hole
[12.2013 - 08.2016] NSP15# |
55139-0D040 |
— | ||
|
57044A
|
57044A
57044-0D060
Reinforcement Sub-Assy, Front Side Member, Rear Lh
[12.2013 - 08.2016] NSP15# |
57044-0D060 |
— | ||
|
57051A
|
57051A
57051-0D020
Member Sub-Assy, Front Floor Cross, Rh
[12.2013 - 08.2016] NSP15# |
57051-0D020 |
— | ||
|
57052A
|
57052A
57052-0D020
Member Sub-Assy, Front Floor Cross, Lh
[12.2013 - 08.2016] NSP15# |
57052-0D020 |
— | ||
|
57145D
|
57145D
57145-0D061
Reinforcement, Front Side Member To Floor Pan
[12.2013 - 08.2016] NSP15# |
57145-0D061 |
— | ||
|
57661D
|
57661D
57661-0D090
Member, Rear Floor Cross, Front
[12.2013 - 08.2016] NSP15# |
57661-0D090 |
— | ||
|
57801C
|
57801C
57801-0D110
Reinforcement Sub-Assy, Belt Anchor, No.1 Rh
[12.2013 - 08.2016] NSP15# |
57801-0D110 |
— | ||
|
57802C
|
57802C
57802-0D100
Reinforcement Sub-Assy, Belt Anchor, No.1 Lh
[12.2013 - 08.2016] NSP15# |
57802-0D100 |
— | ||
|
57805F
|
57805F
57805-0D080
Reinforcement Sub-Assy, Belt Anchor, No.1
[12.2013 - 08.2016] NSP15# |
57805-0D080 |
— | ||
|
58025A
|
58025A
58025-0D050
Panel Sub-Assy, Floor Side Rail, Fr Rh
[12.2013 - 08.2016] NSP15# |
58025-0D050 |
— | ||
|
58026A
|
58026A
58026-0D050
Panel Sub-Assy, Floor Side Rail, Fr Lh
[12.2013 - 08.2016] NSP15# |
58026-0D050 |
— | ||
|
58107D
|
58107D
58107-0D020
Reinforce Sub-Assy, Front Cross To Front Panel, Rh
[12.2013 - 08.2016] NSP15# |
58107-0D020 |
— | ||
|
58108D
|
58108D
58108-0D020
Reinforce Sub-Assy, Front Cross To Front Panel, Lh
[12.2013 - 08.2016] NSP15# |
58108-0D020 |
— | ||
|
58111A
|
58111A
58111-0D120
Pan, Front Floor, Rh
[12.2013 - 08.2016] NSP15# |
58111-0D120 |
— | ||
|
58112C
|
58112C
58112-0D907
Pan, Front Floor, Lh
[12.2013 - 08.2016] NSP15# |
58112-0D907 |
— | ||
|
58113A
|
58113A
58113-0D909
Panel, Front Floor, Center
[12.2013 - 08.2016] NSP15# |
58113-0D909 |
— | ||
|
58114A
|
58114A
58114-0D080
Reinforcement, Front Floor Panel
[12.2013 - 08.2016] NSP15# |
58114-0D080 |
— | ||
|
58161B
|
58161B
58161-0D110
Reinforcement, Belt Anchor To Floor Pan
[12.2013 - 08.2016] NSP15# |
58161-0D110 |
— | ||
|
58165B
|
58165B
58165-0D030
Cover, Front Floor, Rh
[12.2013 - 08.2016] NSP15# |
58165-0D030 |
— | ||
|
58166
|
58166
58166-0D030
Cover, Front Floor, Lh
[12.2013 - 08.2016] NSP15# |
58166-0D030 |
— | ||
|
58171
|
58171
58171-0D040
Reinforcement, Parking Brake Base
[12.2013 - 08.2016] NSP15# |
58171-0D040 |
— | ||
|
58172
|
58172
58172-0D020
Bracket, Computer Mounting, No.3
[12.2013 - 08.2016] NSP15# |
58172-0D020 |
— | ||
|
58175A
|
58175A
58175-0D010
Reinforcement, Parking Brake Base, No.1
[12.2013 - 08.2016] NSP15# |
58175-0D010 |
— | ||
|
58211H
|
58211H
58211-0D120
Pan, Center Floor
[12.2013 - 08.2016] NSP15# |
58211-0D120 |
— | ||
|
58307
|
58307
58307-0D240
Panel Sub-Assy, Body Lower Back
[12.2013 - 08.2016] NSP15# |
58307-0D240 |
— | ||
|
58311
|
58311
58311-0D120
Pan, Rear Floor
[12.2013 - 08.2016] NSP15# |
58311-0D120 |
— | ||
|
58315D
|
58315D
58315-0D100
Extension, Rear Floor Pan, Rh
[12.2013 - 08.2016] NSP15# |
58315-0D100 |
— | ||
|
58316D
|
58316D
58316-0D100
Extension, Rear Floor Pan, Lh
[12.2013 - 08.2016] NSP15# |
58316-0D100 |
— | ||
|
58325E
|
58325E
58325-0D080
Cover, Rear Floor Service Hole
[12.2013 - 08.2016] NSP15# |
58325-0D080 |
— | ||
|
58351E
|
58351E
58351-0D090
Bracket, Spare Wheel Clamp
[12.2013 - 08.2016] NSP15# |
58351-0D090 |
— | ||
|
58791B
|
58791B
58791-0D080
Carrier, Jack
[12.2013 - 08.2016] NSP15# |
58791-0D080 |
— | ||
|
90115C0006
|
90115C0006
90115-C0006
Bolt, Weld(For Front Floor Pan, Lh)
|
90115-C0006 |
— | ||
|
90115C0014
|
90115C0014
90115-C0014
Bolt, Weld(For Front Floor Pan)
|
90115-C0014 |
— | ||
|
90119C0074
|
90119C0074
90119-C0074
New Genuine Part
|
90119-C0074 |
— | ||
|
90119C0100
|
90119C0100
90119-C0100
New Genuine Part
|
90119-C0100 |
— | ||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
