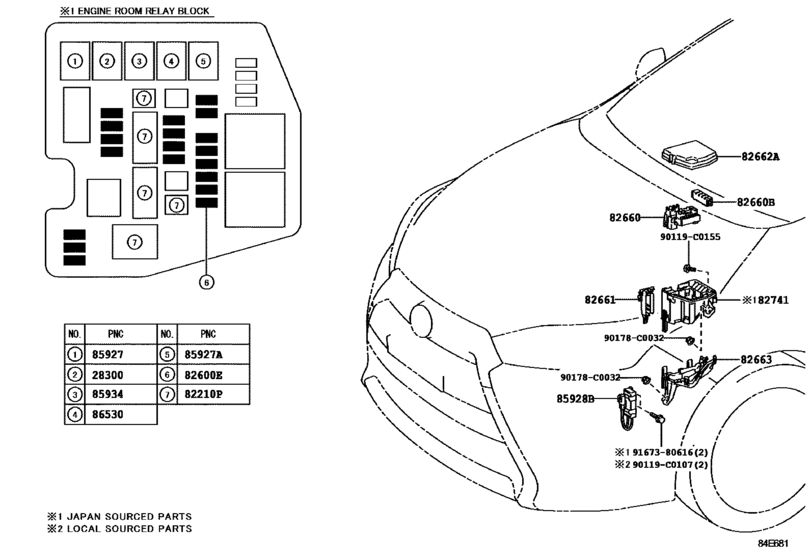

Switch & Relay & Computer ([12.2013 - 08.2016] ENGINE ROOM (1312-1608)) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2013 - 2016
- Sales region
- General
- Frame
- NSP151
- ENGINE
- 7NRFE
- TRANSMISSION
- ATM
- From
- 12.2013
- To
- 08.2016
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[07.2014 - 08.2016] 6NRFE,7NRFE..NSP15# |
28300-21020 |
from US $40.58 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[12.2013 - 06.2014] 6NRFE,7NRFE..NSP15# |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[12.2013 - 06.2014] 6NRFE,7NRFE..NSP15# |
28300-21020 |
from US $40.58 |
||
|
82210P
|
82210P
90982-08274 Fusible Link[12.2013 - 08.2016] NSP15# 120A,TERMINAL:MALE |
90982-08274 |
from US $7.68 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[12.2013 - 08.2016] NSP15# 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[12.2013 - 08.2016] NSP15# 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08302 Fusible Link[12.2013 - 08.2016] NSP15# 50A-30A-50A,FEMALE |
90982-08302 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08308 Fusible Link[12.2013 - 08.2016] NSP15# 40A-30A-30A,FEMALE,COLD AREA SPEC |
90982-08308 |
from US $6.56 |
||
|
82210P
|
82210P
90982-09020 Fusible Link[12.2013 - 08.2016] NSP15#..4FC 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[12.2013 - 08.2016] NSP15#..5F 7.5A,MINI FUSE; NSP15#..4FC 7.5A,MINI FUSE,COLD AREA SPEC |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[12.2013 - 08.2016] NSP15# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[12.2013 - 08.2016] NSP15# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[12.2013 - 08.2016] NSP15# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[12.2013 - 08.2016] NSP15# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[12.2013 - 08.2016] NSP15# 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82660
|
82660
82660-0D040
Block Assy, Relay, Engine Room
[12.2013 - 08.2016] NSP15# |
82660-0D040 |
— | ||
|
82660B
|
82660B
82660-0D050
Block Assy, Relay
[12.2013 - 08.2016] NSP15# |
82660-0D050 |
— | ||
|
82661
|
82661
82661-52050
Cover, Relay Block, No.1
[12.2013 - 08.2016] NSP15# |
82661-52050 |
— | ||
|
82662A
|
82662A
82662-0D240
Cover, Relay Block, Upper, No.1
[12.2013 - 08.2016] NSP15# |
82662-0D240 |
— | ||
|
82663
|
82663
82663-0D080
Cover, Relay Block, Lower
[12.2013 - 08.2016] NSP15# |
82663-0D080 |
— | ||
|
82741
|
82741
82741-0D090
Block, Engine Room Relay
[12.2013 - 08.2016] NSP15# |
82741-0D090 |
— | ||
|
85927
|
85927
90987-02027 Relay[12.2013 - 08.2016] NSP15# MARK 90987-02027 |
90987-02027 |
from US $44.54 |
||
|
85927
|
85927
90987-T2005
Relay, Water Pump
[12.2013 - 08.2016] NSP15# MARK 90987-T2005 |
90987-T2005 |
— | ||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[12.2013 - 08.2016] NSP15# MARK 90987-04004 |
90987-04004 |
US $42.71 |
||
|
85927A
|
85927A
90987-T4001
Relay Assy, Starter
[12.2013 - 08.2016] NSP15# MARK 90987-T4001 |
90987-T4001 |
— | ||
|
85928B
|
85928B
85928-52030
Resistor, Cooling Fan
[12.2013 - 02.2015] NSP15# |
85928-52030 |
— | ||
| replacement | |||||
|
85928B
|
85928B
85928-52032 Resistor, Cooling Fan[12.2013 - 02.2015] NSP15# |
85928-52032 |
from US $71.90 |
||
|
85928B
|
85928B
85928-52032 Resistor, Cooling Fan[03.2015 - 08.2016] NSP15# |
85928-52032 |
from US $71.90 |
||
|
85934
|
85934
90987-02028 Relay, Water Pump[12.2013 - 08.2016] NSP15# |
90987-02028 |
from US $44.54 |
||
|
86530
|
86530
90987-T2005
Relay, Water Pump
[12.2013 - 08.2016] NSP15# |
90987-T2005 |
— | ||
|
90119C0107
|
90119C0107
90119-C0107
New Genuine Part
|
90119-C0107 |
— | ||
|
90119C0155
|
90119C0155
90119-C0155
New Genuine Part
|
90119-C0155 |
— | ||
|
90178C0032
|
90178C0032
90178-C0032
Nut, Wire Adjusting, No.1
|
90178-C0032 |
— | ||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
