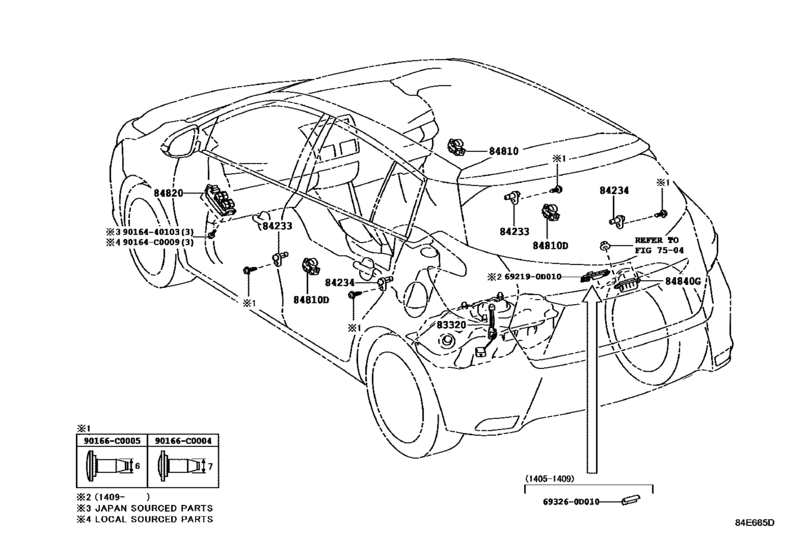

Switch & Relay & Computer ([12.2013 - ] DOOR,ROOF,FLOOR & LUGGAGE (1312- )5D) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2013 - 2016
- Sales region
- General
- Frame
- NSP151
- ENGINE
- 7NRFE
- TRANSMISSION
- ATM
- From
- 12.2013
- To
- 08.2016
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-0D140
Gage Assy, Fuel Sender
[12.2013 - 08.2016] NSP15# |
83320-0D140 |
— | ||
|
84233
|
84233
84231-0D110
Switch Assy, Courtesy Lamp (For Front Door)
[12.2013 - 08.2016] NSP15# |
84231-0D110 |
— | ||
|
84234
|
84234
84231-0D110
Switch Assy, Courtesy Lamp (For Front Door)
[12.2013 - 08.2016] NSP15# |
84231-0D110 |
— | ||
|
84810
|
84810
84810-06060
Switch Assy, Power Window Regulator
[12.2013 - 08.2016] NSP15# |
84810-06060 |
— | ||
|
84810D
|
84810D
84810-06060
Switch Assy, Power Window Regulator
[12.2013 - 08.2016] NSP15# |
84810-06060 |
— | ||
|
84820
|
84820
84820-0D360
Master Switch Assy, Power Window Regulator
[12.2013 - 08.2016] NSP15# |
84820-0D360 |
— | ||
|
84840G
|
84840G
84840-0D070
Switch Assy, Back Door Opener
[12.2013 - 08.2016] NSP151..G |
84840-0D070 |
— | ||
|
90164C0009
|
90164C0009
90164-C0009
New Genuine Part
|
90164-C0009 |
— | ||
|
90166C0004
|
90166C0004
90166-C0004
New Genuine Part
|
90166-C0004 |
— | ||
|
90166C0005
|
90166C0005
90166-C0005
New Genuine Part
|
90166-C0005 |
— | ||
|
692190D010
|
692190D010
69219-0D010
Seal, Back Door Outside Handle
|
69219-0D010 |
— | ||
|
693260D010
|
693260D010
69326-0D010
Plate, Back Door Outside Handle
|
69326-0D010 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
