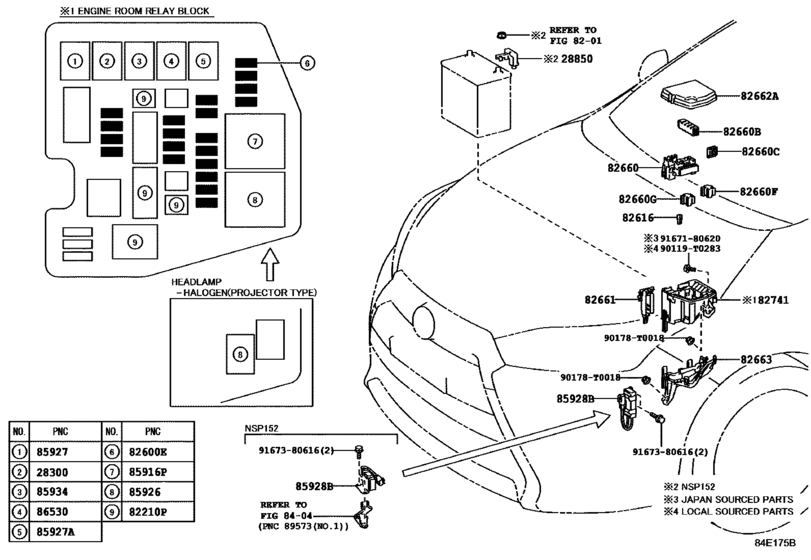

Switch & Relay & Computer ([10.2013 - ] ENGINE ROOM (1310- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP151
- ENGINE
- 2NRFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- CATEGORY
- C
- From
- 10.2016
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Model Mark
- R
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-0L011
Relay Assy, Starter
[05.2016 -] 1N#,2N#,3NRFE..NCP15#,NSP15# |
28300-0L011 |
— | ||
|
82210P
|
82210P
90982-08274 Fusible Link[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 120A,TERMINAL:MALE |
90982-08274 |
from US $7.68 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08302 Fusible Link[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 50A-30A-50A,FEMALE |
90982-08302 |
US $6.24 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[03.2014 -] NCP150..C;NSP150,151 |
82616-58010 |
from US $2.40 |
||
|
82660
|
82660
82660-0D040
Block Assy, Relay, Engine Room
[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
82660-0D040 |
— | ||
|
82660B
|
82660B
82660-0D050
Block Assy, Relay
[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
82660-0D050 |
— | ||
|
82660C
|
82660C
82660-0D060
Block Assy, Relay
[10.2013 -] NSP151..R..C;NCP151,NSP150..RHD;NCP150,NSP152..IDN,MA,PH,TH;NSP151..(IDN,PH,TAIW,V N)..(G,V);NCP15#,NSP150..LHD..(GEN,TAIW,VN)..(G,V) |
82660-0D060 |
— | ||
|
82660F
|
82660F
82660-0H070 Block Assy, Relay[10.2013 -] NSP151..R..C;NCP151,NSP150..RHD;NCP150,NSP152..IDN,MA,PH,TH;NSP151..(IDN,PH,TAIW,V N)..(G,V);NCP15#,NSP150..LHD..(GEN,TAIW,VN)..(G,V) |
82660-0H070 |
US $6.99 |
||
|
82660G
|
82660G
82660-26270 Block Assy, Relay, Engine Room[10.2013 -] NCP150,NSP151..R..C;NCP151,NSP150,152..RHD |
82660-26270 |
US $8.48 |
||
|
82661
|
82661
82661-52050
Cover, Relay Block, No.1
[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
82661-52050 |
— | ||
|
82662A
|
82662A
82662-0D650
Cover, Relay Block, Upper, No.1
[07.2016 -] NSP151..R..C;NSP150,152..RHD; NSP151..GEN..R LATIN AMERICA SPEC&ARGENTINA SPEC |
82662-0D650 |
— | ||
|
82663
|
82663
82663-0D090
Cover, Relay Block, Lower
[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
82663-0D090 |
— | ||
|
82741
|
82741
82741-0D100 Block, Engine Room Relay[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
82741-0D100 |
US $47.48 |
||
|
85916P
|
85916P
90987-T2002 Relay, HeadlampHEADLAMP [10.2013 -] NCP151,NSP150..RHD;NCP150,NSP151,152..IDN,MA,PH,TH;NCP151,NSP150,151..LHD..(GEN,VN )..G |
90987-T2002 |
US $51.66 |
||
|
85926
|
85926
90987-T2003
Relay Assy (For Heater Blower Motor)
[10.2013 -] NCP150,NSP151..R..C;NCP151,NSP150,152..RHD |
90987-T2003 |
— | ||
|
85927
|
85927
90987-02027 Relay[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN (J) |
90987-02027 |
from US $44.54 |
||
|
85927
|
85927
90987-T2001
Relay, Power Outlet Socket
[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN (L) |
90987-T2001 |
— | ||
|
85927A
|
85927A
90080-87009
Relay, Cooling Fan, No.2
[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN (L) |
90080-87009 |
— | ||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN (J) |
90987-04004 |
from US $42.71 |
||
|
85928B
|
85928B
85928-0D020
Resistor, Cooling Fan
[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN |
85928-0D020 |
— | ||
|
85934
|
85934
90987-02028 Relay, Water Pump[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
90987-02028 |
from US $44.54 |
||
|
86530
|
86530
90987-T2001
Relay, Power Outlet Socket
[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN |
90987-T2001 |
— | ||
|
90119T0283
|
90119T0283
90119-T0283
New Genuine Part
|
90119-T0283 |
— | ||
|
90178T0018
|
90178T0018
90178-T0018
NUT FLANGE
|
90178-T0018 |
— | ||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $0.96 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
