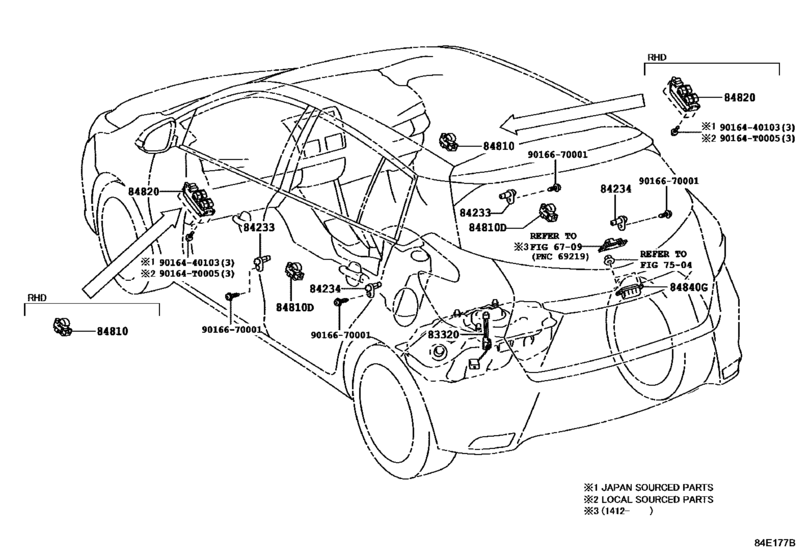

Switch & Relay & Computer ([10.2013 - ] DOOR,ROOF,FLOOR & BACK DOOR (1310- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP151
- ENGINE
- 2NRFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- CATEGORY
- C
- From
- 10.2016
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Model Mark
- R
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-0D150 Gage Assy, Fuel Sender[10.2013 -] NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN |
83320-0D150 |
US $51.21 |
||
|
84233
|
84233
84231-0D080
Switch Assy, Courtesy Lamp (For Front Door)
[03.2014 -] NCP150,NSP151..C |
84231-0D080 |
— | ||
|
84234
|
84234
84231-0D080
Switch Assy, Courtesy Lamp (For Front Door)
[03.2014 -] NCP150,NSP151..C |
84231-0D080 |
— | ||
|
84810
|
84810
84810-0D120
Switch Assy, Power Window Regulator
[03.2014 -] NCP150,NSP151..C |
84810-0D120 |
— | ||
|
84810D
|
84810D
84810-0D120
Switch Assy, Power Window Regulator
[03.2014 -] NCP150,NSP151..C |
84810-0D120 |
— | ||
|
84820
|
84820
84820-0D400
Master Switch Assy, Power Window Regulator
[03.2014 -] NCP150,NSP151..C |
84820-0D400 |
— | ||
|
84840G
|
84840G
84840-28030 Switch Assy, Luggage Compartment Door Opening[10.2013 -] NCP150..V..A;NSP151..VN..R;NSP151..(G,R)..C;NCP151,NSP150..D,R;NCP151,NSP150..GCC. .G;NSP151..GCC,GEN,PH,TAIW;NCP150,NSP152..(GCC,GEN,IDN,PH,TAIW,TH)..(D,G,R) |
84840-28030 |
from US $38.91 |
||
|
90164T0005
|
90164T0005
90164-T0005
New Genuine Part
|
90164-T0005 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.84 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
