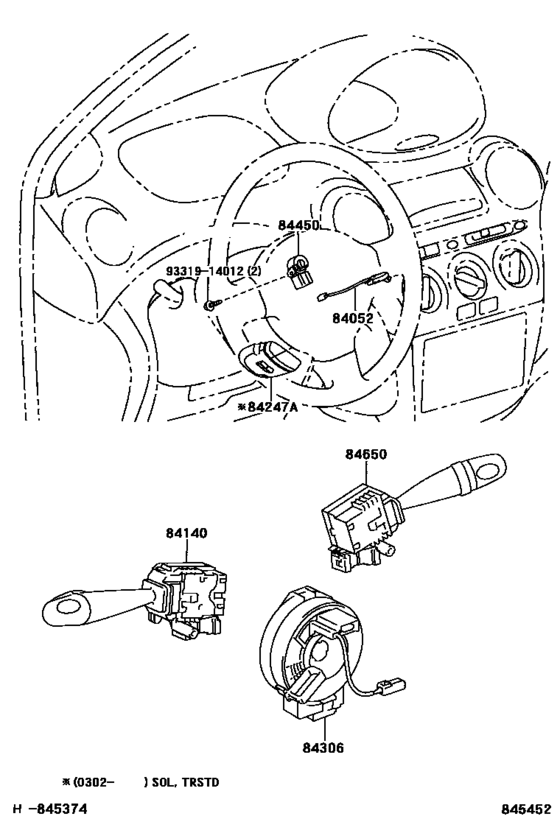

Switch & Relay & Computer ([01.2001 - ] IGNITION & COMBINATION SWITCH (0101- )FRP..LHD) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2001 - 2005
- Sales region
- U.S.A.
- Frame
- SCP10
- grade
- TRSTD
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- PRODUCT
- FRP
- From
- 01.2001
- To
- 11.2005
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-05020 Switch Assy, Un-Lock Warning[01.2001 - 02.2003] SCP1# |
84052-05020 |
US $34.51 |
||
|
84140
|
84140
84140-0D010
Switch Assy, Headlamp Dimmer
[01.2001 - 02.2003] SCP1# |
84140-0D010 |
— | ||
|
84140
|
84140
84140-0D070
Switch Assy, Headlamp Dimmer
[02.2003 -] NLP10,SCP1#..FRP..(SOL,TRSTD) W(FRONT FOG LAMP & DRIVING LAMP) |
84140-0D070 |
— | ||
|
84247A
|
84247A
84247-0D010-B0
Switch, Steering Pad, Lh
[02.2003 -] NLP10,SCP1#..FRP..SOL DK.GRAY,TRIM10,11; SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19; SCP10..FRP..RHD..TRSTD..5FS DK.GRAY,TRIM10,11,17 |
84247-0D010-B0 |
— | ||
|
84306
|
84306
84306-0D011
Cable Sub-Assy, Spiral
[01.2001 - 02.2003] SCP1# |
84306-0D011 |
— | ||
|
84306
|
84306
84306-0D012
Cable Sub-Assy, Spiral
[02.2003 -] NLP10,SCP1#..FRP |
84306-0D012 |
— | ||
|
84306
|
84306
84306-0D050
Cable Sub-Assy, Spiral
[02.2003 -] NLP10,SCP1#..FRP..(SOL,TRSTD) W(STEERING AUDIO SWITCH) |
84306-0D050 |
— | ||
|
84450
|
84450
84450-0D010
Switch Assy, Ignition Or Starter
[01.2001 - 02.2003] SCP1# |
84450-0D010 |
— | ||
|
84650
|
84650
84652-0D010
Switch Assy, Windshield Wiper
[01.2001 - 02.2003] SCP1# |
84652-0D010 |
— | ||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $0.83 |
