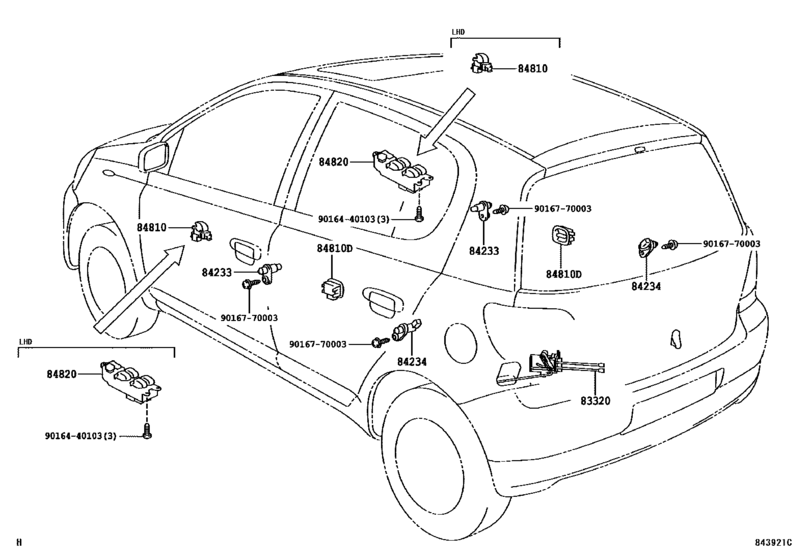

Switch & Relay & Computer ([01.2001 - ] DOOR,ROOF,FLOOR & LUGGAGE (0101- )FRP) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2001 - 2005
- Sales region
- U.S.A.
- Frame
- SCP10
- grade
- TRSTD
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- PRODUCT
- FRP
- From
- 01.2001
- To
- 11.2005
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-0D010
Gage Assy, Fuel Sender
[02.2003 -] SCP1#..FRP |
83320-0D010 |
— | ||
|
84233
|
84233
84231-0D010
Switch Assy, Courtesy Lamp (For Front Door)
[01.2001 - 02.2003] SCP1# (L) |
84231-0D010 |
— | ||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[01.2001 - 02.2003] SCP1# (J) |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-05020
Switch Assy, Courtesy Lamp (For Rear Door)
[01.2001 - 02.2003] SCP1#..5D |
84231-05020 |
— | ||
|
84810
|
84810
84810-0D010
Switch Assy, Power Window Regulator
[02.2003 -] NLP10,SCP1#..FRP..(SOL,TRSTD) |
84810-0D010 |
— | ||
|
84810
|
84810
84810-12080 Switch Assy, Power Window Regulator[01.2001 - 02.2003] SCP1# |
84810-12080 |
from US $31.35 |
||
|
84810D
|
84810D
84810-52010-B0 Switch Assy, Power Window Regulator, Rear[01.2001 - 02.2003] SCP1#..LHD..5D SHADOW GRAY,TRIM1# |
84810-52010-B0 |
US $47.90 |
||
| replacement | |||||
|
84810D
|
84810D
84810-52040-B0 Switch Assy, Power Window Regulator, Rear[01.2001 - 02.2003] SCP1#..LHD..5D SHADOW GRAY,TRIM1# |
84810-52040-B0 |
US $50.32 |
||
|
84810D
|
84810D
84810-52010-B4 Switch Assy, Power Window Regulator, Rear[02.2003 -] NLP10,SCP1#..FRP..LHD..5D..SOL DK.GRAY,TRIM10,11; SCP10..FRP..LHD..5D..TRSTD..5F DK.GRAY,TRIM10,11,17; SCP10..FRP..LHD..5D..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
84810-52010-B4 |
from US $47.90 |
||
| replacement | |||||
|
84810D
|
84810D
84810-52040-B0 Switch Assy, Power Window Regulator, Rear[02.2003 -] NLP10,SCP1#..FRP..LHD..5D..SOL DK.GRAY,TRIM10,11; SCP10..FRP..LHD..5D..TRSTD..5F DK.GRAY,TRIM10,11,17; SCP10..FRP..LHD..5D..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
84810-52040-B0 |
US $50.32 |
||
|
84810D
|
84810D
84810-52010-H0 Switch Assy, Power Window Regulator, Rear[01.2001 - 02.2003] SCP1#..LHD..5D FRENCH TURQUOISE,TRIM7# |
84810-52010-H0 |
US $47.90 |
||
| replacement | |||||
|
84810D
|
84810D
84810-52010-B1 Switch Assy, Power Window Regulator, Rear (Gray)[01.2001 - 02.2003] SCP1#..LHD..5D FRENCH TURQUOISE,TRIM7# |
84810-52010-B1 |
US $47.76 |
||
|
84820
|
84820
84820-0D040
Master Switch Assy, Power Window Regulator
[02.2003 -] NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W(POWER WINDOW = FRONT ONLY) |
84820-0D040 |
— | ||
|
84820
|
84820
84820-0D050
Master Switch Assy, Power Window Regulator
[02.2003 -] NLP10,SCP1#..FRP..LHD..5D W(POWER WINDOW = FRONT & REAR) |
84820-0D050 |
— | ||
|
84820
|
84820
84820-10100
Master Switch Assy, Power Window Regulator
[01.2001 - 02.2003] SCP10..LHD;SCP12..LHD..LUNA W(POWER WINDOW---FRONT ONLY) |
84820-10100 |
— | ||
|
84820
|
84820
84820-60090 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [01.2001 - 02.2003] SCP1#..LHD..5D W(POWER WINDOW---FRONT & REAR) |
84820-60090 |
from US $346.53 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016770003
|
9016770003
90167-70003 New Genuine Part |
90167-70003 |
US $0.73 |
||
