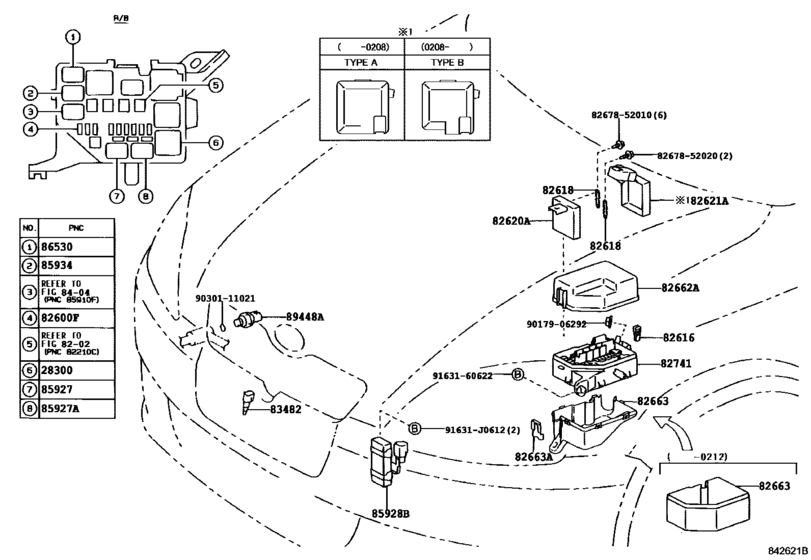

Switch & Relay & Computer ([03.1999 - ] ENGINE ROOM (9903- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- SCP10
- ENGINE
- 1SZFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 03.1999
- To
- 08.2005
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[03.1999 - 12.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
28300-10020 |
from US $51.97 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[03.1999 - 12.2002] NCP1#,SCP10 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[03.1999 - 12.2002] NCP1#,SCP10 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[03.1999 - 12.2002] NCP1#,SCP10 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[03.1999 - 12.2002] NCP1#,SCP10 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[03.1999 - 12.2002] NCP13,SCP10 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[03.1999 - 12.2002] NCP1#,SCP10 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[03.1999 - 12.2002] NCP1#,SCP10 |
82616-20010 |
from US $2.46 |
||
|
82618
|
82618
82618-52010 Fuse, Fuse Block[03.1999 - 12.2002] NCP1#,SCP10 60A |
82618-52010 |
from US $3.08 |
||
|
82618
|
82618
82618-52020 Fuse, Fuse Block[03.1999 - 12.2002] NCP10,SCP10 100A |
82618-52020 |
from US $3.33 |
||
|
82618
|
82618
82618-52030 Fuse, Fuse Block[03.1999 - 12.2002] NCP13,SCP10 120A |
82618-52030 |
from US $3.32 |
||
|
82620A
|
82620A
82620-52010
Block Assy, Fusible Link
[03.1999 - 08.2002] SCP10 W(ABS) |
82620-52010 |
— | ||
| replacement | |||||
|
82620A
|
82620A
82620-52011 Block Assy, Fusible Link[03.1999 - 08.2002] SCP10 W(ABS) |
82620-52011 |
from US $35.14 |
||
|
82620A
|
82620A
82620-52011 Block Assy, Fusible Link[08.2002 - 12.2002] NCP1#,SCP10 |
82620-52011 |
from US $35.14 |
||
|
82621A
|
82621A
82621-52010 Cover, Fusible Link[03.1999 - 08.2002] SCP10 W(ABS),TYPE A:REFER ILLUST. |
82621-52010 |
from US $14.70 |
||
|
82621A
|
82621A
82621-52011 Cover, Fusible Link[08.2002 - 12.2002] NCP10,SCP10 W(ABS),TYPE B:REFER ILLUST. |
82621-52011 |
US $19.76 |
||
|
82621A
|
82621A
82621-52020 Cover, Fusible Link[03.1999 - 08.2002] NCP13,SCP10 TYPE A:REFER ILLUST. |
82621-52020 |
US $19.76 |
||
|
82621A
|
82621A
82621-52021 Cover, Fusible Link[08.2002 - 12.2002] NCP13,SCP10 TYPE B:REFER ILLUST. |
82621-52021 |
US $20.27 |
||
|
82662A
|
82662A
82662-52010 Cover, Relay Block, Upper, No.1[03.1999 - 12.2002] SCP10 |
82662-52010 |
US $27.66 |
||
|
82663
|
82663
82663-52010 Cover, Relay Block, Lower[03.1999 - 12.2002] NCP1#,SCP10 |
82663-52010 |
from US $19.07 |
||
|
82663
|
82663
82663-52040 Cover, Relay Block, Lower[12.2002 -] NCP1#,SCP10 |
82663-52040 |
US $23.62 |
||
|
82663A
|
82663A
82663-52050 Cover, Relay Block, Lower, No.2[12.2002 -] NCP1#,SCP10 |
82663-52050 |
US $1.89 |
||
|
82741
|
82741
82741-52010 Block, Engine Room Relay[03.1999 - 12.2002] NCP1#,SCP10 |
82741-52010 |
US $78.03 |
||
|
85927
|
85927
90987-02012 Relay, Ignition, No.1[03.1999 - 12.2001] NCP1#,SCP10 |
90987-02012 |
from US $27.11 |
||
|
85927
|
85927
90987-02022 Relay, Starter Cut[12.2001 - 12.2002] NCP1#,SCP10 |
90987-02022 |
from US $54 |
||
|
85927
|
85927
90987-02027 Relay[12.2002 -] NCP1#,SCP10 |
90987-02027 |
from US $44.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[03.1999 - 12.2002] NCP1#,SCP10 |
90987-04004 |
US $42.71 |
||
|
85928B
|
85928B
85928-52010 Resistor, Cooling Fan[03.1999 - 12.2002] NCP1#,SCP10 |
85928-52010 |
US $70.18 |
||
| replacement | |||||
|
85928B
|
85928B
85928-52011 Resistor, Cooling Fan[03.1999 - 12.2002] NCP1#,SCP10 |
85928-52011 |
US $92.40 |
||
|
85934
|
85934
90987-02012 Relay, Ignition, No.1[03.1999 - 03.2001] NCP1#,SCP10 W(MANUAL AIR CONDITIONER(DOP)) |
90987-02012 |
from US $27.11 |
||
|
85934
|
85934
90987-02022 Relay, Starter Cut[01.2001 - 03.2001] SCP10 |
90987-02022 |
from US $54 |
||
|
85934
|
85934
90987-02028 Relay, Water Pump[08.2003 -] NCP1#,SCP10 |
90987-02028 |
from US $44.54 |
||
|
86530
|
86530
90987-02012 Relay, Ignition, No.1[03.1999 - 12.2001] NCP1#,SCP10 |
90987-02012 |
from US $27.11 |
||
|
86530
|
86530
90987-02022 Relay, Starter Cut[12.2001 - 12.2002] NCP1#,SCP10 |
90987-02022 |
from US $54 |
||
|
86530
|
86530
90987-02027 Relay[12.2002 -] NCP1#,SCP10 |
90987-02027 |
from US $44.54 |
||
|
89448A
|
89448A
89448-51010 Switch, Power Steering Oil Pressure[03.1999 - 12.2002] NCP1#,SCP10 |
89448-51010 |
US $168.48 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
8267852010
|
8267852010
82678-52010 Cover, Junction Block, Upper No.3 |
82678-52010 |
US $2.48 |
||
|
8267852020
|
8267852020
82678-52020 Cover, Junction Block, Upper No.3 |
82678-52020 |
US $2.77 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.60 |
||
|
9030111021
|
9030111021
90301-11021 RING O |
90301-11021 |
from US $2.24 |
||
|
9163160622
|
9163160622
91631-60622 Screw |
91631-60622 |
US $1.12 |
||
