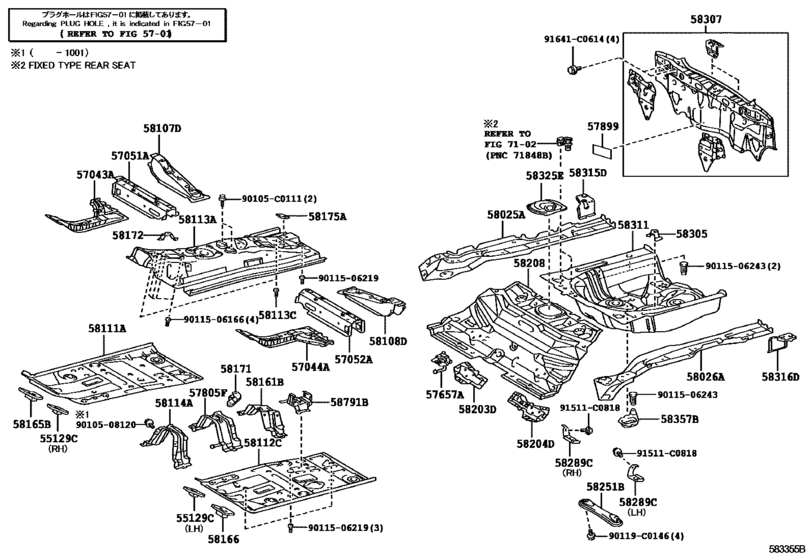

Floor Pan & Lower Back Panel ([05.2008 - ] (0805- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2008 - 2013
- Sales region
- General
- Frame
- ZSP91
- grade
- STD
- ENGINE
- 1ZRFE
- TRANSMISSION
- ATM
- From
- 05.2008
- To
- 08.2013
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55129C
|
55129C
55129-0D120
Cover, Dash Panel Hole
[05.2008 -] NCP90,ZSP91..STD RH |
55129-0D120 |
— | ||
|
55129C
|
55129C
55139-0D040
Cover, Dash Panel Hole
[05.2008 -] NCP90,ZSP91..STD LH |
55139-0D040 |
— | ||
|
57043A
|
57043A
57043-0D030
Reinforcement Sub-Assy, Front Side Member, Rear Rh
[05.2008 -] NCP90,ZSP91..STD |
57043-0D030 |
— | ||
|
57044A
|
57044A
57044-0D060
Reinforcement Sub-Assy, Front Side Member, Rear Lh
[05.2008 -] NCP90,ZSP91..STD |
57044-0D060 |
— | ||
|
57051A
|
57051A
57051-0D020
Member Sub-Assy, Front Floor Cross, Rh
[05.2008 -] NCP90,ZSP91..STD |
57051-0D020 |
— | ||
|
57052A
|
57052A
57052-0D020
Member Sub-Assy, Front Floor Cross, Lh
[05.2008 -] NCP90,ZSP91..STD |
57052-0D020 |
— | ||
|
57657A
|
57657A
51904-0D020
Bracket, Exhaust Pipe Mounting, No.2
[05.2008 -] NCP90,ZSP91..STD |
51904-0D020 |
— | ||
|
57805F
|
57805F
57805-0D080
Reinforcement Sub-Assy, Belt Anchor, No.1
[05.2008 -] NCP90,ZSP91..STD |
57805-0D080 |
— | ||
|
57899
|
57899
57899-0D010
Seal, Rear Floor, Rear
[05.2008 -] NCP90,ZSP91..STD |
57899-0D010 |
— | ||
|
58025A
|
58025A
58025-0D010
Panel Sub-Assy, Floor Side Rail, Fr Rh
[05.2008 -] NCP90,ZSP91..STD |
58025-0D010 |
— | ||
|
58026A
|
58026A
58026-0D010
Panel Sub-Assy, Floor Side Rail, Fr Lh
[05.2008 -] NCP90,ZSP91..STD |
58026-0D010 |
— | ||
|
58107D
|
58107D
58107-0D020
Reinforce Sub-Assy, Front Cross To Front Panel, Rh
[05.2008 -] NCP90,ZSP91..STD |
58107-0D020 |
— | ||
|
58108D
|
58108D
58108-0D020
Reinforce Sub-Assy, Front Cross To Front Panel, Lh
[05.2008 -] NCP90,ZSP91..STD |
58108-0D020 |
— | ||
|
58111A
|
58111A
58111-0D070
Pan, Front Floor, Rh
[05.2008 -] NCP90,ZSP91..STD |
58111-0D070 |
— | ||
|
58112C
|
58112C
58112-0D904
Pan, Front Floor, Lh
[05.2008 -] NCP90,ZSP91..STD |
58112-0D904 |
— | ||
|
58113A
|
58113A
58113-0D905
Panel, Front Floor, Center
[05.2008 -] NCP90,ZSP91..STD |
58113-0D905 |
— | ||
|
58113C
|
58113C
90115-06243 Bolt, Weld(For Front Floor Panel, Center)[05.2008 -] NCP90,ZSP91..STD |
90115-06243 |
US $1.28 |
||
|
58114A
|
58114A
58114-0D080
Reinforcement, Front Floor Panel
[05.2008 -] NCP90,ZSP91..STD |
58114-0D080 |
— | ||
|
58161B
|
58161B
58161-0D070
Reinforcement, Belt Anchor To Floor Pan
[05.2008 -] NCP90,ZSP91..STD |
58161-0D070 |
— | ||
|
58165B
|
58165B
58165-0D030
Cover, Front Floor, Rh
[05.2008 -] NCP90,ZSP91..STD |
58165-0D030 |
— | ||
|
58166
|
58166
58166-0D030
Cover, Front Floor, Lh
[05.2008 -] NCP90,ZSP91..STD |
58166-0D030 |
— | ||
|
58171
|
58171
58171-0D040
Reinforcement, Parking Brake Base
[05.2008 -] NCP90,ZSP91..STD |
58171-0D040 |
— | ||
|
58172
|
58172
58172-0D020
Bracket, Computer Mounting, No.3
[05.2008 -] NCP90,ZSP91..STD |
58172-0D020 |
— | ||
|
58175A
|
58175A
58175-0D010
Reinforcement, Parking Brake Base, No.1
[05.2008 -] NCP90,ZSP91..STD |
58175-0D010 |
— | ||
|
58203D
|
58203D
58203-0D020
Bracket Sub-Assy, Rear Seat Hinge, Outer Rh
[05.2008 -] NCP90,ZSP91..STD |
58203-0D020 |
— | ||
|
58204D
|
58204D
58204-0D020
Bracket Sub-Assy, Rear Seat Hinge, Outer Lh
[05.2008 -] NCP90,ZSP91..STD |
58204-0D020 |
— | ||
|
58208
|
58208
58211-0D060
Pan, Center Floor
[05.2008 -] NCP90,ZSP91..STD |
58211-0D060 |
— | ||
|
58251B
|
58251B
58251-0D050
Brace, Floor Panel, Front
[05.2008 -] NCP90,ZSP91..STD |
58251-0D050 |
— | ||
|
58289C
|
58289C
58289-0D060
Bracket, Floor Brake Hose, Rear
[05.2008 -] NCP90,ZSP91..STD RH |
58289-0D060 |
— | ||
|
58289C
|
58289C
58299-0D060
Bracket, Floor Brake Hose, Rear
[05.2008 -] NCP90,ZSP91..STD LH |
58299-0D060 |
— | ||
|
58305
|
58305
58351-0D050
Bracket Sub-Assy, Spare Wheel Clamp
[05.2008 -] NCP90,ZSP91..STD |
58351-0D050 |
— | ||
|
58307
|
58307
58307-0D090
Panel Sub-Assy, Body Lower Back
[05.2008 - 08.2013] NCP90,ZSP91 |
58307-0D090 |
— | ||
|
58311
|
58311
58311-0D060
Pan, Rear Floor
[05.2008 -] NCP90,ZSP91..STD |
58311-0D060 |
— | ||
|
58315D
|
58315D
58315-0D050
Extension, Rear Floor Pan, Rh
[05.2008 -] NCP90,ZSP91..STD |
58315-0D050 |
— | ||
|
58316D
|
58316D
58316-0D050
Extension, Rear Floor Pan, Lh
[05.2008 -] NCP90,ZSP91..STD |
58316-0D050 |
— | ||
|
58325E
|
58325E
58325-0D040
Cover, Rear Floor Service Hole
[05.2008 -] NCP90,ZSP91..STD |
58325-0D040 |
— | ||
|
58357B
|
58357B
58357-0D040
Bracket, Actuator Cover, No.3 Rh
[05.2008 -] NCP90,ZSP91..STD |
58357-0D040 |
— | ||
|
58791B
|
58791B
58791-0D080
Carrier, Jack
[05.2008 -] NCP90,ZSP91..STD |
58791-0D080 |
— | ||
|
90105C0111
|
90105C0111
90105-C0111
New Genuine Part
|
90105-C0111 |
— | ||
|
90119C0146
|
90119C0146
90119-C0146
New Genuine Part
|
90119-C0146 |
— | ||
|
91511C0818
|
91511C0818
91511-C0818 BOLTFLANGE |
91511-C0818 |
from US $1.07 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.72 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
